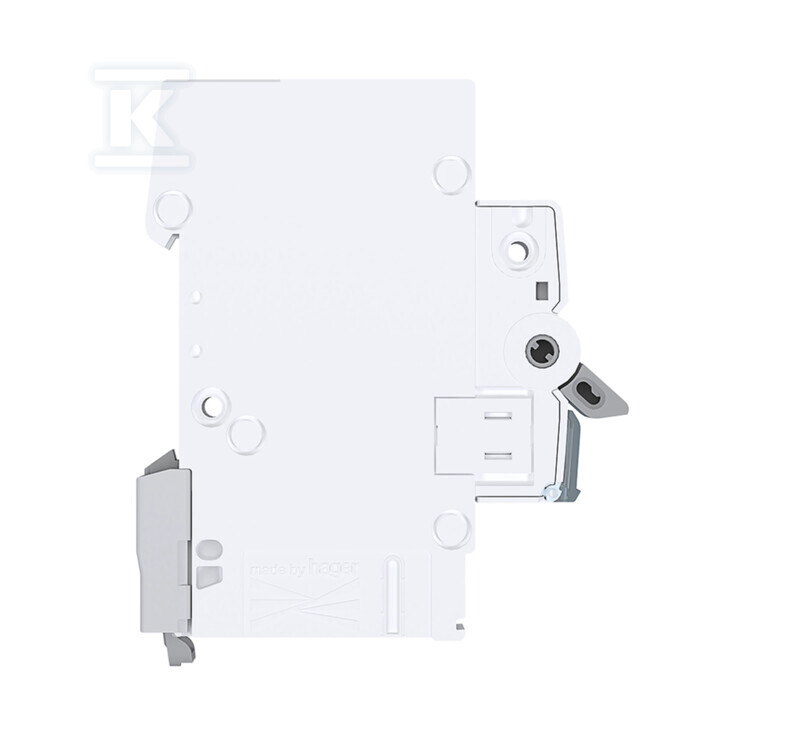

Disjoncteur magnétothermique MCB Icn=6000A 4P C 25A MCN425

Protection of three-phase circuits with characteristic C

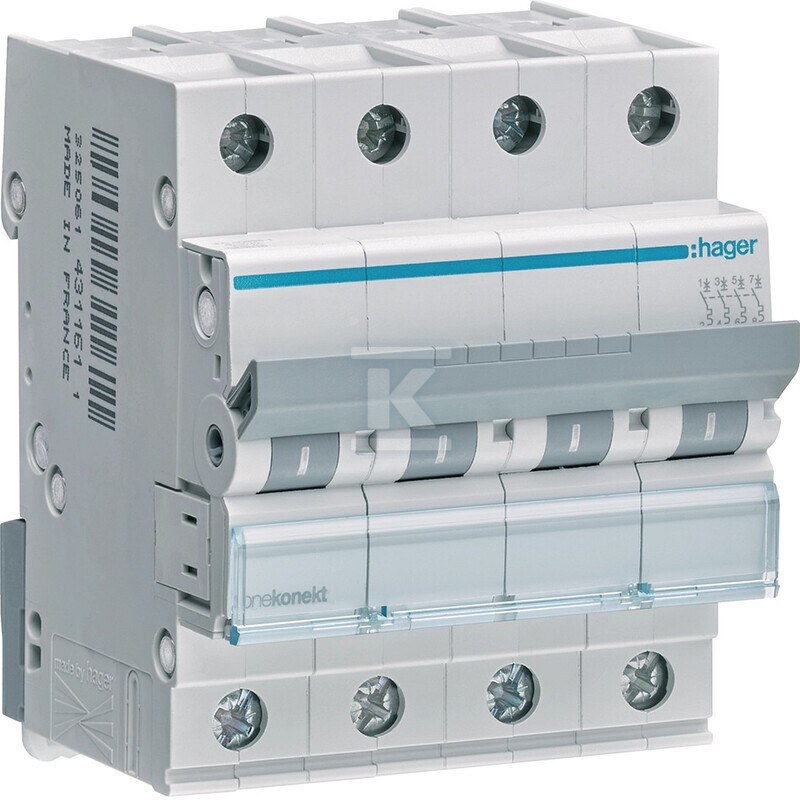

The four-pole circuit breaker MCN425 belongs to the family of miniature circuit breakers (MCB) used in modular DIN rail switchboards. The device protects three-phase circuits with a neutral conductor against the effects of overloads and short circuits - the delayed thermal release reacts to long-term exceedances of the rated current, while the electromagnetic release instantaneously interrupts the circuit in the event of a short circuit.

The C tripping characteristic means that the device will operate at a rated current multiplied by a factor of 5 to 10. In practice, at 25 A, it will operate in the range from approximately 125 A to approximately 250 A - therefore, this version is suitable for circuits with moderate inrush currents. These include, among others, electric motors, air conditioning units, compressors, and lighting installations with fluorescent lamps or LEDs with electronic power supplies.

The presence of four poles allows for the simultaneous disconnection of all three phases and the neutral conductor - which is essential in installations requiring full isolation of the load from the network.

Breaking capacity and electrical parameters

The rated short-circuit breaking capacity is 6 kA according to the IEC 60898-1 standard (a value common in standard residential and commercial building installations). For more demanding industrial applications, the manufacturer also specifies an Icu parameter of 10 kA at a voltage of 400 V AC according to IEC 60947-2 - this value defines the maximum short-circuit current that the device can safely interrupt and remain functional.

The operating voltage is in the range of 230-400 V AC, covering typical three-phase network configurations. The insulation is rated for 500 V, and the impulse withstand voltage is 4 kV - the device will handle typical surges occurring in building installations.

The manufacturer also provides a table of rated currents as a function of ambient temperature - which is important information for installers working in switchboards with elevated temperatures. At +30°C, the device still operates at a full 25 A; at +40°C, it drops to approximately 23.5 A; whereas at +70°C, it reaches only about 18.3 A. At lower temperatures, the behavior is reversed - at -15°C, it can safely operate at a current up to 30.5 A. This should be kept in mind when selecting a breaker for outdoor switchboards or technical rooms.

Connection and dimensions

The device occupies 4 modules of width on the DIN rail (70 mm). The upper terminals are screw connections - solid conductor from 1 to 35 mm², flexible conductor from 1 to 25 mm². The bottom side uses the biconnect system, allowing for faster installation using spring push-in terminals or traditional screw connections. The tightening torque is 2.8 Nm for both upper and lower terminals.

The possibility of rotary mounting (360°) allows for flexible device placement even in tight switchboards. Additional equipment - such as shunt releases or undervoltage coils - can be installed without the need to replace the breaker itself.

Power losses at full load are approximately 13.4 W, which is a typical value for four-pole designs of this class.

Operating conditions and environmental standard

The enclosure protection rating is IP20 - sufficient for indoor installation in closed switchboards; it is not intended for damp rooms or outdoor use without additional protection. The device operates correctly in a temperature range from -25°C to +70°C, and the manufacturer declares moisture resistance for all climatic zones.

The pollution degree according to IEC 60664 / IEC 60947-2 is 2, which means typical indoor conditions without significant dust or chemically aggressive atmospheres.
