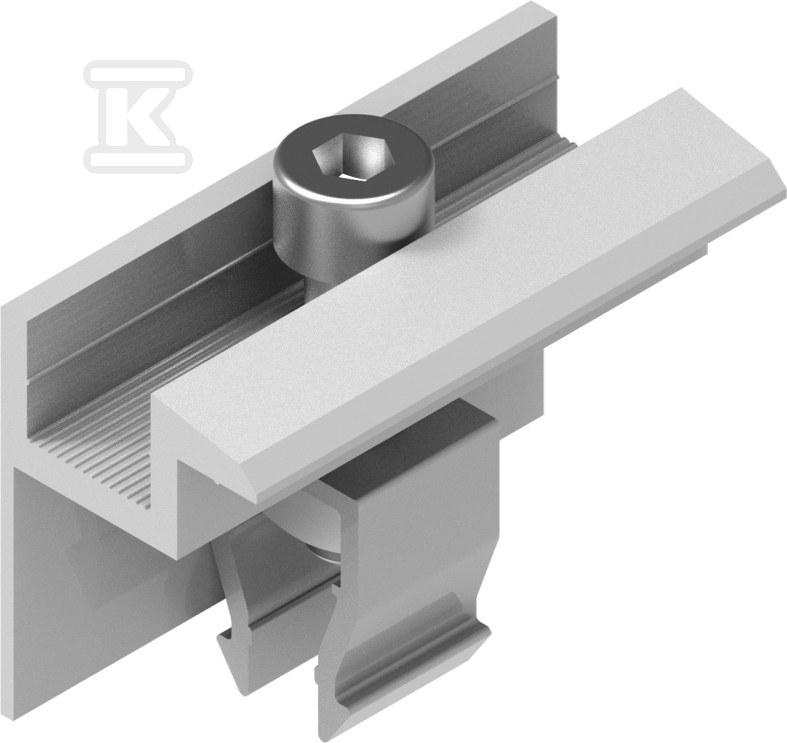

Side panel handle Klik BUFEK30/50 888530

Specialized side bracket for PV systems

The Klik BUFEK30/50 side panel bracket is a specialized component of the PV mounting system, designed for the quick and stable fastening of photovoltaic panels to aluminum structures. Made of EN AW-6005A aluminum with dimensions of 30×50 mm and a thickness of 4 mm, it provides a reliable solution for photovoltaic system installers.

Construction and materials

The bracket is made of high-quality EN AW-6005A aluminum alloy. The increased material thickness of 4 mm ensures greater structural rigidity.

Surface protection type "other". Powder coating in black RAL9005 is available.

KLIK system and compatibility

The modernized shape of the KLIK catch allows for quick connection of the bracket to structural elements. The bracket is compatible with a wide range of system components:

• Aluminum profiles PAL...
• Mounting rails SM...
• Brackets UPDMC and UPG...MC

Complete mounting kit

The kit includes a complete set of mounting elements: a special clamp adapted to the KLIK system, a SAM8... hex bolt, an NKWM8E square nut, and the Klik clip, which is a key element of the entire system.

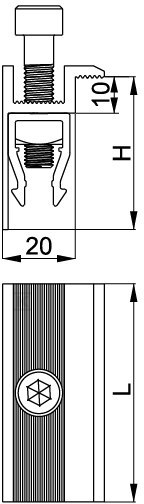

Length variants and application

Brackets are available in three standard lengths: 50 mm, 75 mm, and 100 mm.
