PrimeX electronically controlled instantaneous water heater, 18.21, 24 or 27 kW/ 400V 3200-36317

PrimeX Electronic Tankless Water Heater

The PrimeX electronic tankless water heater is an advanced solution that ensures a constant hot water temperature with minimal energy consumption. Thanks to simple one-button operation and an intuitive control panel, it is suitable for single-family houses, apartments, as well as commercial premises.

User comfort and precise control

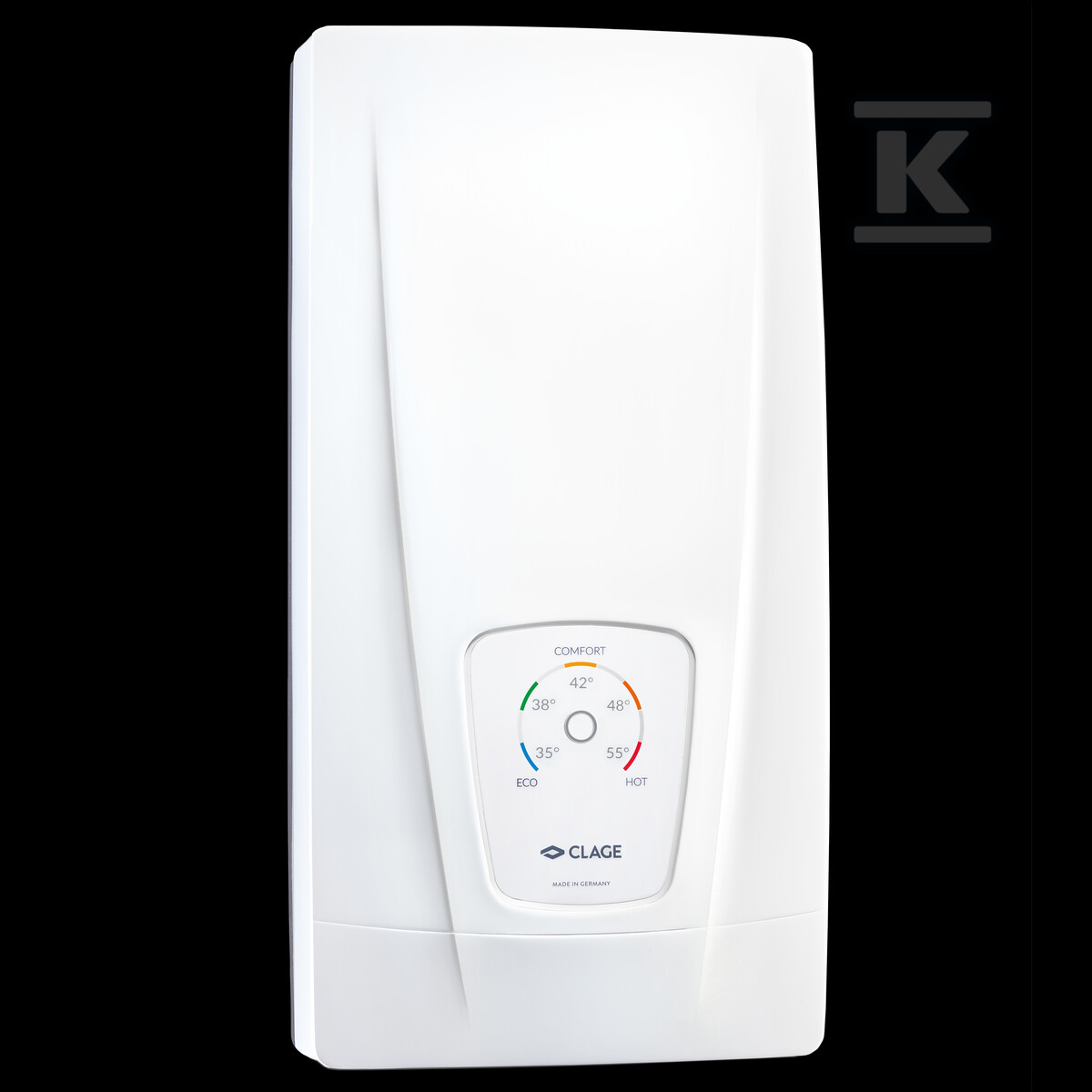

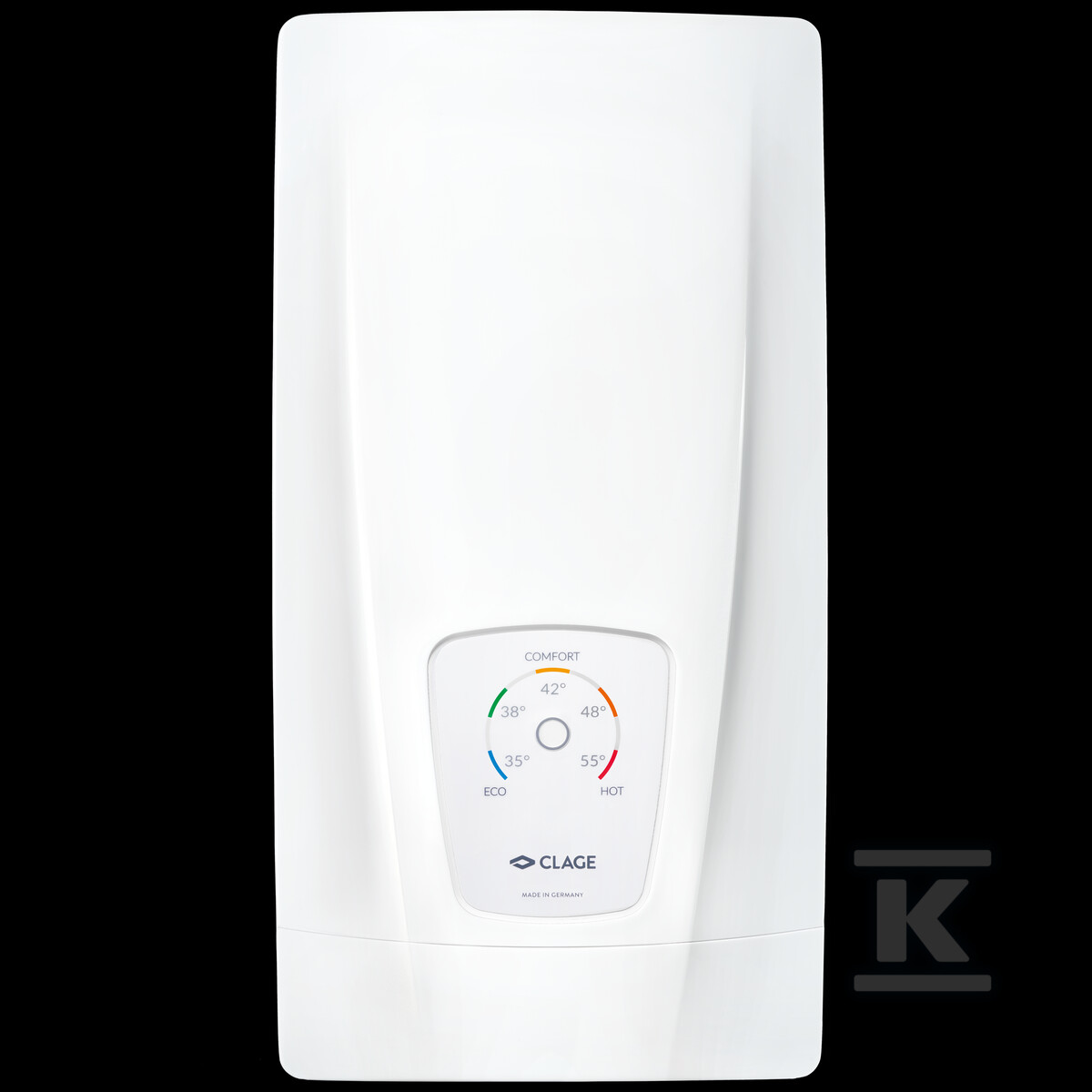

The device offers five predefined temperature levels: 35°C, 38°C, 42°C, 48°C and 55°C, which can be quickly selected with a single button press. Each temperature change is signaled by a colored LED, allowing for immediate identification of the setting without the need to check the display.

Particularly important is the **very low activation threshold of only 1.5 l/min, which means the device starts working even at a minimal water flow. This translates to the immediate availability of hot water even with a weak stream and significant energy savings - the heater does not operate unnecessarily every time a tap is opened.

Advanced temperature control and safety systems

The TWIN TEMPERATURE Control TTC® technology guarantees a stable temperature even during significant water pressure fluctuations. The system automatically compensates for flow changes, maintaining precise regulation down to a single degree Celsius - eliminating the irritating temperature "spikes" typical of traditional heaters.

Multiple Power System MPS® allows for the configuration of maximum power during installation: 18 kW, 21 kW, 24 kW or 27 kW. This flexibility enables the device to be matched to the capabilities of the electrical installation and the actual needs of the user.

Safety is ensured by a triple protection system: a thermal cutout protecting against overheating, a pressure cutout, and automatic air bubble detection. This last function protects the heating element from "dry" operation, significantly extending the device's lifespan.

Technical design and versatility of application

The heater is designed as a pressurized unit, making it compatible with any type of fitting - both traditional and modern water-saving ones. The brass connection fittings with a diameter of 1/2 inch are directed downwards and hidden under the housing, ensuring an aesthetic appearance and easy installation.

The IES® bare heating element system is characterized by greater resistance to limescale buildup and easier servicing compared to traditional solutions. The internal capacity is only 0.4 liters, which minimizes heat loss through circulation.

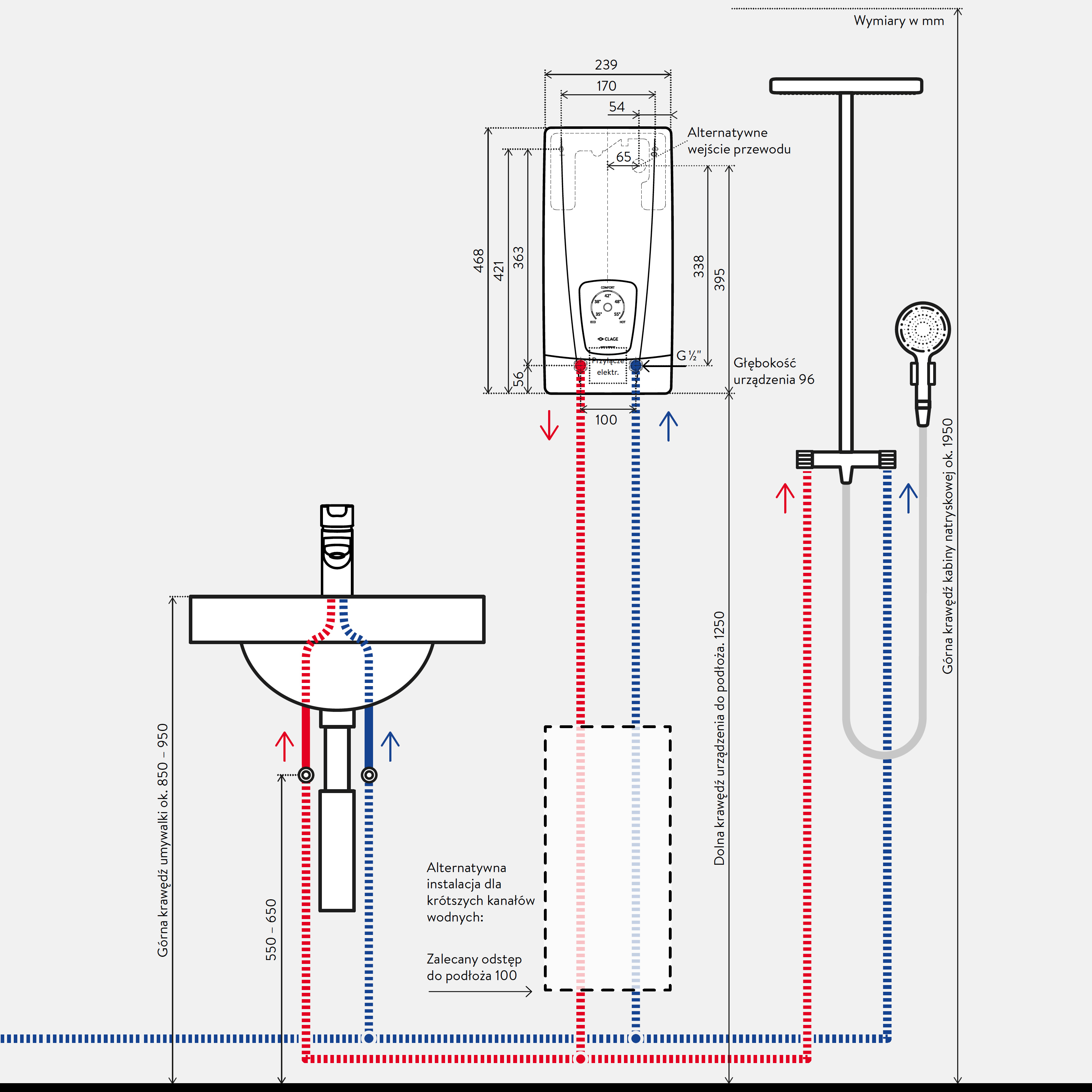

The device is also suitable for reheating pre-heated water, e.g., from solar installations or central heating boilers - this significantly expands the range of installation possibilities. Compact dimensions (46.8 × 23.9 × 9.6 cm) allow for installation even in limited bathroom or kitchen spaces.
