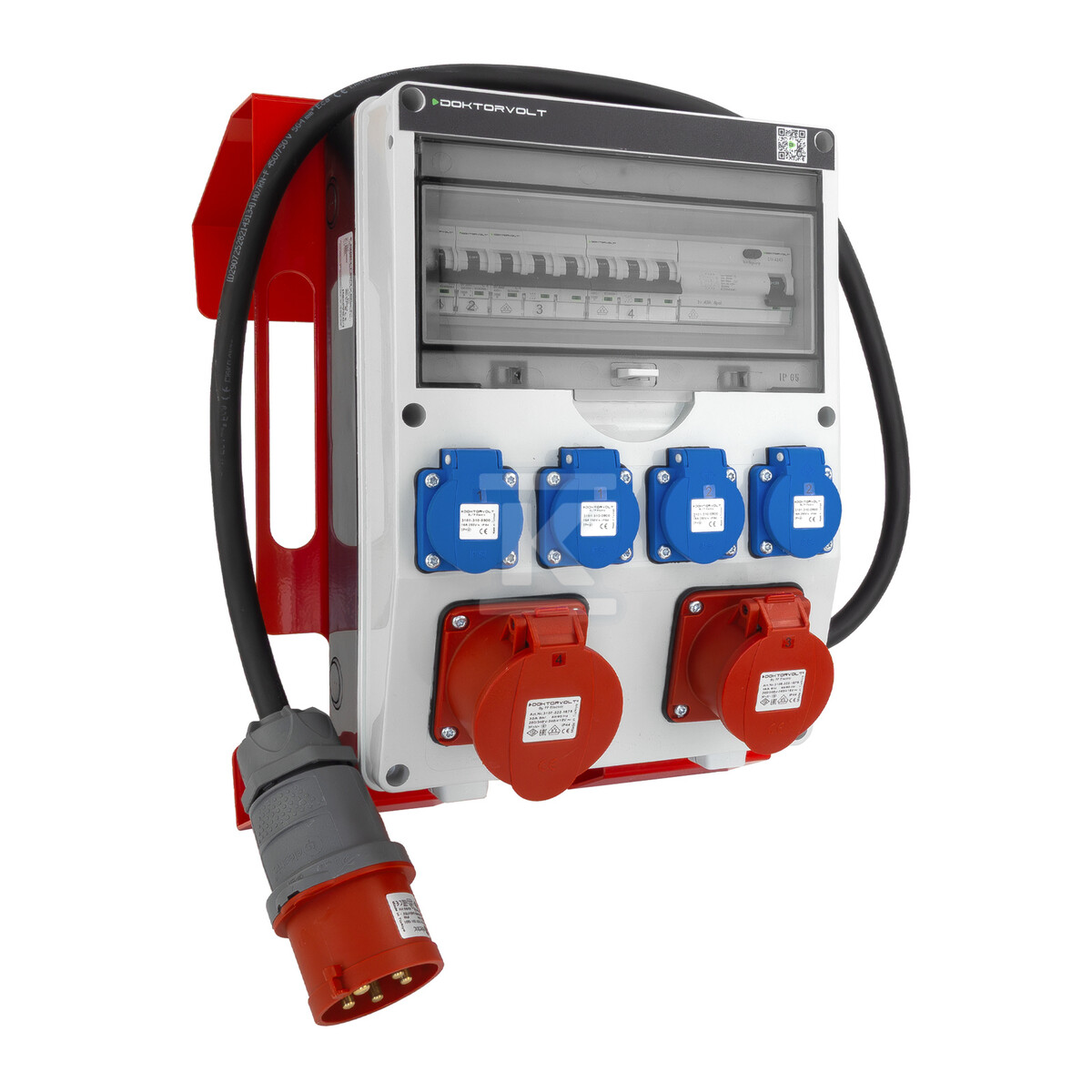

Construction distribution board 16A 32A CEE 4x230V on a stand with mounting capability and TGD-S/FI plug with VDE protections Doktorvolt DV-6067-D

Flexible power supply for all types of devices

The construction distribution board is equipped with four SCHUKO 230V / 16A sockets, allowing for the simultaneous connection of power tools, work lighting, or chargers. Cooperation with three-phase devices is possible thanks to the CEE 400V / 16A socket - ideal for concrete mixers, heaters, and compressors - and the CEE 400V / 32A socket serving larger machines such as circular saws or cranes.

The presence of single-phase and three-phase sockets in one box eliminates the need to carry separate distribution boards for different stages of work. Each socket is protected by a dedicated circuit breaker - SCHUKO circuits have single-pole C16A breakers, and each CEE socket receives its own three-phase breaker.

Complete VDE protective devices

All circuit breakers (two C16A 1P, one C16A 3P, and one C32A 3P) and the 40A / 30mA type A residual current device (RCD) are VDE marked and have a breaking capacity of 10 kA. The type A RCD protects against leakage currents exceeding 30 mA.

The C characteristic used in all circuit breakers ensures they react more slowly to short-term current surges during electric motor startups - preventing unplanned shutdowns when starting a concrete mixer or compressor.

Durable enclosure adapted to construction site conditions

The box is made of ABS/PC plastic - it does not corrode or become brittle under the influence of moisture or varying temperatures. The front plate is gray, the rear is black; the entire unit maintains IK08 mechanical impact resistance. The dimensions of 260×360×127 mm fit easily into a van trunk.

The complete distribution board has an IP44 protection rating - protected against solid objects above 1 mm and splashes of water from any direction. The internal enclosure reaches IP65; the inspection window accommodates 12 modules, allowing for system expansion without replacing the box.

The metal stand allows the distribution board to be hung on a site hut wall or scaffolding, or set up as a free-standing power column. The H07RN-F 5×4 mm² connection cable with a length of 1.5 m is terminated with a CEE 32A plug - only one power socket on-site is needed to operate the entire distribution board.

The material is halogen-free (HALOGEN-FREE), so it does not emit corrosive gases in the event of a fire - which is crucial when using it in enclosed spaces.

Standards and quality control

Production takes place in a system certified by TÜV SÜD, and each unit undergoes individual quality control confirmed by a dedicated certificate. The distribution board complies with PN-EN 61439-1 and PN-EN 61439-3 standards.
