Construction distribution board with meter 1F Siemens pTD-S 6x230V Menneks Schuko sockets Doktorvolt 4814 DV-4814-D

Construction distribution board with meter DV-4814-D

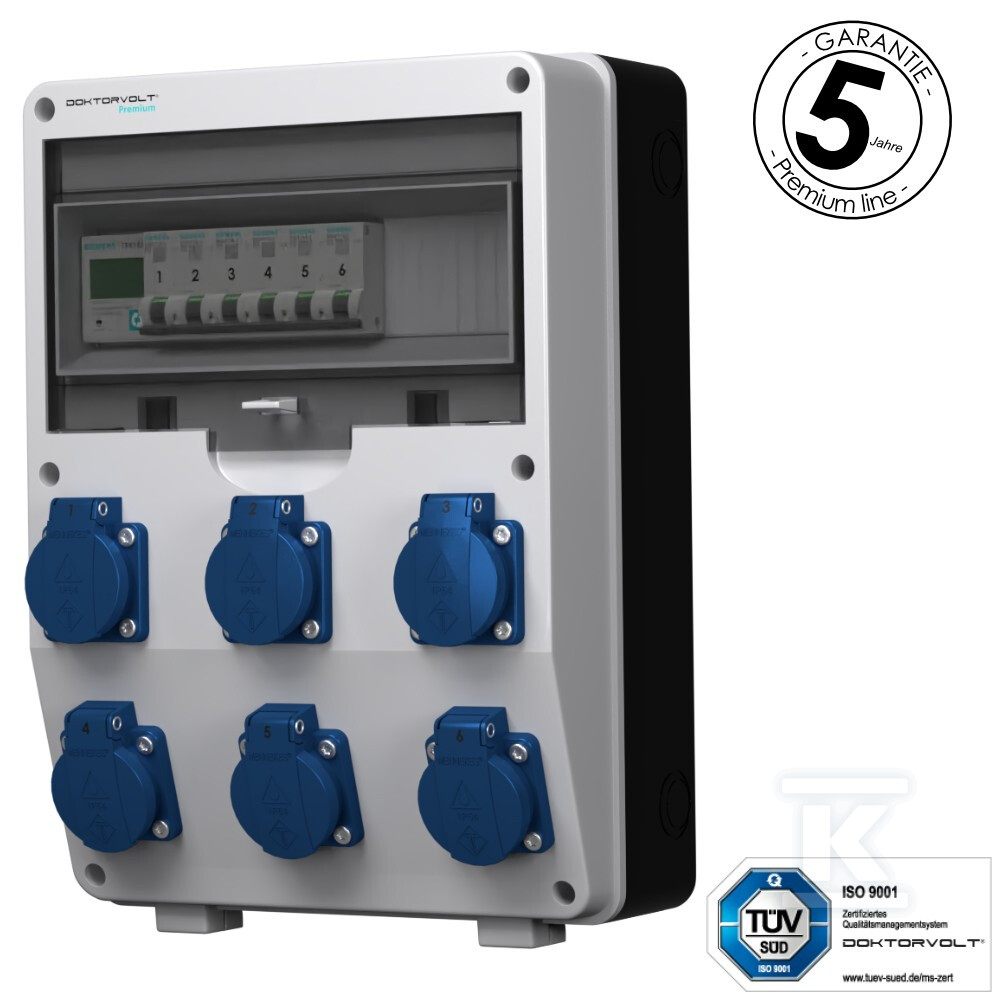

The construction distribution board with meter DV-4814-D is a complete solution for professional temporary and permanent installations. Equipped with a German Schuko socket system and high-quality SIEMENS and Mennekes components, its robust construction excels in harsh construction environments.

Construction and enclosure materials

A solid enclosure made of technopolymer guarantees resistance to mechanical damage and atmospheric conditions. Dimensions of 360 × 260 × 125 mm and a compact design with 12 modules in one row allow for installation even in limited spaces. The front plate in grey RAL 7035 with polycarbonate doors provides practical access to the interior.

High-quality materials determine durability: stainless steel screws, an EPDM rubber gasket, and a PG-16 cable gland are included. The enclosure protection rating of IP65 protects against dust and water jets, while the IP54 socket sealing ensures safe outdoor use.

Electrical system and protections

Six 230V/16A Mennekes Type F (Schuko) sockets of the German system enable the connection of standard European electrical devices. Each socket is protected by a SIEMENS C16/1P/10kA circuit breaker, which eliminates the risk of overloading a single circuit while maintaining the full functionality of the others.

The single-phase energy meter SIEMENS SEPTRON PAC1600 MID enables precise measurement of power consumption - crucial for construction site billing or monitoring operating costs. A busbar with a cross-section of 16mm² ensures adequate conductivity at a rated current of 63A.

Application and certification

The distribution board is intended for use on construction sites during roadworks and in industrial plants. It is used in workshops and garages requiring the simultaneous connection of many devices. It will also find application in powering green areas during mass events or during self-build home construction.

Production carried out according to the DIN IEC 61439-3 standard and certification by TÜV SÜD ISO 9001:2015 confirm the highest quality standards. Wiring made of H07V-K wires with a cross-section of 2,5mm² meets CPR and RoHS requirements.

The production management system certified by TÜV SÜD is based on a transparent flow of information and quality control at every stage of production, which translates into high operational safety throughout the entire service life.
