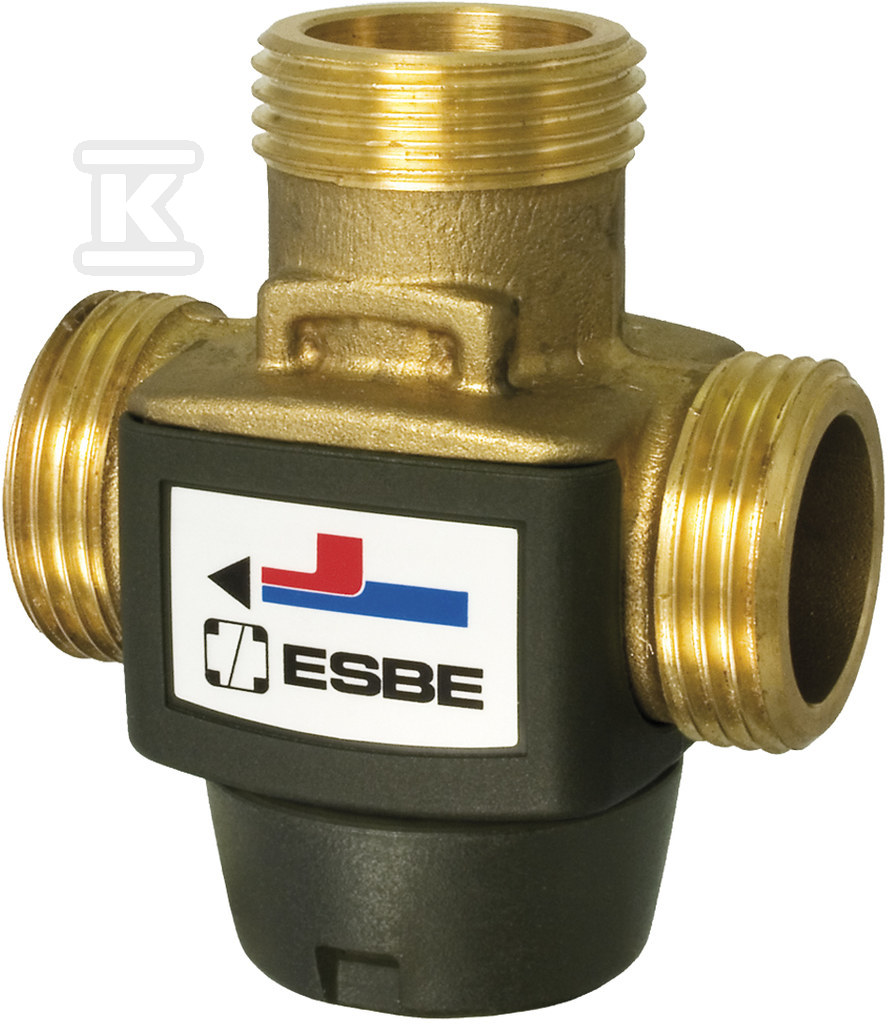

Temperature control valve VTC312, DN15, KVS 2.8, 3/4 inch external thread, temp. 55°C 51000900

Three-way temperature control valve ESBE series VTC300
is designed to protect the boiler from too low
return water temperature. By maintaining a high
return water temperature, it is possible to achieve greater
boiler efficiency, reduce soot build-up and extend
boiler life. The VTC300 valve is used
in heating systems with solid fuel boilers with a capacity of up to
30 kW, supplying storage tanks. The valve is installed
on the return pipe to the boiler (45°C, 55°C, 60°C, 70°C or
80°C) or on the supply pipe to the storage tank (70°C or
80°C). The first solution is recommended, which
allows for a simpler installation with the possibility of expansion
(see example installations).
