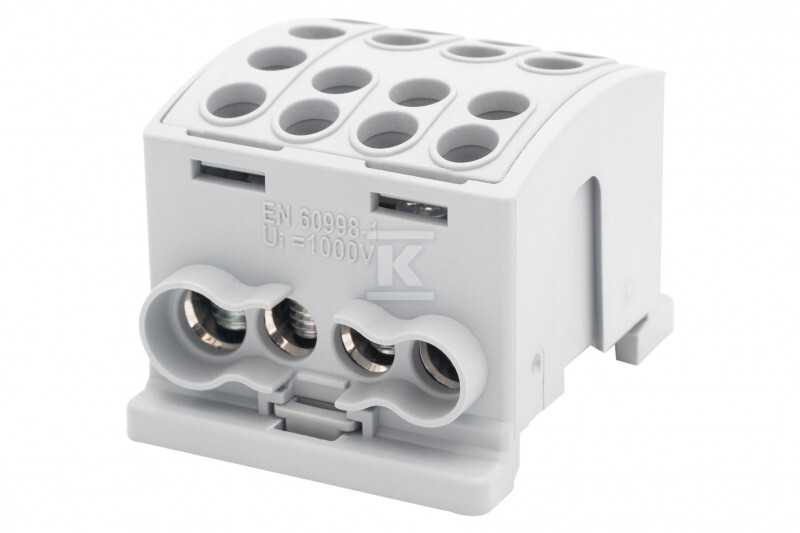

HLK terminal 125A-4 (1x35.3x25 / 1x35.3x25) - grey F2.0382

Solid connections in electrical installations

The HLK 125A-4 terminal is a reliable element used to connect wires in distribution boards and electrical boxes. Made of high-quality materials, it provides a safe and durable connection, minimizing the risk of failure. It is ideal for both new installations and during the modernization of existing ones.

Design and application

The HLK terminal is designed for mounting on a TH rail, which simplifies and speeds up its installation. Brass, tinned clamps guarantee excellent conductivity and corrosion resistance. The housing made of polyamide (PA) provides insulation and mechanical strength. The terminal design allows connecting two wires with a cross-section of 35x25 mm each – this solution is particularly useful when connecting larger cables, e.g. in industrial installations or in multi-family buildings. The IP20 protection class means that the terminal is protected against finger contact, which increases safety.

Advantages for the installer and end user

• Versatility: The ability to connect wires with a cross-section of 35x25 mm ensures a wide range of applications in various types of installations.
• Safety: Rated voltage of 400V and rated insulation voltage of 1000V guarantee safe operation of the device.
• Durability: Tinned brass clamps provide corrosion resistance and a long-lasting, reliable connection.
• Easy installation: Mounting on a TH rail is quick and intuitive, which translates into time savings during installation.
• High-quality materials: The polyamide housing is resistant to mechanical damage and provides good insulation.
• Clarity: The gray color of the housing makes it easier to identify the terminal in the distribution board.

The HLK 125A-4 terminal is a solid choice for professionals and individuals who require a reliable solution for electrical connections.
