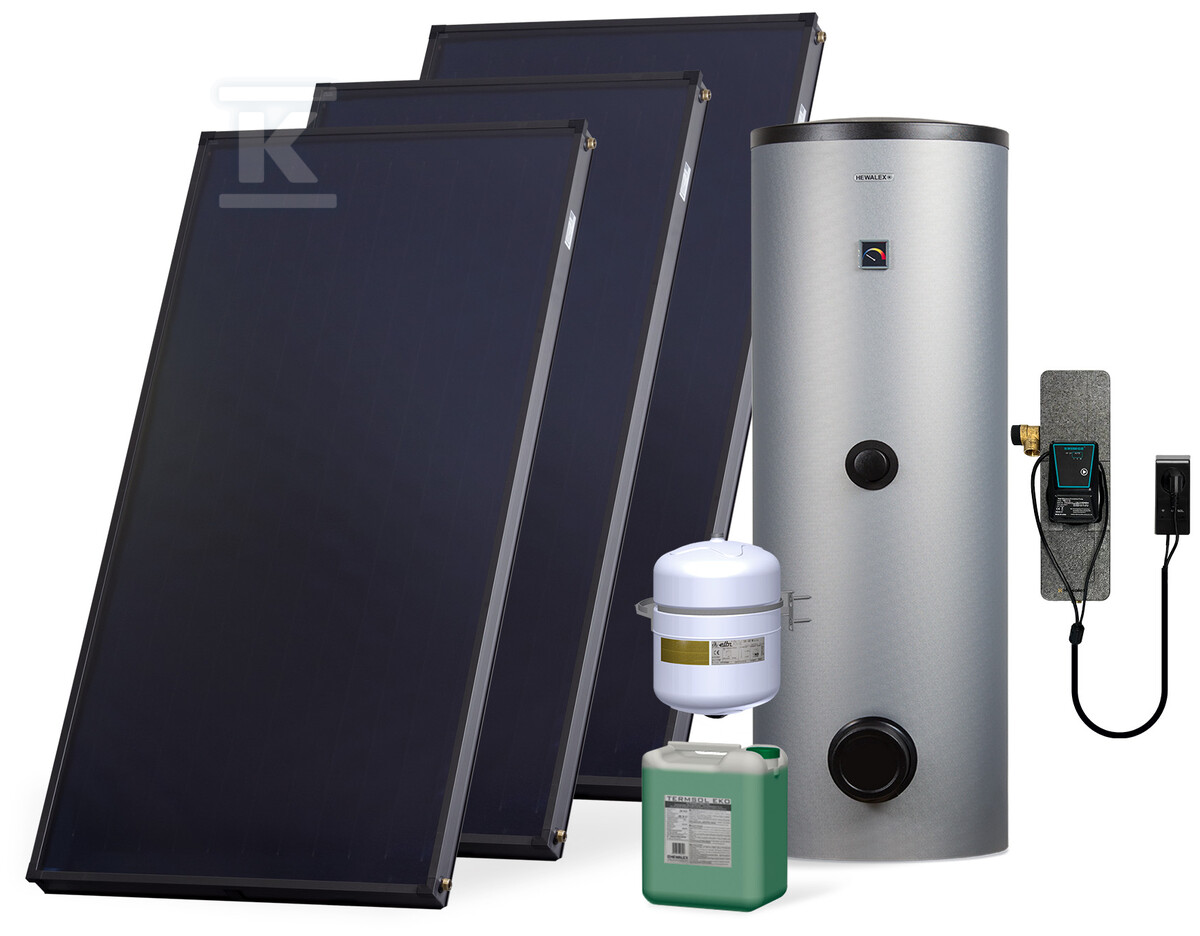

Solar kit Komfort HX300-3KS2100.W014 HSZ3032121004

Complete solar solution for larger households

The KOMFORT HX300-3KS2100.W014 solar kit is a complete solar installation designed for 4-5 person households, offering maximum efficiency while maintaining simplicity of installation and operation. The system has been designed as a plug&play solution - all elements are factory-selected and ready for installation.

Efficient heating system with intelligent control

The heart of the installation consists of three KS2100F TLP AC solar collectors with a total area of 6,18 m², which work in conjunction with a double-coil OKC300 NTRR/SOL water heater with a capacity of 300 dm³. The heater is equipped with a magnesium anode, ensuring long-term corrosion protection.

The system is driven by a WILO circulation pump (model W7) mounted in a compact ALEX HX10 MS W7 DN16 pump group. Intelligent control is implemented by the MiniSOL controller with mobile app support - the user can monitor the installation's operation and adjust parameters from anywhere.

Complete accessories and operational safety

The kit contains all the necessary elements for the correct functioning of the solar installation. An 18-liter ZNP expansion vessel protects the system from the effects of the thermal expansion of the working fluid. To fill the installation, TERMSOL EKO -25°C (20 kg) fluid is used, which maintains its properties even in extreme winter conditions.

The ZPKS DN16 connection set enables the seamless connection of all components. The system is equipped with effective venting, which eliminates the risk of airlocks that could disrupt fluid circulation.

Energy efficiency and minimal maintenance

The installation is characterized by minimal energy consumption by the circulation pump, which translates into low operating costs. The factory selection of all elements guarantees optimal cooperation between individual components, and system maintenance is limited to the absolute minimum.

High-quality components ensure reliable performance for years, and the compact design of the pump group simplifies the installation and servicing of the entire system.
