Solar kit Komfort Max HX300-2KS2600.S212 HSZ3022613001

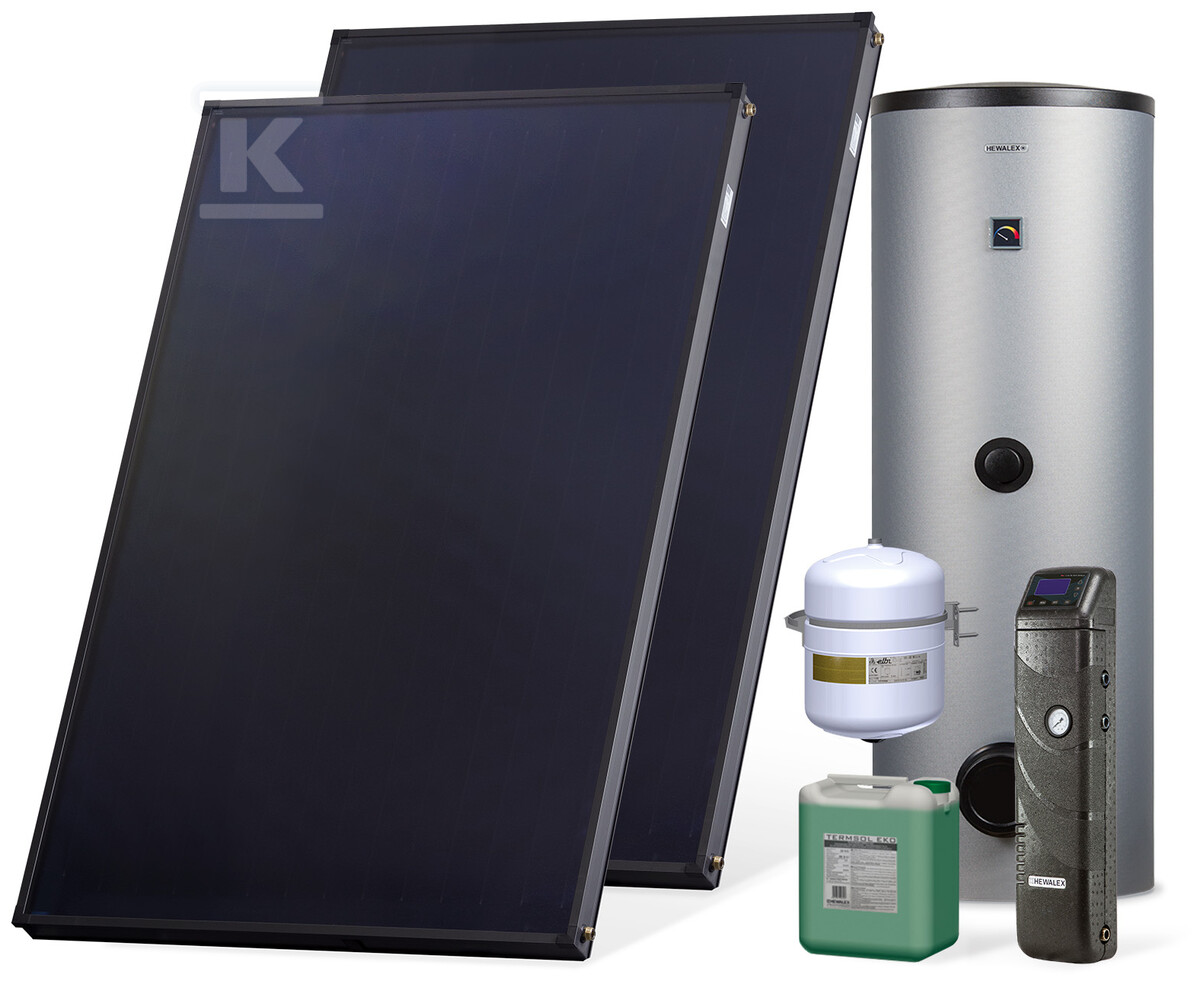

KOMFORT MAX solar set

/br>The KOMFORT MAX solar set utilizes solar energy to heat domestic hot water and to assist in home heating and pool water heating. /br>#### Control and automation /br>The heart of the system is the MiniSOL "Plug&Play" controller, which minimizes the configuration time for both the user and the installer. The device features a built-in WiFi module and is operated exclusively via a mobile application available on Android and iOS platforms. An advanced control algorithm for the solar circulation pump allows for intelligent setting of operating parameters for any installation size. /br>The controller regulates the circulation pump speed smoothly using a PWM2 or iPWM2 signal, allowing for the optimization of electricity consumption while maintaining maximum system efficiency. /br>#### System components /br>The system includes two KS2600F TLP AC solar collectors with a total gross area of 5.24 m², adapted for operation in any climate thanks to the full thermal insulation of the housing. The collectors are equipped with an aluminum absorber plate with a high-selectivity coating and copper piping permanently joined using laser welding technology. /br>The harp-shaped absorber layout with four connection ports protects the heat carrier from overheating in the event of a failure or power outage. The 3.2 mm thick solar glass is tempered and resistant to maximum hail according to the EN ISO 9806 standard (hail with a diameter of up to 45 mm). /br>The OKC300 NTRR/SOL twin-coil water heater with a capacity of 300 dm³ is equipped with a titanium anode ensuring long-term corrosion protection. The ALEX HX10 pump group contains a circulation pump that guarantees the reliable operation of the entire system. /br>#### Operating parameters and warranties /br>The system is designed for a family of 4-5 people and provides a heating capacity of 1.97 kW with a water heating energy efficiency of 82% in hot climatic conditions. Annual energy consumption is only 50 kWh with a total system capacity of 300 liters. /br>The manufacturer offers extended warranty terms: the basic 10-year warranty on solar collectors is extended by an additional year (total 11 years) upon registration of the set. Similarly, the warranty on the water heater is standardly 5 years plus an additional year after registration (6 years), and the pump group has a standard warranty of 2 years plus one year after registration (3 years). /br>The dimensions of the set in the packaging are 140×120×220 cm with a total weight of 289 kg.
