25-channel comb line 120 x 80 grey 636025

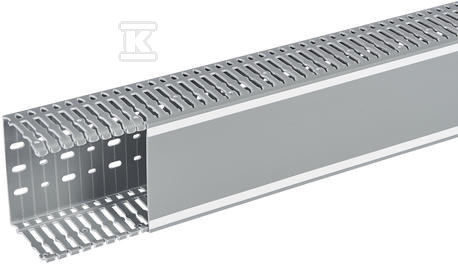

Cable Management System – Legrand Lina 25 Comb Channel

The Legrand Lina 25 Comb Channel is a practical solution for organizing and protecting electrical cables. Made of durable PVC, it provides a safe and aesthetic method for routing installations in both commercial and residential buildings. Its grey color and perforation facilitate installation and cable identification.

This channel is particularly useful when creating branched cabling systems where easy access to individual cables is essential. Perforation every 12.5 mm allows flexible cable extraction at any point along the route. Additionally, the possibility of mounting on both vertical and horizontal surfaces increases the range of applications.

Construction and Installation

Made of polyvinyl chloride (PVC), the channel features high resistance to mechanical damage and external factors. The mounting method, based on bottom perforation, enables quick and easy installation using appropriate fastening elements. The channel is supplied with a cover, providing additional safety and aesthetic finish. White strips on the cover allow clear labeling of the cables inside, facilitating later identification and maintenance.

Note the useful cross-section of 8730 mm², which allows free routing of a larger number of cables. A slot spacing of 6.5 mm and a slot width of 6 mm ensure optimal ventilation and heat dissipation generated by the cables. The channel meets the requirements of standard PN-EN 50085-2-3, guaranteeing its safety and reliability.

Features and Applications

• Durable material: PVC ensures resistance to mechanical damage and corrosion.
• Flexibility: Perforation enables easy cable extraction at any point along the route.
• Easy installation: Mounting via bottom perforation accelerates installation.
• Safety: Self-extinguishing material minimizes the risk of fire spread.
• Identification: White strips on the cover facilitate cable labeling.
• Application: Ideal for electrical installations in offices, residential buildings, industrial plants, and anywhere organized cable routing is required.
• Operating temperature: Wide operating temperature range (-5°C to +60°C) allows use in various environmental conditions.
• Compliance with standards: Meets the requirements of standard PN-EN 50085-2-3, ensuring safe operation.
