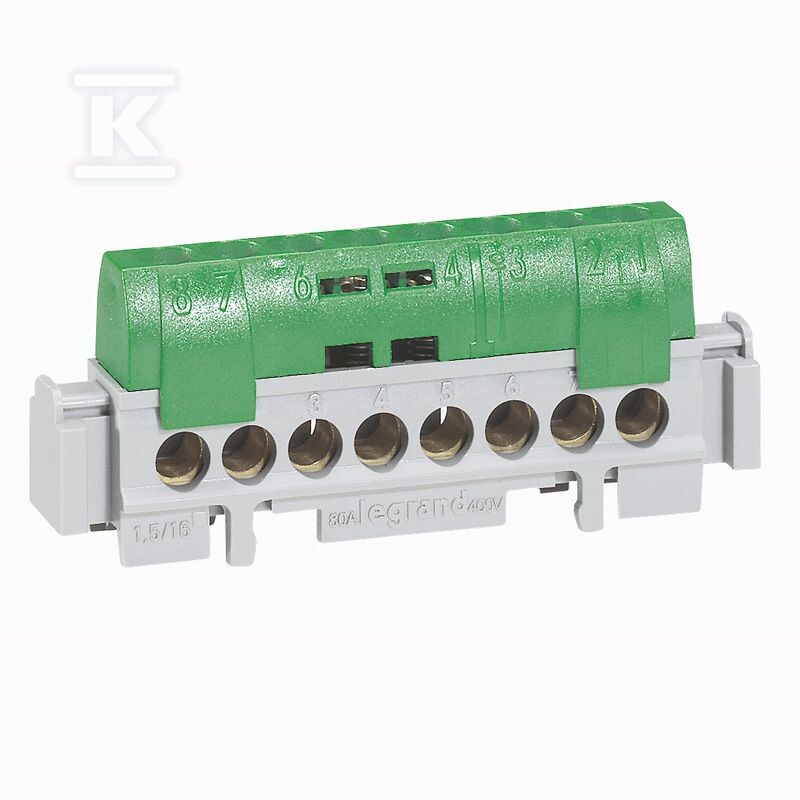

Connection strip IP2X Z22 004836

IP2X Z22 Connection Bar is an element designed for safe and organized distribution of electrical energy in installations. Intended for DIN rail mounting, it ensures solid connections for conductors with cross-sections from 1.5 mm² to 16 mm² at the output and from 6 mm² to 25 mm² at the input. The bar's construction allows connection of up to 21 output conductors from a single input, making it an ideal solution for applications requiring high connection density.

Construction and Application

The bar has been designed with user safety in mind. It features an insulating cover protecting against accidental contact with live parts, which is particularly important in installations accessible to unauthorized persons. The ability to connect stranded, solid-core, and multi-strand conductors increases its versatility and allows adaptation to various cable types. The DIN rail mounting method facilitates installation and maintenance, while compact dimensions (width 176 mm, height 30 mm, depth 16 mm) enable efficient use of space in electrical distribution boards.

Advantages and Benefits

• High connection flexibility: The ability to connect conductors of different cross-sections and types (stranded, solid-core, multi-strand) ensures a wide range of applications.
• User safety: The insulating cover minimizes the risk of electric shock during operation and maintenance of the installation.
• Easy installation: The DIN rail mounting method accelerates and simplifies the installation process and enables easy replacement when needed.
• High connection density: Up to 21 outputs from a single input allow efficient energy distribution in locations with high demand.
• Durability and reliability: Made from high-quality materials, it ensures long-term and trouble-free operation under various environmental conditions.
• Rated current 90A: Allows use in circuits with higher loads.

The IP2X Z22 Connection Bar is used in residential, commercial, and industrial buildings – wherever safe and efficient distribution of electrical energy is required. It is ideal for creating electrical distribution boards, control cabinets, and other electrical installations. Thanks to its versatility and reliability, it constitutes an optimal solution both for professional installers and end-users seeking a robust component for their electrical installation.
