Flexible pipe Icta 3422, diameter 20 651220

from 1 m4,27 zł
gross / m
to order
Brand LEGRAND
Series:ICAPS
Onninen Index:CSF861
Manufacturer's code:651220
EAN:3245066512204
Bulk packaging:1 / 100 m


Suggested products


TECHNICAL DATA

Sales unit dimensions and weight: 1 m

length/width/weight:1 m / 0 m / 5,9 kg
Customs code:39173300

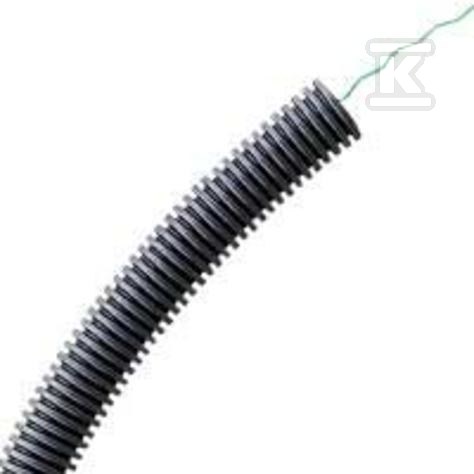

Flexible pipe Icta 3422, diameter 20 651220

Flexible ICTA 3422 pipe – reliable protection for cables in every installation

Flexible ICTA 3422 pipe is a durable and flexible solution for routing electrical cables in building and industrial installations. Made from polyolefin, it provides effective protection for cables against mechanical damage and external environmental factors. Its design enables easy cable routing, even in hard-to-reach areas.

Properties and applications

The ICTA 3422 pipe features high crush resistance (750 N) and an operating temperature range from -5°C to 90°C. It is suitable for both surface and concealed installations, making it a universal component for every electrician. Its compatibility with concrete further enhances its versatility. Thanks to its halogen-free construction, the pipe minimizes the risk of toxic gas emissions in case of fire—making it especially critical for public buildings and facilities with enhanced safety requirements. Impact resistance class according to EN 61386-1 is Heavy (Class 4), ensuring durability even under demanding conditions.

  • Safety: Halogen-free construction ensures minimal emission of toxic gases during fire, enhancing user and installation safety.
  • Flexibility: Self-shaping design simplifies cable routing through complex paths and confined spaces.
  • Durability: Crush resistance (750 N) protects cables from mechanical damage during installation and operation.
  • Versatility: Suitable for both surface and concealed installations, as well as in concrete, expanding its application range.
  • Wide temperature range: Operates reliably from -5°C to 90°C, enabling use in diverse environmental conditions.

The ICTA 3422 pipe with a 20 mm diameter (inner diameter 14.1 mm) is ideal for protecting electrical installations in residential, commercial, and industrial buildings. It performs excellently when routing cables through walls, floors, ceilings, and cable trays. Its gray color ensures an aesthetically pleasing installation.
