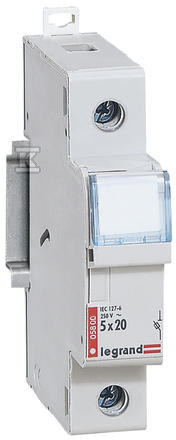

Fuse holder 1P 5 x 20 RB 300 005800

Professional single-phase circuit protection

The 1P 5x20 fuse base is a reliable component of electrical installation protection systems, specifically designed to work with 5x20mm cylindrical fuses. The product enables fast and safe mounting of a single fuse on a standard DIN rail, making it an ideal solution for both domestic and industrial distribution boards.

The device operates at a rated voltage of 250V, providing effective protection against overload and short circuits in single-phase circuits. The compact design allows for space savings in the distribution board, and the IP20 protection rating guarantees safety of use in indoor conditions.

Construction and compatibility

The fuse base is made of high-quality materials resistant to electrical current and operating temperatures. DIN rail mounting allows for quick installation in existing distribution systems without the need for additional enclosure modifications.

The product is compatible with standard 5x20mm cylindrical fuses, which are widely used in residential and office installations. This versatility makes the fuse base suitable for both modernizing existing installations and building new electrical systems.

Application and operation

The solution is particularly useful in the protection of lighting circuits, socket outlets, and low-power household appliances. The single-pole design allows for precise protection of a specific circuit without affecting other parts of the installation.

The absence of a switched neutral simplifies installation and reduces the risk of mounting errors. This is especially important when modernizing older installations, where wire configurations may differ from current standards.

Safety and standards

The product meets the requirements of European standards for protective devices, confirming its high manufacturing quality. The IP20 protection rating provides an effective barrier against accidental contact with live parts.

The design allows for easy replacement of the fuse after it has tripped, which is crucial for quickly restoring power continuity in the protected circuit. Replacement does not require additional tools or specialized technical knowledge.
