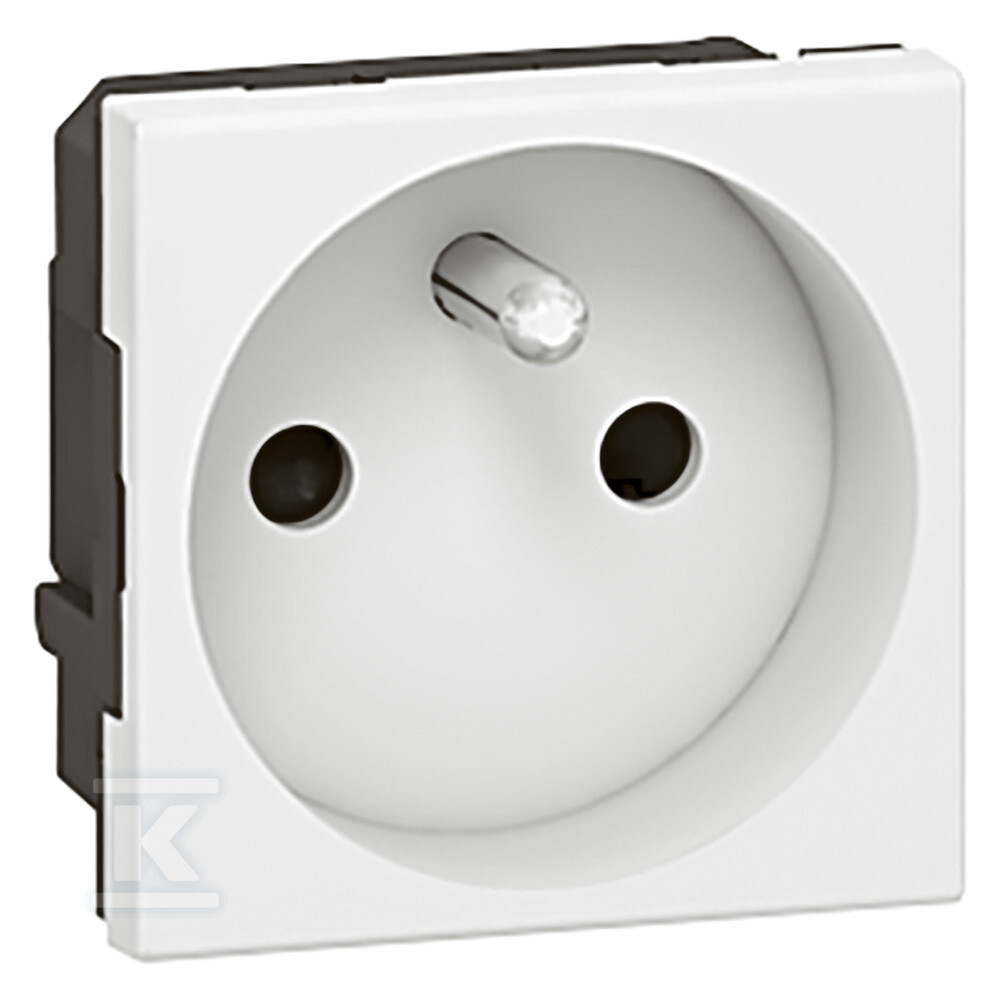

2P+E socket 45° screw connection 2M M45 077113

Universal socket – reliability and safety in every circuit

The 2P+Z socket with screw connection is a solid solution for both professional installers and end users. Designed for mounting in the Mosaic system, it provides a safe and stable electrical connection. Made of high-quality thermoplastic material, it is characterized by durability and resistance to mechanical damage. Rated current of 16A and voltage of 250V make the socket ideal for most standard household and commercial applications.

Design and installation – simplicity for professionals, convenience for users

Snap-in mounting in a modular system simplifies and speeds up installation. The screw connection (M4) ensures a secure connection of wires with a cross-section of up to 4 mm². The socket has a round protective contact, guaranteeing safe use. Additionally, the presence of child protection increases comfort, especially in homes with small children. The loop through function allows easy connection of subsequent sockets in the circuit without the need for additional connectors.

Features and benefits – everything that matters in one product

• Safety: It has a protective contact and child protection, minimizing the risk of electric shock and providing users with peace of mind.
• Durability: Made of high-quality thermoplastic material resistant to mechanical damage and external factors.
• Easy installation: The snap-in mounting system in the modular Mosaic standard significantly speeds up installation.
• Versatility: Designed for circuits with a voltage of 250V and a current of 16A – compatible with most electrical devices.
• Resistance: Protection class IP41 provides protection against solid objects larger than 1mm and dripping water.
• Halogen-free: The material does not contain halogens, which increases fire safety and limits the emission of toxic substances in the event of a fire.
• Aesthetics: White color (RAL 9003) and glossy surface finish provide an aesthetic appearance of the socket that fits into various interiors.
• Impact resistance: Impact resistance class IK04 provides protection against mechanical damage caused by impacts with an energy of 0.5J.
