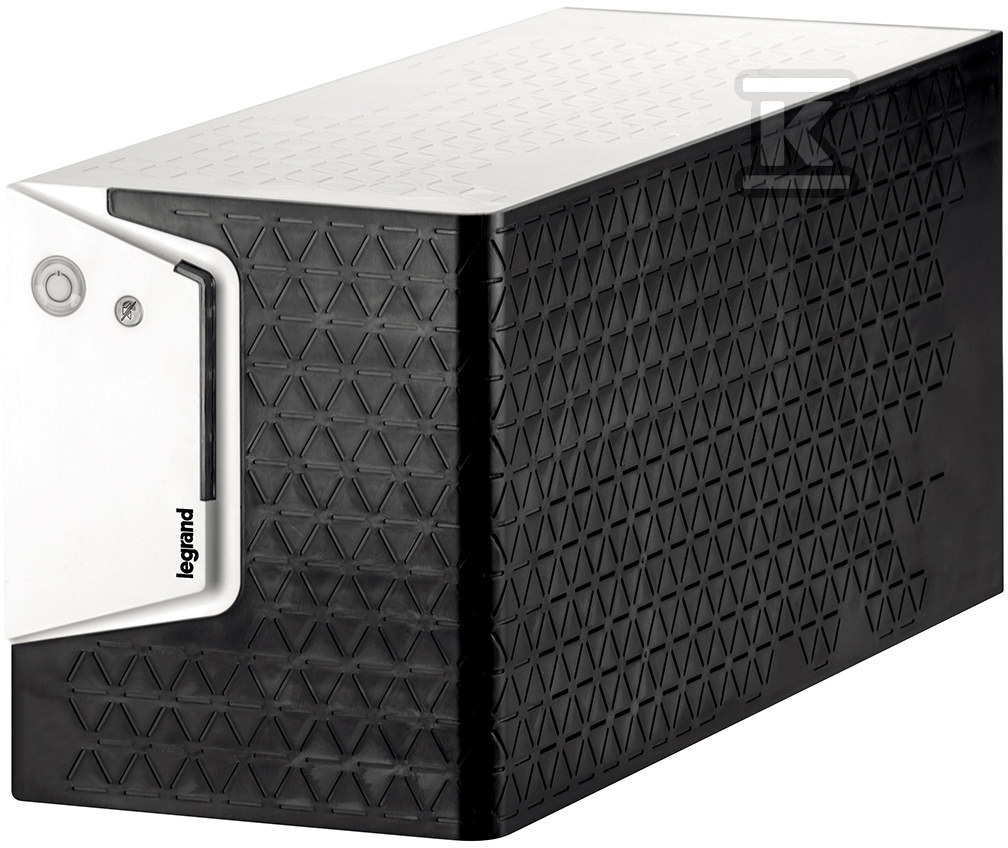

Legrand UPS. UPS KEOR SP 1000 2xIEC 2xSHK 310187

Reliable Power Supply and Protection for Your Equipment

The Legrand KEOR SP 1000 UPS is a Line-Interactive UPS designed to provide uninterrupted power and protection against electrical network failures. It is ideal for home offices and professional installations, safeguarding sensitive electronic devices such as computers, servers, audio-video equipment, and alarm systems. With an apparent power rating of 1000 VA and active power of 600 W, it enables simultaneous connection of multiple devices.

Functionality and Versatility

This model stands out for its versatility, thanks to a wide input voltage range (170–280 V) and output voltage range (207–253 V), ensuring stable operation even during grid voltage fluctuations. The Line-Interactive technology, combined with AVR (Automatic Voltage Regulation), automatically stabilizes the output voltage, eliminating disturbances and providing optimal operating conditions for connected devices. Additionally, the built-in USB interface and RS-232 protocol support enable basic communication with a computer, allowing monitoring of UPS status and configuration of operational parameters.

User Comfort and Safety

The Legrand KEOR SP 1000 UPS features two C13 output sockets and two Schuko sockets with protective earth contacts (IEC C14 input). Audible alarms indicate battery discharge levels, while LED indicators show operating mode and battery charge status. Protection against overload, short circuit, voltage surges, and excessive battery discharge ensures safety for both the UPS and connected equipment. Cold start capability allows operation even without grid voltage. Overall efficiency of 97% reduces energy losses and lowers operating costs.

• Line-Interactive: Provides rapid response to voltage fluctuations without switching to battery, extending battery life.
• AVR (Automatic Voltage Regulation): Stabilizes output voltage, protecting devices from voltage variations.
• Versatile Connectors: Two C13 and two Schuko sockets allow connection of a wide range of devices.
• USB and RS-232 Communication: Enables UPS status monitoring and parameter configuration.
• Protective Features: Guards against overload, short circuit, surges, and over-discharge of the battery.
• Compact Dimensions: 173 mm height, 148 mm width, and 380 mm depth facilitate installation and integration into existing infrastructure.
• Weight: 9 kg — robust construction ensures stability and durability.
