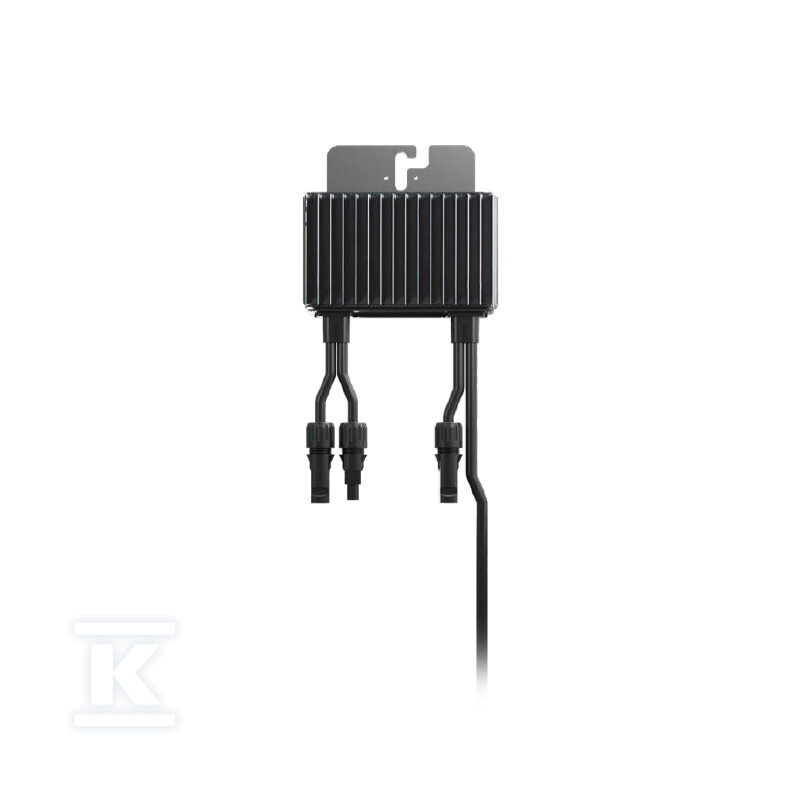

SolarEdge Optimizer S650B-1GM4MBM 650W 85V, (+)2.3m (-)0.10m cables

Optimizing Photovoltaic System Performance

The SolarEdge S650B-1GM4MBM optimizer is a key component of a modern solar system, designed to work with SolarEdge inverters. The device allows for maximizing energy production from each photovoltaic module, regardless of lighting conditions or potential shading. This is particularly important in installations with different panel orientations or in places exposed to partial shading.

Design and application

The S650B optimizer is designed to work with panels up to 650W and a voltage of 85V. It is equipped with cables of different lengths – 2.3 meters for the positive connection and 0.10 meters for the negative – which makes it easier to adapt to different installation configurations. Its robust housing (IP68) provides resistance to weather conditions, and the use of MC4 connectors guarantees safe and reliable connections. Thanks to this, the optimizer works well both in rooftop installations and on the ground.

Advantages and benefits

• Increased efficiency: SolarEdge's optimization technology allows you to extract maximum energy from each panel, even in the event of shading or differences in the parameters of individual modules.
• Safety: The SafeDC function reduces DC voltage to a safe level (1V) in the event of a failure or system shutdown, minimizing the risk of electric shock.
• Module-level monitoring: The ability to monitor the operation of each panel allows for quick identification of any problems and optimization of the entire installation.
• Flexibility: Compatibility with different types of panels and the ability to use in various string configurations increase the flexibility of system design.
• Durability: IP68 protection class and high quality of workmanship guarantee reliable operation of the device for many years – this is confirmed by the manufacturer's 25-year warranty.
• Easy installation: Factory-mounted cables of appropriate length and standard MC4 connectors greatly simplify and speed up the installation process.

Technical specifications

The S650B optimizer is characterized by high efficiency (99.5% / 98.6% weighted) and a wide range of MPPT voltages (12.5–85 V). It is adapted to work in difficult temperature conditions (-40°C to +85°C). The device meets EMC/IEC/EN/UL safety standards, ensuring its compliance with applicable regulations. The weight of the device is 790g and its dimensions are 129 x 165 x 45 mm.
