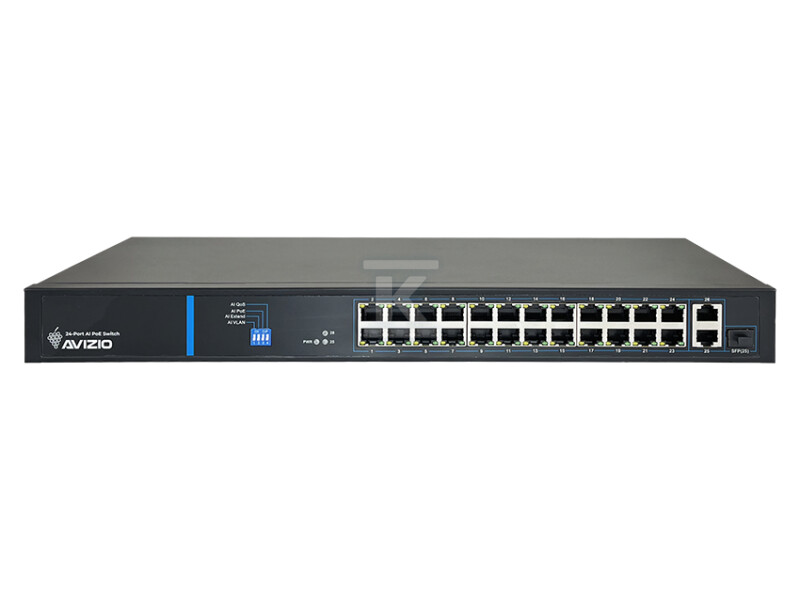

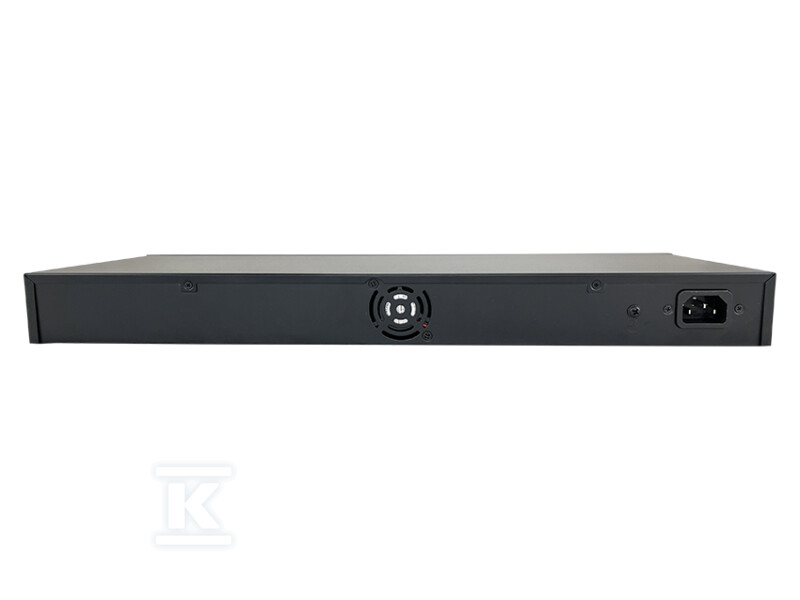

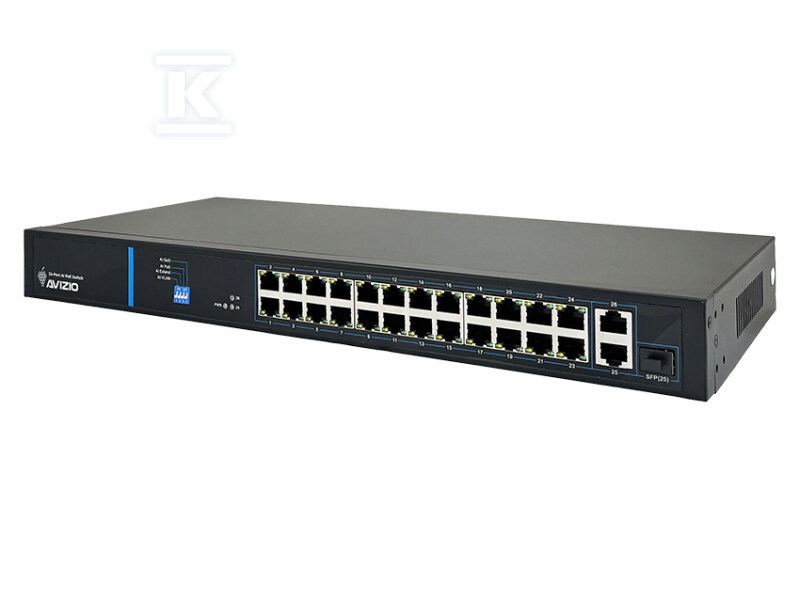

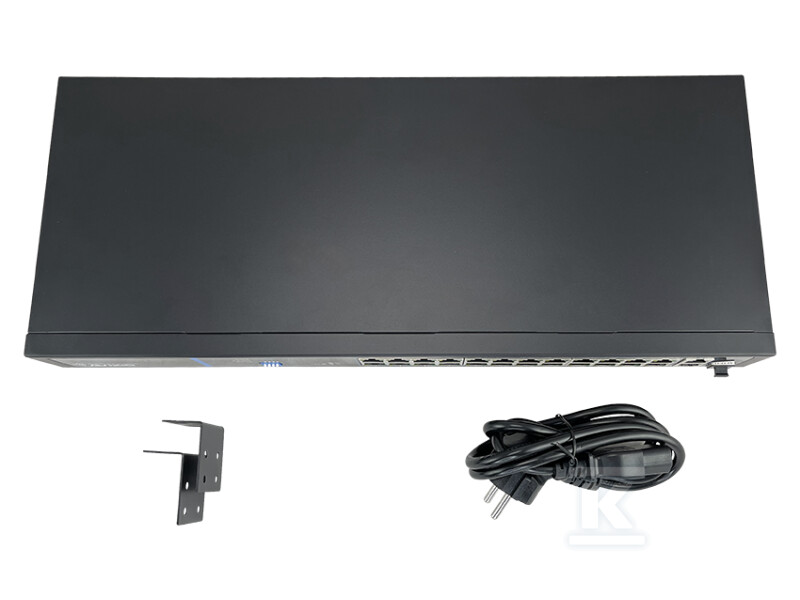

Unmanaged switch 24 ports RJ45 PoE+ 100Mb/s + 2 ports RJ45 Uplink 1Gb/s (power budget 250W) AVIZIO AV-SU24MP2G

PoE Switch – Reliability and Power in One Device

This unmanaged network switch is the ideal solution for IP surveillance systems, corporate networks, and anywhere a reliable connection and power supply for devices are needed. Equipped with 24 RJ45 PoE+ 100Mb/s ports and two 1Gb/s uplink ports (one with the ability to connect an SFP module), it provides flexibility and efficiency in data transmission. A power budget of 250W allows you to power up to 24 PoE IP cameras simultaneously, eliminating the need for additional power supplies.

Functionality and configuration options

The switch offers a range of features to facilitate network management and optimize its operation. AI VLAN functions isolate ports 1-24 from ports 25 and 26, increasing network security. AI EXTEND enables data transmission over a distance of up to 250m, which is particularly useful in extensive installations. Video packet prioritization (AI QoS) ensures smooth images from IP cameras, and the AI PoE function monitors the ports powering PoE devices and automatically restarts those that stop responding – this simple solution minimizes the risk of downtime in the surveillance system.

Solid construction and safety

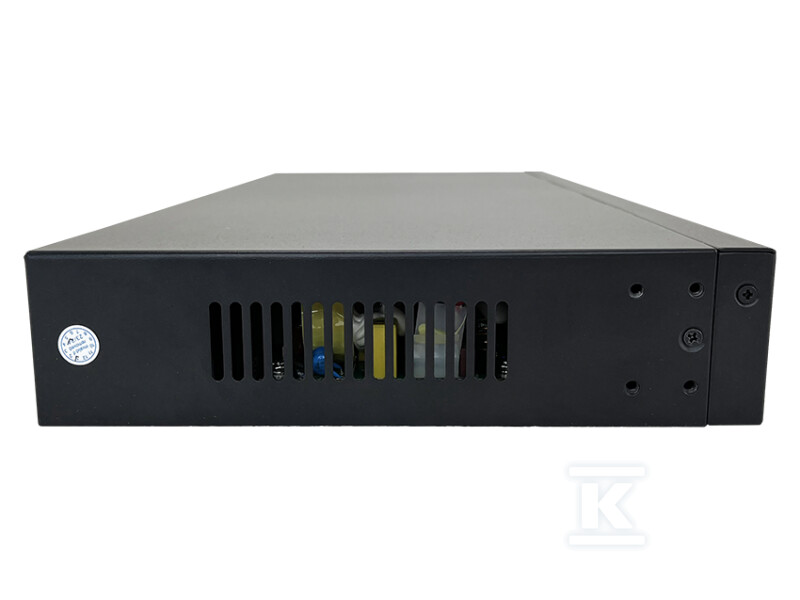

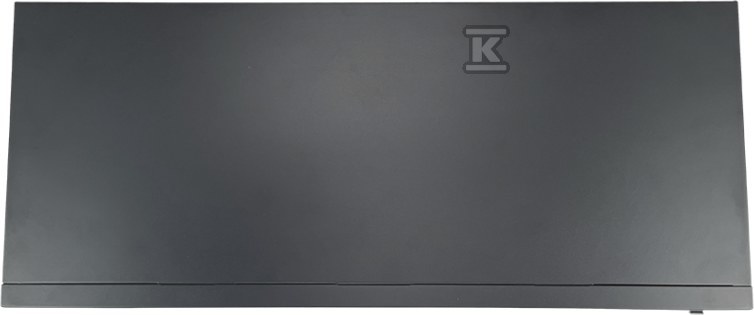

The switch's metal housing not only protects the device from mechanical damage but also effectively dissipates heat, ensuring stable operation even under heavy load. The ability to connect the housing to ground further increases user safety and reduces electromagnetic interference. The device meets FCC and CE standards, confirming its compliance with European safety standards.

• PoE+ Ports: Provide safe and stable power to IP cameras and other devices compliant with the 802.3af/at standard, eliminating the need for separate power supplies.
• Uplink Ports: Two 1Gb/s uplink ports (RJ45 and RJ45/SFP combination) allow for a fast connection of the switch to other network segments or the backbone of the network infrastructure.
• AI Functions: Advanced AI VLAN, AI EXTEND, AI QoS and AI PoE functions allow for optimization of network operation and increased reliability.
• Metal Housing: Provides durability and resistance to mechanical damage, as well as efficient heat dissipation.
• Automatic Negotiation: Automatic speed negotiation and automatic cross-over (Auto-MDI/MDIX) simplify installation and configuration of the device.
• Store-and-Forward: Store-And-Forward transmission method guarantees reliable data transmission in the LAN network.
