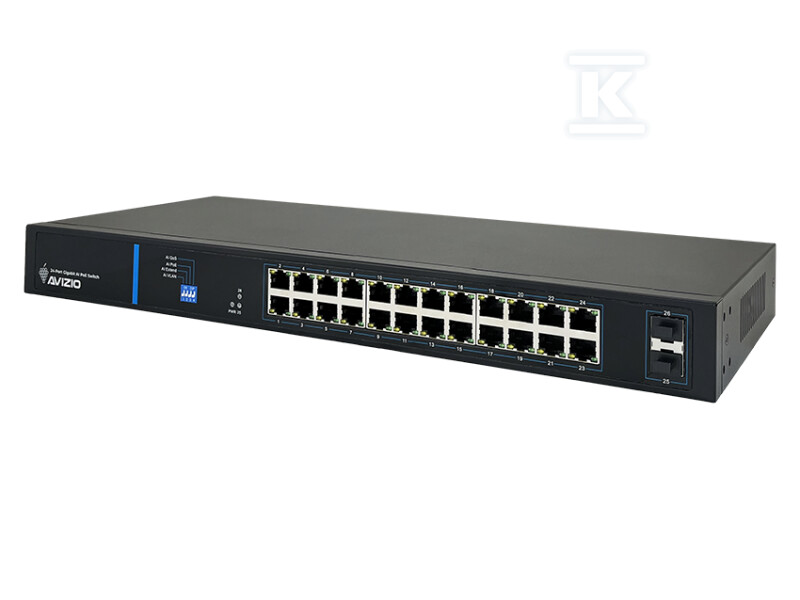

Unmanaged switch 24 ports RJ45 PoE+ 1Gb/s + 2 ports SFP Uplink 1Gb/s (power budget 250W) AVIZIO AV-SU24GP2F

Universal switch for demanding installations

This 24-port unmanaged switch is a solid solution for building a reliable network, especially in IP surveillance systems. It offers a combination of RJ45 ports with PoE+ and fast SFP uplink ports, making it a versatile tool for both professional installers and end users. Designed for continuous operation, it provides stable data transmission and power supply for connected devices.

Functionality and flexibility

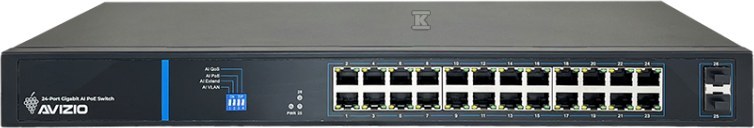

The switch is equipped with 24 RJ45 ports with a throughput of 1 Gb/s, supporting the PoE+ standard, which allows you to power IP cameras and other network devices directly from the switch – eliminating the need for additional power supplies. Two 1 Gb/s SFP uplink ports enable fast connection to other switches or network devices, increasing network throughput and scalability. A PoE power budget of 250W allows you to connect even energy-intensive cameras.

Additional configuration functions available via DIP switches allow you to adapt the device's operation to specific needs:

• AI VLAN: Isolation of ports 1-24 from ports 25 and 26 increases network security and reduces potential interference.
• AI EXTEND: The ability to transmit over a distance of up to 250m on ports 1-24 extends the network range without the need for repeaters.
• AI QoS: Prioritization of video packets ensures smooth image in IP surveillance systems, even under heavy network load.
• AI PoE: Automatic restart of PoE ports when a non-responding device is detected minimizes downtime and facilitates troubleshooting.

Solid construction and safety

The metal housing not only protects the device from mechanical damage but also effectively dissipates heat, ensuring stable operation even under heavy load. The ability to ground the housing further increases safety and reduces electromagnetic interference. The whole thing gives the impression of a solid product that will last a long time.
