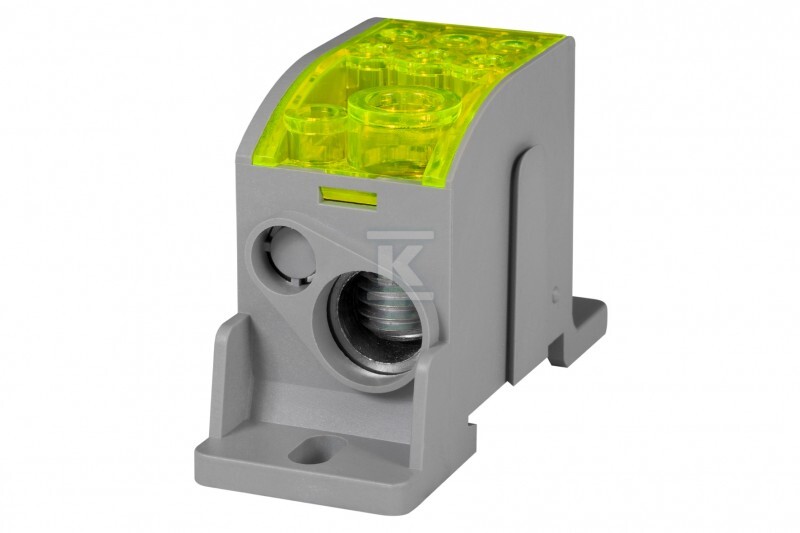

Distribution block LKN 125A (1x35/1x16 - 6x16) yellow F2.0336

Distribution block – reliable connections in electrical installations

The LKN 125A distribution block is a solid and versatile solution for connecting wires in electrical installations. Designed to work with copper (CU) and aluminum (AL) wires, it provides stable and safe connections, minimizing the risk of short circuits and failures. It will be suitable for both new installations and for the modernization of existing ones.

Construction and application

Made of high-quality polyamide (PA) with nickel-plated brass terminals, the LKN 125A block guarantees durability and corrosion resistance. Its construction allows the connection of one wire with a cross-section of 35 mm², one with a cross-section of 16 mm² and six wires with a cross-section of 16 mm². The possibility of mounting on a TH rail or as a fixed element gives flexibility in choosing the installation method. The IP20 protection class provides basic protection against touching and ingress of solid objects.

Advantages for the installer and end user

• Versatility: The ability to connect copper and aluminum wires eliminates the need for additional transition connectors.
• Safety: Stable connections minimize the risk of overheating and short circuits, increasing the safety of using the installation.
• Durability: The materials used – polyamide and nickel-plated brass – ensure a long service life of the distribution block, even in difficult operating conditions.
• Easy installation: The simple construction facilitates and speeds up the installation process, saving time and labor costs.
• Rated voltage: Designed to operate at a rated voltage of 690V, and the rated insulation voltage is 1000V.
• Compact dimensions: The dimensions of the block (77x31x47 mm) allow for mounting in a limited space.

The LKN 125A block is a reliable element of every electrical installation, providing safety, durability and ease of use for both professionals and end users.
