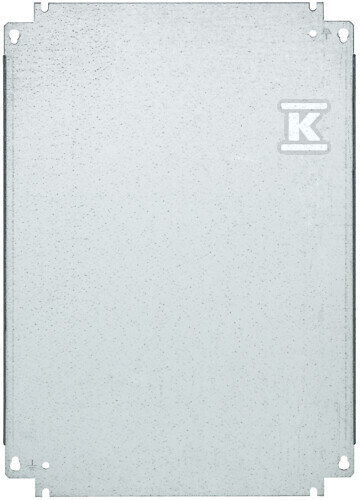

Metal mounting plate, 693x1230 mm FL419A

Purpose and compatibility with the Hager system

The FL419A mounting plate belongs to the Hager brand modular control and distribution cabinet system. It is designed for installation inside enclosures as a mounting plane for electrical components - circuit breakers, switches/disconnectors, terminal blocks, and other elements requiring stable mounting. The dimensions 693 × 1230 mm allow for its use in larger cabinets of this system, where a large working surface is required.

Construction and finish

The plate is made of aluminum - a material valued in electrical applications for its favorable strength-to-weight ratio. Aluminum does not rust like steel, which is important in industrial conditions. The surface is protected by galvanization, which further increases corrosion resistance - galvanizing protects the sheet metal against moisture and minor mechanical damage (scratches), which in the case of bare metal would lead to corrosion.

The plate is not perforated - it has a smooth working surface. The lack of perforation means a uniform load distribution across the entire surface and the absence of holes that could weaken the structure at critical points.

Installation and operation

The aluminum mounting plate weighs less than a steel equivalent of comparable dimensions, which facilitates transport and on-site installation. The galvanized surface does not require additional maintenance - standard cleaning during cabinet inspections is sufficient. The dimensions 693 × 1230 mm provide a format that allows for flexible component placement in both horizontal and vertical layouts (the plate can be mounted on any side).
