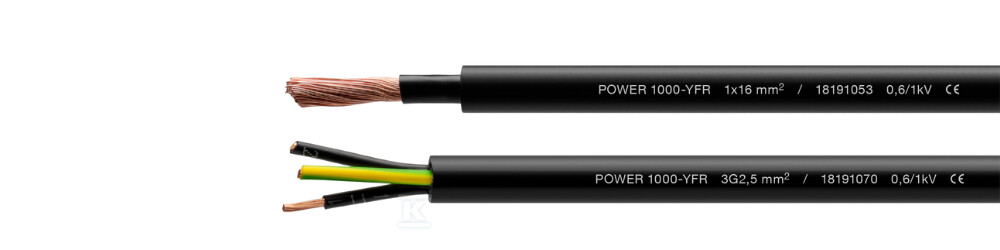

XLPE/PVC power and control cable POWER 1000-YFR 5G0.75 mm², black, conductors black, numbered according to DIN VDE 0293-334. 18191462
from 1 m7,75 zł
gross / m
from 500 m7,36 zł
gross / m
temporary unavailable
Series:POWER 1000-YFR
Onninen Index:DLQ266
Manufacturer's code:18191462
EAN:5906293314761
Bulk packaging:1 / 500 m
Suggested products
TECHNICAL DATA
Sales unit dimensions and weight: 1 m
length/width/height/weight:1 m / 0,0105 m / 0,0105 m / 0,151 kg
Customs code:85444995
XLPE/PVC power and control cable POWER 1000-YFR 5G0.75 mm², black, conductors black, numbered according to DIN VDE 0293-334. 18191462
The power and control cable is manufactured according to IEC 60502-1. It is used as a power and control cable for indoor and outdoor installations requiring UV resistance. The cable can be laid, for example, in cable ducts or directly in the ground. Direct laying in the ground is possible if the installation complies with established good installation practices – the cable should be laid on a special cable bedding that ensures stable and continuous drainage of standing water from the installation site. The cable buried in the ground must not be exposed to permanent submersion in water.
CERTIFICATES, APPROVALS, SAFETY, COMPLIANCE AND WARNINGS
Declaration of Conformity
Attachments
