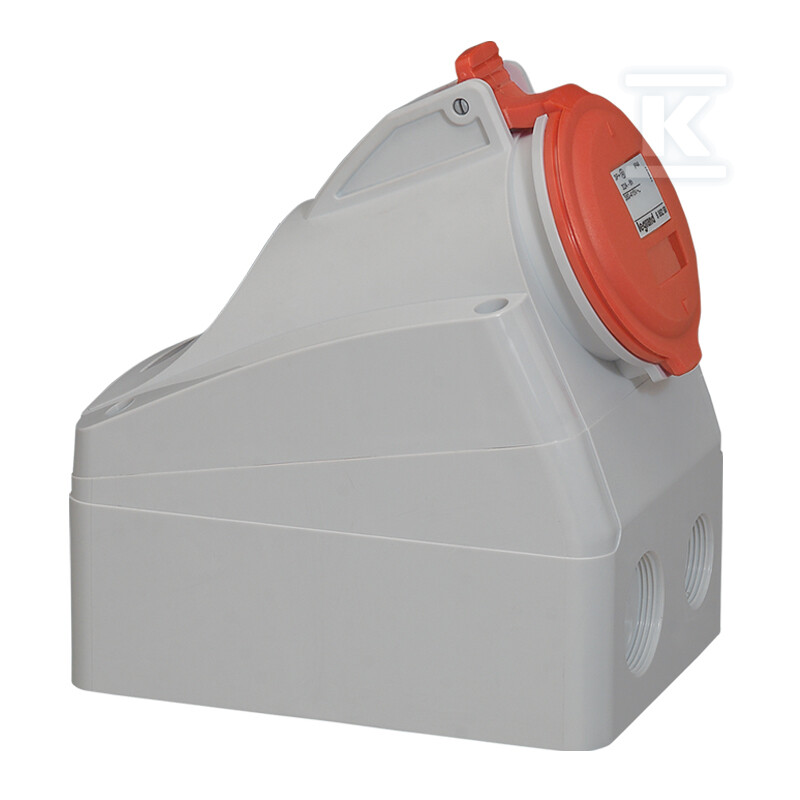

Fixed socket 32 A 3P+N+Z 400 V IP44 555259

Industrial CEE fixed socket for demanding installations

The LEGRAND P17 Tempra Pro fixed socket is a professional solution for industrial installations requiring reliable 32A power at 400V voltage. The 3P+N+Z model (3 phases + neutral + earth) provides complete functionality for modern electrical systems.

Construction and materials resistant to harsh conditions

The housing made of polyamide 6 guarantees exceptional durability in industrial environments. The material is characterized by high temperature resistance - the contact support withstands 850°C, and the housing 650°C. The IP44 protection rating protects against dust and water splashes, allowing for installation both indoors and outdoors.

Mechanical strength confirmed by the IK09 class ensures resistance to impacts with energy up to 10J. The compact design with dimensions of 113×156×161 mm facilitates installation in limited spaces, and the M32 cable entry diameter allows for the secure introduction of thick conductors.

Operating parameters and safety

The device operates in a wide voltage range of 380-415V~ at a frequency of 50/60Hz, making it universal for various power systems. Compliance with IEC/EN 60309-1 and IEC/EN 60309-2 standards guarantees international safety and compatibility standards.

Screw terminals ensure a secure connection of conductors with a cross-section adapted to the 32A load. The absence of additional overcurrent or residual current protections allows for flexible integration with existing protection systems in the distribution board.

Application and mounting

Wall mounting enables stable attachment to a vertical surface. A single socket with a Type F earth contact (CEE 7/3) further expands the possibilities for connecting auxiliary loads. The grey color of the housing blends discreetly into most industrial installations.
