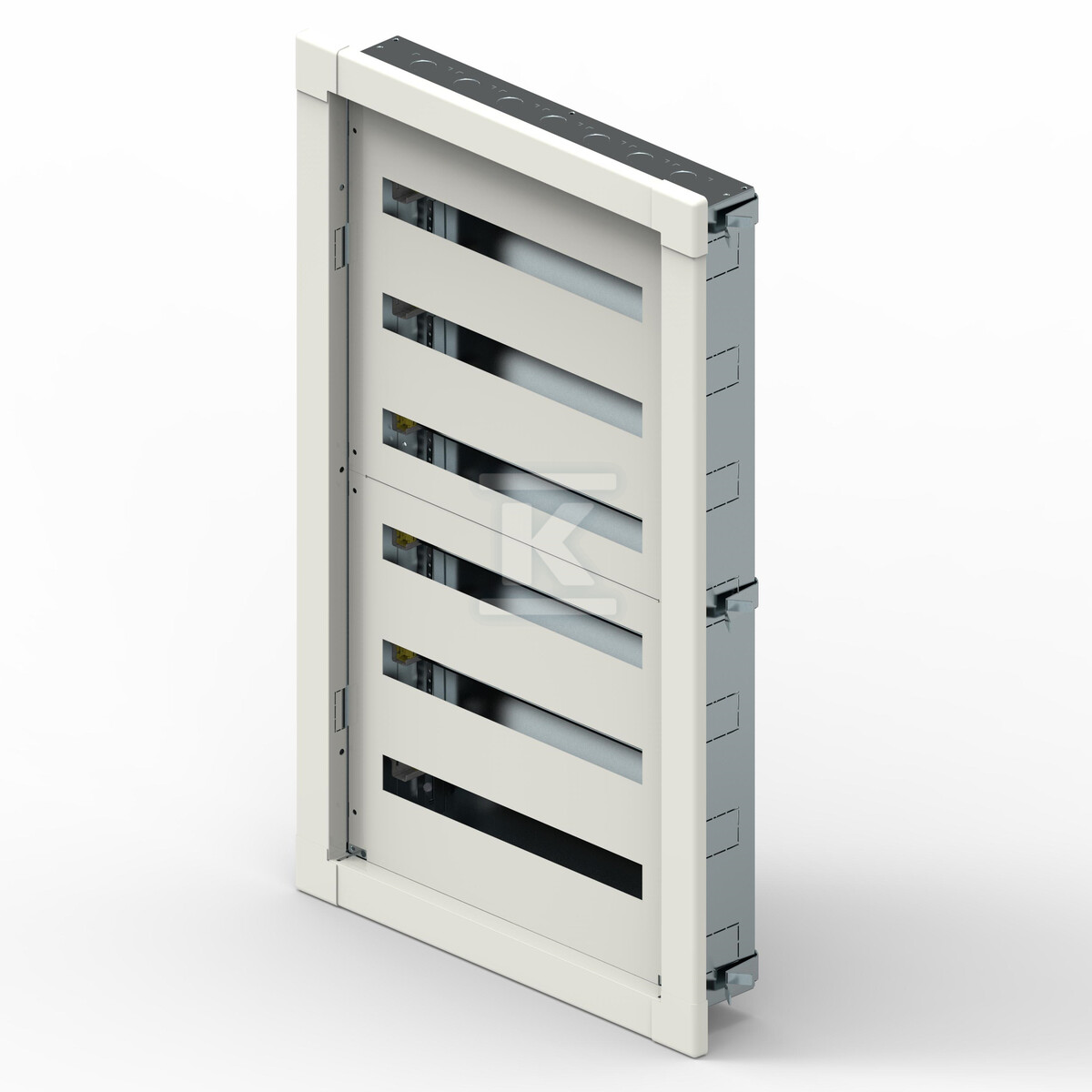

Flush-mounted distribution box XL3 S 160 6x36 modules (216 modular) - without door 337236

Flush-mounted distribution board for electrical installations – reliability and flexibility

The XL3 S 160 distribution board is a solid solution for building safe and functional electrical installations. Designed for flush mounting, it provides an aesthetic appearance and discreet placement in the room. The construction allows for the installation of up to 216 modules, making it ideal for both residential and commercial properties.

Construction and mounting

Made of durable steel, the distribution board guarantees durability and resistance to mechanical damage. It has DIN rails for mounting modular devices, and independent adjustment of the TH35 bracket depth facilitates precise adaptation to the needs of a specific installation. Flush mounting requires proper preparation of the opening in the wall, but ensures a neat appearance without protruding elements. The mounting plate included in the set further facilitates the installation process.

Application and compliance with standards

The XL3 S 160 distribution board is perfect for electrical power distribution systems, enabling safe and efficient circuit management. It meets safety requirements, and the IP30 protection class protects against accidental contact with live wires and the ingress of solid objects larger than 2.5 mm. Please note that the door for the distribution board is sold separately, allowing you to match its appearance to the interior design. The color of the housing (RAL 9003) is classic white, which easily blends with various arrangements.

Key product features

• Capacity: 6 rows of 36 modules each (total of 216 modules) – provides space for a large number of protective and control devices.
• Material: Durable steel housing – guarantees durability and resistance to damage.
• Mounting: Flush-mounted – provides an aesthetic appearance and discreet placement of the distribution board.
• DIN rails: Yes – enables easy mounting of modular devices.
• Protection class: IP30 – protects against accidental contact with live wires and the ingress of solid objects larger than 2.5 mm.
• Bracket adjustment: Independent adjustment of the TH35 bracket depth - facilitates precise adaptation to the needs of a specific installation
• Expandability: Yes - allows you to adapt the distribution board to changing energy needs of the building.
• Dimensions: Height 1190 mm, width 595 mm, depth 135 mm - important when planning the installation location.
