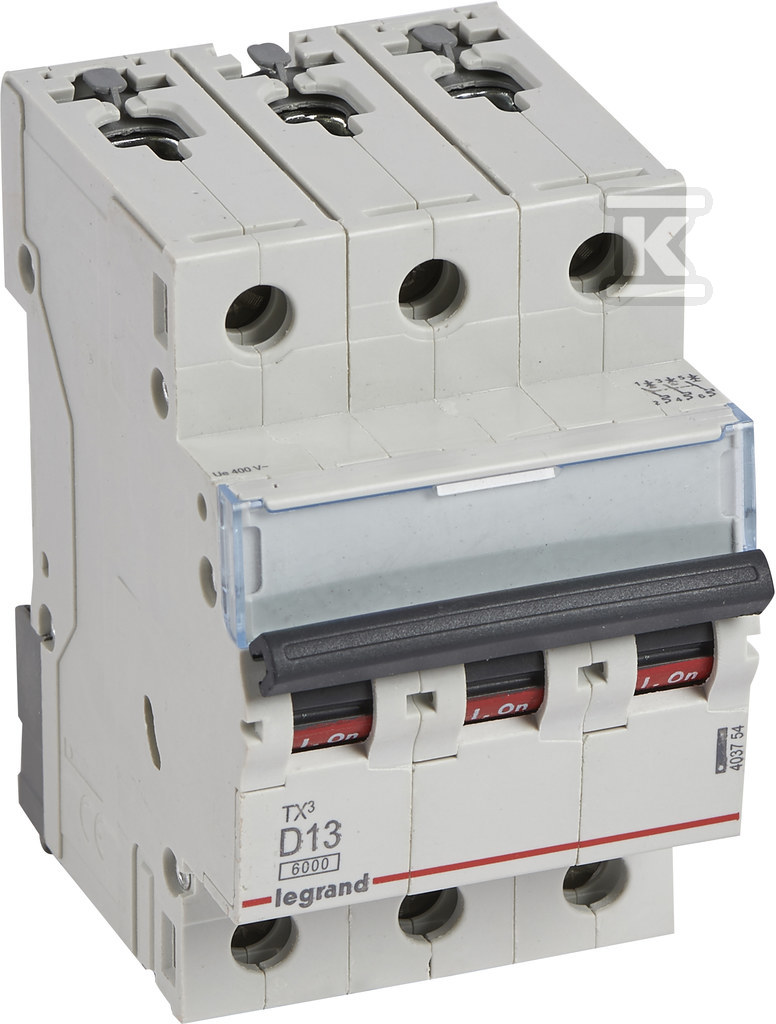

Miniature circuit breaker S 303 3P D 13A 6000A TX3 403754
Series:S30TX
Onninen Index:HEC545
Manufacturer's code:
403754
Catalog numbers:
- 605749
EAN:
3245066057491
- 3414970391216
Bulk packaging:1 / 20 / 200 pcs
Suggested products
TECHNICAL DATA
Sales unit dimensions and weight: 1 pcs
length/width/height/weight/volume:0,097 m / 0,058 m / 0,088 m / 0,425 kg / 0,001 m3
Customs code:85362090
Miniature circuit breaker S 303 3P D 13A 6000A TX3 403754
S 300 series circuit breakers, S 303 three-pole Rated voltage: 400V AC Level of security: Mounting: TH35 rail Color: gray RAL 7035 Rated current: 13 A. Characteristics: D Rated breaking capacity: 6 kA Maximum voltage: 440 V AC Mechanical life: 20,000 changes. Rated frequency: 50 to 60 Hz Number of Poles: 3 Insulation voltage: 500V Electrical life: 4000 operations Minimum voltage: 12 V AC
