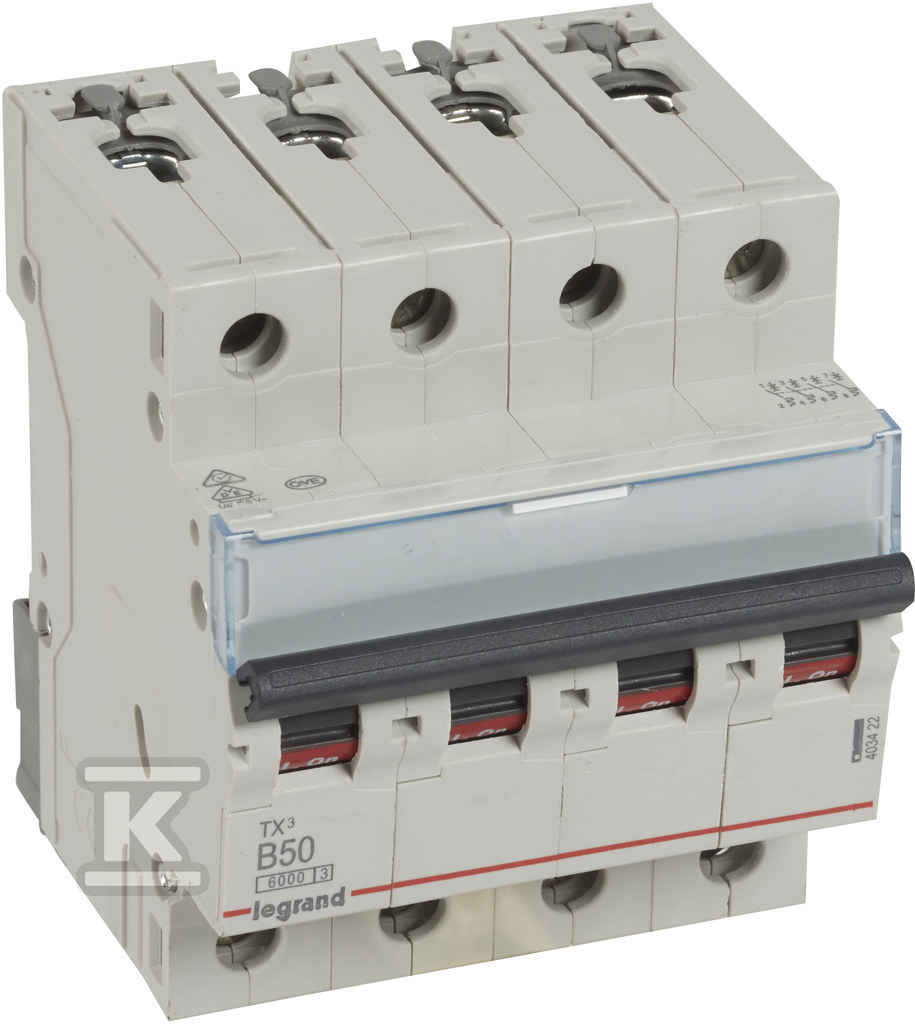

Miniature circuit breaker S 304 4P B 50A 6000A TX3 403422

Miniature circuit breaker S 304 4P B - 403422
od 1 pcs234,03 zł
gross / pcs
to order
Payment methods
%
Benefits for companies
Brand Legrand
Series:S30TX
Onninen Index:HEC470
Manufacturer's code:
403422

List of old codes:

  • 605575
EAN:3414970387943, 3245066055756
Bulk packaging:1 / 216 pcs
Download the card

Miniature circuit breaker S 304 4P B 50A 6000A TX3 403422 - description

S 300 series miniature circuit breakers, S 304 four-pole
Rated voltage: 400V AC
Level of security:
Mounting: TH35 rail
Color: gray RAL 7035
Rated current: 50 A.
Characteristics: B
Rated breaking capacity: 6 kA
Maximum voltage: 440 V AC
Mechanical life: 20,000 changes.
Rated frequency: 50 to 60 Hz
Number of poles: 4
Insulation voltage: 500V
Electrical life: 4000 operations
Minimum voltage: 12 V AC

TECHNICAL DATA

Sales unit dimensions and weight: 1 pcs

length/width/height/weight/volume:0,104 m / 0,08 m / 0,086 m / 0,554 kg / 0,001 m3
Customs code:85362090

CERTIFICATES AND APPROPRIATES

Declaration of Conformity
