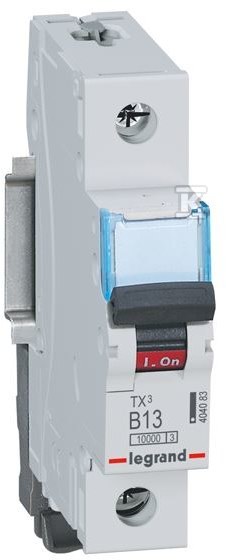

Miniature circuit breaker S 311 1P B 13A 10000A TX3 404083

Miniature circuit breaker S 311 1P B - 404083
Miniature circuit breaker S 311 1P B - 404083
Miniature circuit breaker S 311 1P B - 404083
Miniature circuit breaker S 311 1P B - 404083
od 1 pcs53,09 zł
gross / pcs
to order
Payment methods
%
Benefits for companies
Brand Legrand
Series:S31TX
Onninen Index:HEC555
Manufacturer's code:
404083

List of old codes:

  • 006698
EAN:
3245060066987
  • 3414970391834
Bulk packaging:1 / 10 / 100 / 3000 pcs
Download the card

Miniature circuit breaker S 311 1P B 13A 10000A TX3 404083 - description

Miniature circuit breakers, S 310 series, single-pole S 311
Rated Voltage: 230/400V AC
Level of security:
Mounting: TH35 rail
Color: gray RAL 7035
Rated current: 13 A.
Characteristics: B
Rated breaking capacity: 10 kA
Maximum voltage: 440 V AC
Mechanical life: 20,000 changes.
Rated frequency: 50 to 60 Hz
Number of Poles: 1
Insulation voltage: 500 V AC
Electrical life: 10,000 operations

TECHNICAL DATA

Sales unit dimensions and weight: 1 pcs

length/width/height/weight/volume:0,184 m / 0,1 m / 0,088 m / 1,253 kg / 0,002 m3
Customs code:85362090

CERTIFICATES AND APPROPRIATES

Declaration of Conformity
