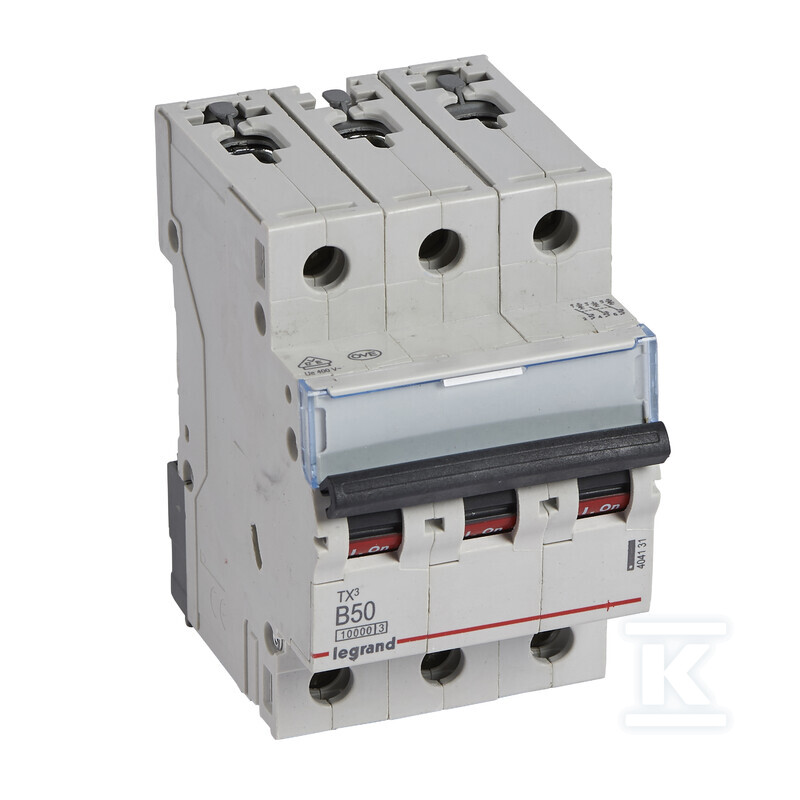

Miniature circuit breaker S 313 3P B 50A 10000A TX3 404131

Miniature circuit breaker S 313 3P B - 404131
Miniature circuit breaker S 313 3P B - 404131
Miniature circuit breaker S 313 3P B - 404131
Miniature circuit breaker S 313 3P B - 404131
od 1 pcs277,97 zł
gross / pcs
to order
Payment methods
%
Benefits for companies
Brand Legrand
Series:S31TX
Onninen Index:HEC573
Manufacturer's code:
404131

List of old codes:

  • 006785
EAN:
3245060067854
  • 3414970392794
Bulk packaging:1 / 200 pcs
Download the card

Miniature circuit breaker S 313 3P B 50A 10000A TX3 404131 - description

Miniature circuit breakers of the S 310 series, three-pole S 313
Rated voltage: 400V AC
Level of security:
Mounting: TH35 rail
Color: gray RAL 7035
Rated current: 50 A.
Characteristics: B
Rated breaking capacity: 10 kA
Maximum voltage: 440 V AC
Mechanical life: 20,000 changes.
Rated frequency: 50 to 60 Hz
Number of Poles: 3
Insulation voltage: 500 V AC
Electrical life: 10,000 operations

TECHNICAL DATA

Sales unit dimensions and weight: 1 pcs

length/width/height/weight/volume:0,097 m / 0,058 m / 0,088 m / 0,391 kg / 0,001 m3
Customs code:85362090
