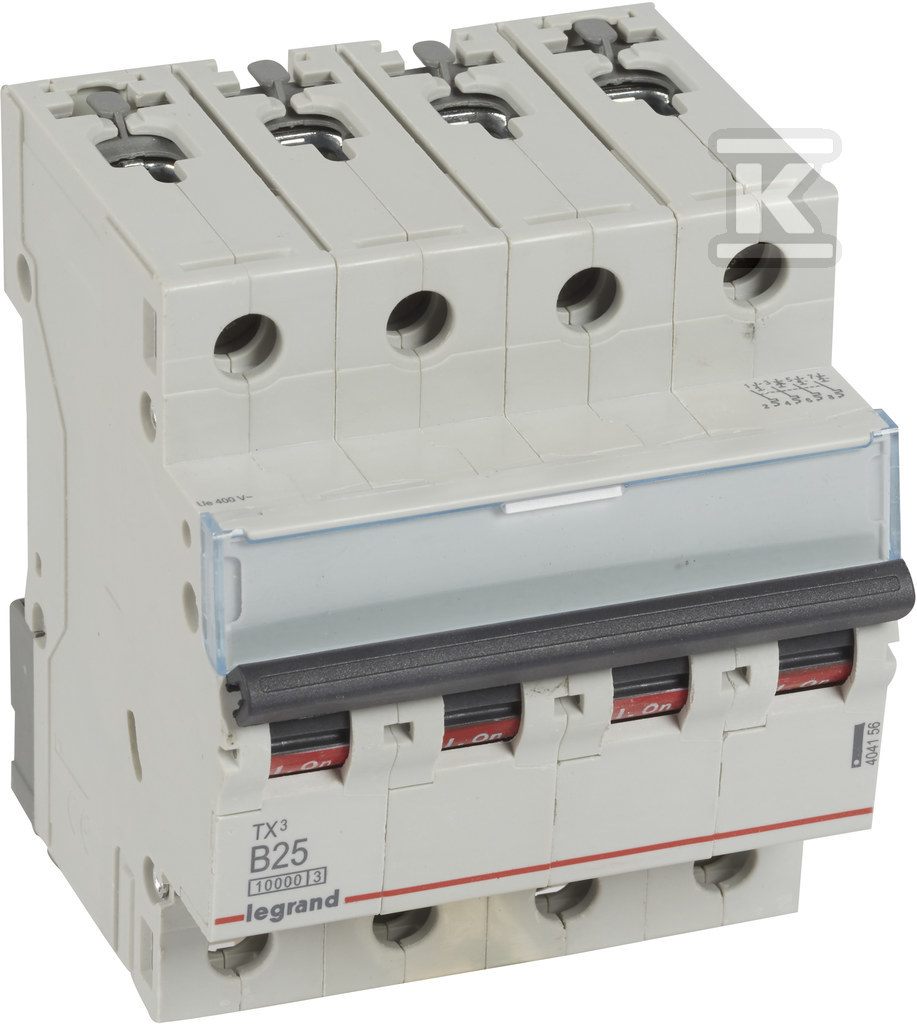

Miniature circuit breaker S 314 4P B 25A 10000A TX3 404156

Miniature circuit breaker S 314 4P B - 404156
Miniature circuit breaker S 314 4P B - 404156
Miniature circuit breaker S 314 4P B - 404156
Miniature circuit breaker S 314 4P B - 404156
od 1 pcs265,04 zł
gross / pcs
to order
Payment methods
%
Benefits for companies
Brand Legrand
Series:S31TX
Onninen Index:HEC577
Manufacturer's code:
404156

List of old codes:

  • 006842
EAN:
3245060068424
  • 3414970393296
Bulk packaging:1 / 120 pcs
Download the card

Miniature circuit breaker S 314 4P B 25A 10000A TX3 404156 - description

Miniature circuit breakers, S 310 series, four-pole S 314
Rated voltage: 400V AC
Level of security:
Mounting: TH35 rail
Color: gray RAL 7035
Rated current: 25 A.
Characteristics: B
Rated breaking capacity: 10 kA
Maximum voltage: 440 V AC
Mechanical life: 20,000 changes.
Rated frequency: 50 to 60 Hz
Number of poles: 4
Insulation voltage: 500 V AC
Electrical life: 10,000 operations

TECHNICAL DATA

Sales unit dimensions and weight: 1 pcs

length/width/height/weight/volume:0,101 m / 0,078 m / 0,089 m / 0,552 kg / 0,001 m3
Customs code:85362090

CERTIFICATES AND APPROPRIATES

Declaration of Conformity
