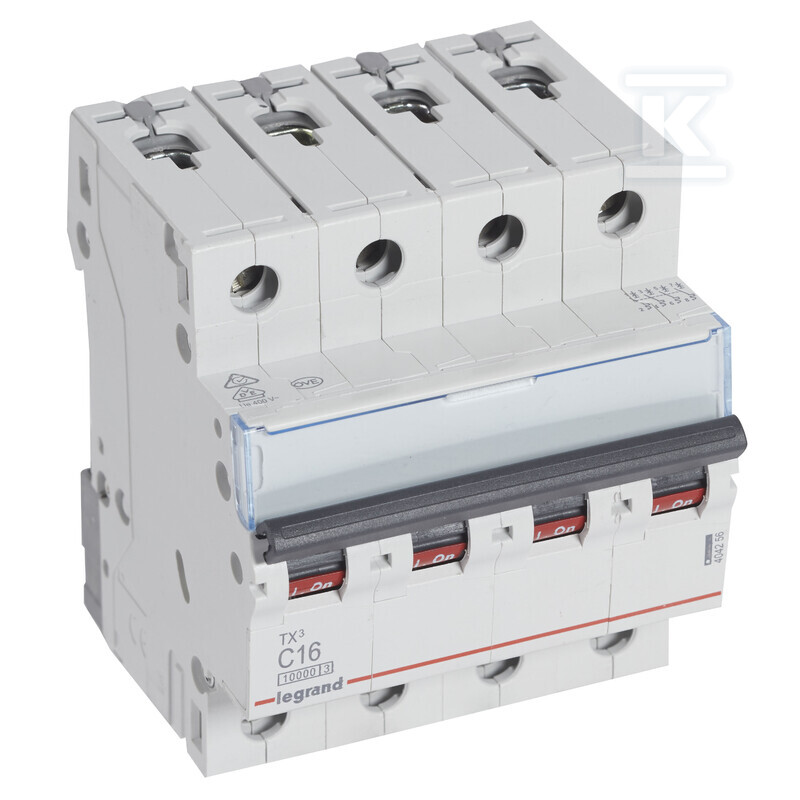

Miniature circuit breaker S 314 4P C 16A 10000A TX3 404256
Series:S31TX
Onninen Index:HEC613
Manufacturer's code:
404256
Catalog numbers:
- 007000
EAN:
3414970394897
- 3245060070007
Bulk packaging:1 / 12 / 240 pcs
Suggested products
TECHNICAL DATA
Sales unit dimensions and weight: 1 pcs
length/width/height/weight/volume:0,101 m / 0,078 m / 0,089 m / 0,517 kg / 0,001 m3
Customs code:85362090
Miniature circuit breaker S 314 4P C 16A 10000A TX3 404256
Miniature circuit breakers, S 310 series, four-pole S 314 Rated voltage: 400V AC Level of security: Mounting: TH35 rail Color: gray RAL 7035 Rated current: 16 A. Characteristics: C. Rated breaking capacity: 10 kA Maximum voltage: 440 V AC Mechanical life: 20,000 changes. Rated frequency: 50 to 60 Hz Number of poles: 4 Insulation voltage: 500 V AC Electrical life: 10,000 operations
CERTIFICATES, APPROVALS, SAFETY, COMPLIANCE AND WARNINGS
Declaration of Conformity
Information about websites
Attachments
