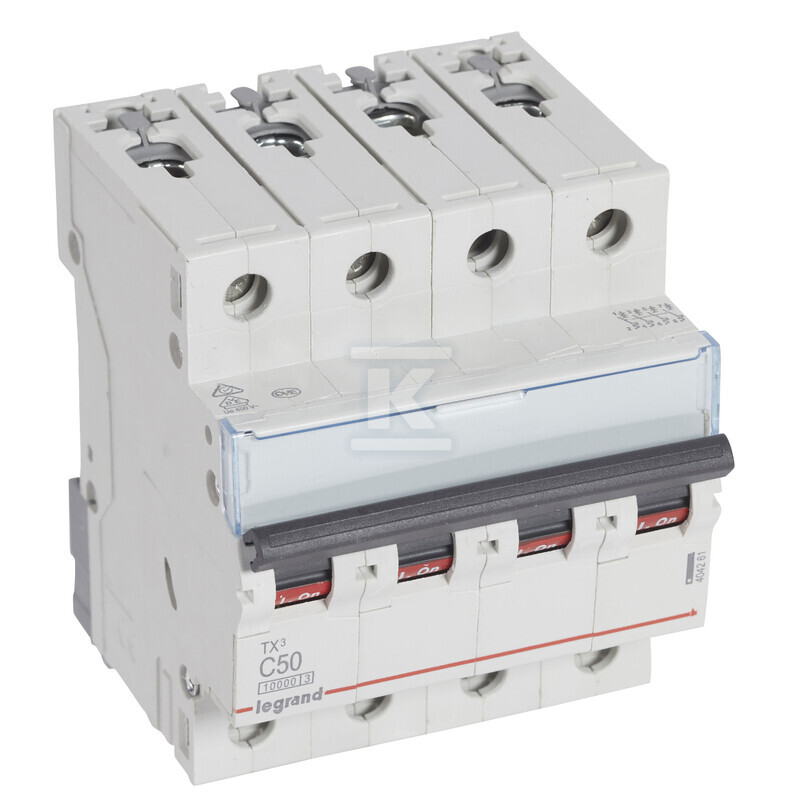

Miniature circuit breaker S 314 4P C 50A 10000A TX3 404261
Series:S31TX
Onninen Index:HEC618
Manufacturer's code:
404261
Catalog numbers:
- 007005
EAN:
3414970394996
- 3245060070052
Bulk packaging:1 / 12 / 240 pcs
Suggested products
TECHNICAL DATA
Sales unit dimensions and weight: 1 pcs
length/width/height/weight:0,0708 m / 0,088 m / 0,0778 m / 0,567 kg
Customs code:85362090
Miniature circuit breaker S 314 4P C 50A 10000A TX3 404261
Miniature circuit breakers, S 310 series, four-pole S 314 Rated voltage: 400V AC Level of security: Mounting: TH35 rail Color: gray RAL 7035 Rated current: 50 A. Characteristics: C. Rated breaking capacity: 10 kA Maximum voltage: 440 V AC Mechanical life: 20,000 changes. Rated frequency: 50 to 60 Hz Number of poles: 4 Insulation voltage: 500 V AC Electrical life: 10,000 operations
