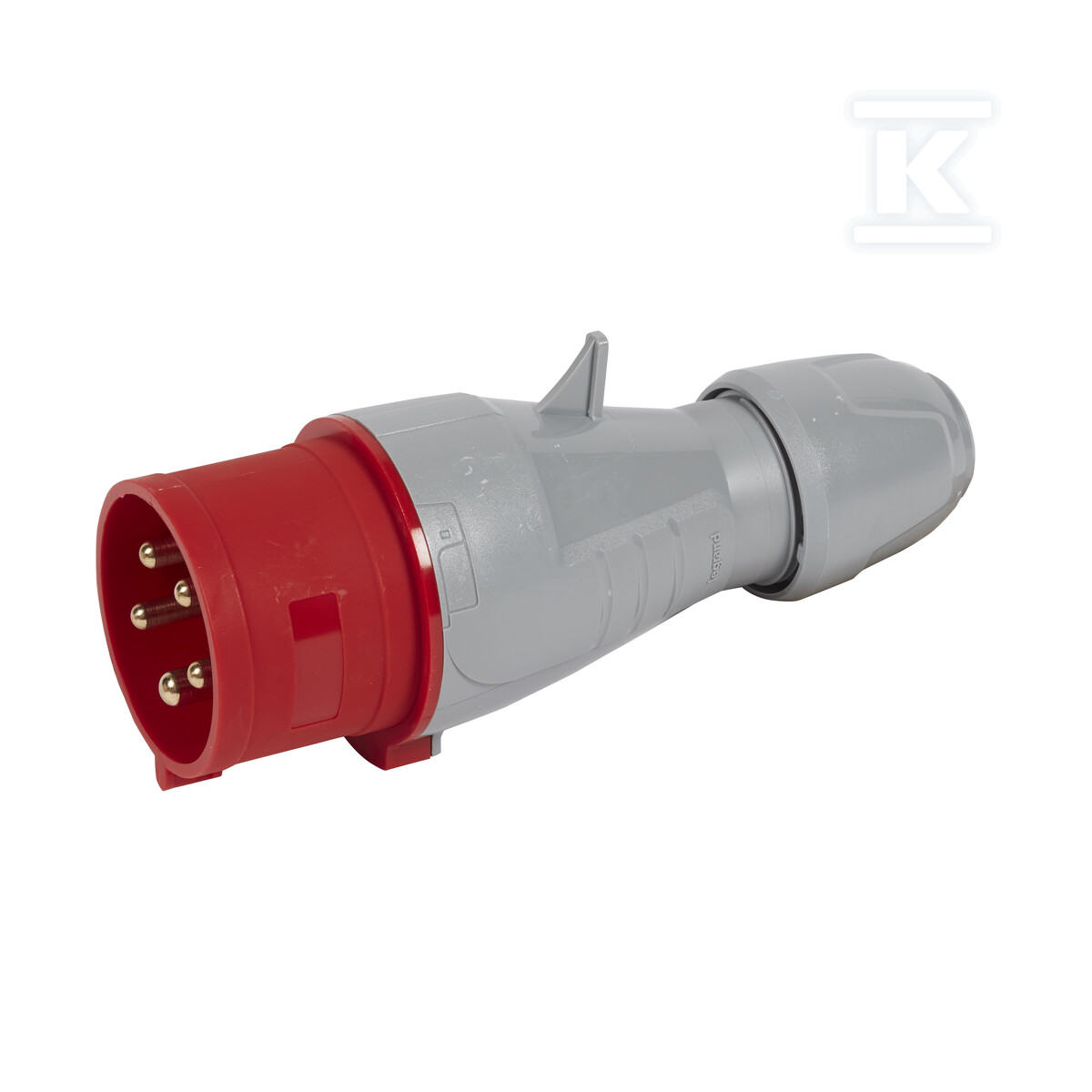

Portable plug 32 A 3P+N+PE 400 V IP44 555239

Professional industrial plug for demanding installations

The 32 A 3P+N+Z 400 V IP44 portable plug by LEGRAND is a high-quality solution for professional electrical installations in industrial and semi-industrial environments. Designed in accordance with international IEC/EN 60309 standards, it guarantees safe and reliable connections for high-power receivers.

Electrical parameters and connection safety

The device operates at a rated current of 32 A and a voltage of 380-415 V~ with a frequency of 50/60 Hz, making it ideal for powering electric motors, pumps, compressors, and other industrial devices with high current consumption. The 5-pole (3P+N+Z) design ensures full functionality - three phases, neutral, and protective earth.

The grounding contact position according to the 6h standard guarantees compatibility with sockets of the same series and eliminates the risk of incorrect phase connection. The non-reversing feature ensures standard pole orientation, simplifying installation and operation.

Construction and resistant materials

The housing made of polyamide 6 is characterized by high mechanical and thermal resistance. The material withstands glow wire temperatures of up to 850°C in conducting parts and 650°C in the housing, ensuring safety even in the event of an arc fault.

The IP44 protection rating protects against dust and water splashes, allowing for use both indoors and outdoors. The IK09 impact resistance class guarantees resistance to accidental mechanical damage during transport and operation.

The red color according to the RAL 3000 standard facilitates identification of the operating voltage and quick localization in switchgear or distribution boards.

Installation and operation

The simple cable entry direction through the gland allows for easy installation of various types of conductors without the need for bending or twisting. The screw terminals accommodate conductors with a cross-section of up to 6 mm², ensuring a secure electrical connection resistant to loosening during operation.

The operating temperature ranging from 0°C to +120°C allows for use in a wide range of environmental conditions - from cold storage to high-temperature rooms. Compact dimensions (18.5 cm in height) facilitate installation even in limited spaces.

Regulatory compliance and certificates

The product meets the requirements of the RoHS directive, containing no substances harmful to the environment. Compliance with NBR IEC 60309-1 standards confirms European electrical safety standards.

Each unit has a unique EAN13 identification code (3245065552393) enabling full product traceability throughout its entire life cycle - from production through distribution to final disposal.
