Pipe elbow type SBN25 G 2046810

Steel pipe elbow for electrical installations

This is an SBN25 G type pipe elbow, made of metal and protected with galvanized coating, designed for connecting electrical conduit pipes with a nominal diameter of 25 mm. It is an essential element in creating cable installations in cable protection systems, ensuring safe and durable connections.

Construction and application

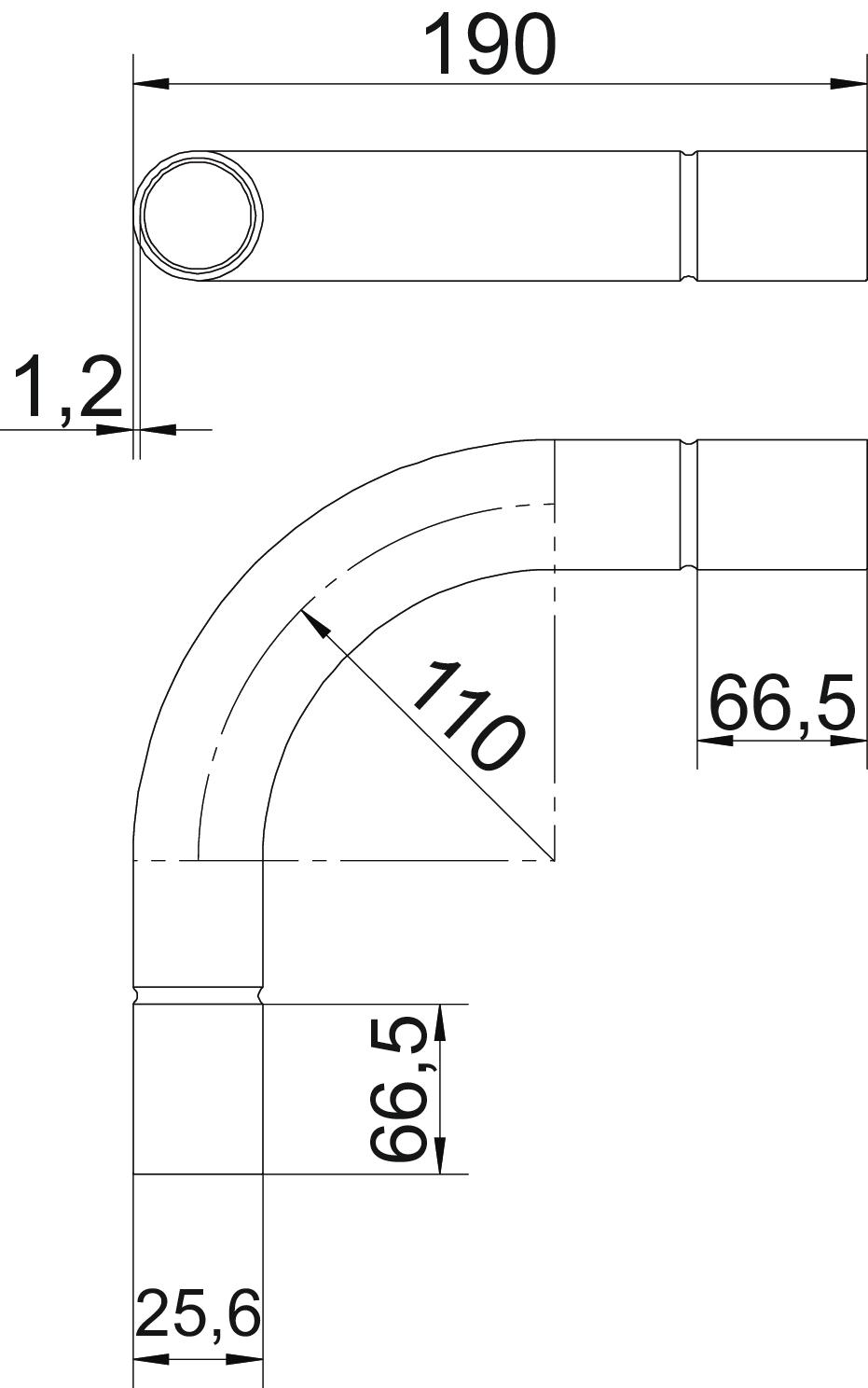

The elbow has a 90-degree bend and is equipped with a socket connection, which facilitates and speeds up installation. The absence of a thread eliminates the risk of cable damage during insertion and allows for faster connection. The smooth internal structure minimizes the risk of damage to cable insulation during cable pulling. The outer diameter of the elbow is 28 mm.

The SBN25 G elbow is compatible with armored steel conduit pipes, meeting the EN 61386-1 standard. Its construction ensures maintaining the E30/E90 function, which means that the installation maintains its integrity and ability to protect cables in the event of a fire for a specified time. The galvanized surface provides both internal and external anti-corrosion protection, which extends the life of the element and the entire installation.

• Quick installation: The absence of a thread significantly reduces installation time.
• Cable protection: The smooth internal structure prevents damage to insulation during cable pulling.
• Durability: Galvanized coating provides effective corrosion protection.
• Safety: Ensures maintaining the E30/E90 function in case of fire.
• Compatibility: Designed for armored steel conduit pipes according to EN 61386-1 standard.
