Fixed switchgear type BYTOM input 2xM40 output 63/5xB63 3P 32/5xB32 3P 16/5xB16 3PGSx63B67 1PGSx63B67 92403250W

from 1 pcs2 184,53 zł
gross / pcs
to order
Brand PCE
Series:BYTOM
Onninen Index:HDN297
Manufacturer's code:92403250W
EAN:5902082064701
Bulk packaging:1 pcs

Suggested products

TECHNICAL DATA

Sales unit dimensions and weight: 1 pcs

length/width/height/weight/volume:0,37 m / 0,37 m / 0,37 m / 5 kg / 0,051 m3
Customs code:85366910

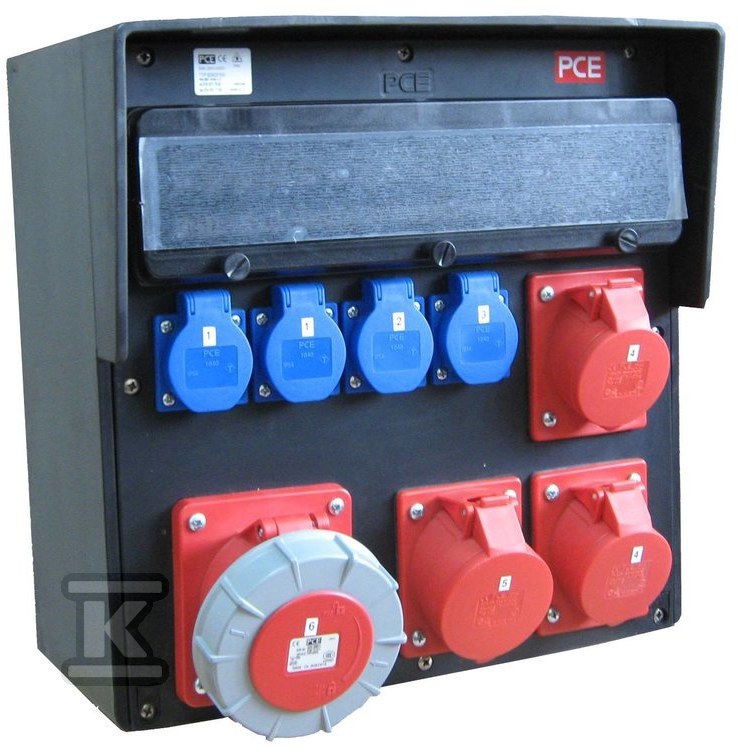

Fixed switchgear type BYTOM input 2xM40 output 63/5xB63 3P 32/5xB32 3P 16/5xB16 3PGSx63B67 1PGSx63B67 92403250W

Fixed switchgear type BYTOM input 2xM40 output 63/5xB63 3P 32/5xB32 3P 16/5xB16 3PGSx63B67 1PGSx63B67

You are looking for the optimal solution for commissioned or started projects. You don't want to waste time tediously searching for basic information about a product.
Familiarize yourself with the technical description of the product from our offer. We provide professional and comprehensive services to contractors and others.

CEE 32A socket outlet: 1x32A 5p 400V
Width: 370 mm
Housing material: Plastic
Depth: 203 mm
Degree of protection (IP): IP67
CEE 16A socket outlet: 1x16A 5p 400V
Residual Current Device: 30mA Residual Current Device (Standard)
Number of safety contact sockets (SCHUKO): 4
Protection type: Overcurrent
Advantages of the product group:
Unbreakable, free of additional halogens, resistant to aging housing.
Very high resistance to various chemicals and oils, greases, acids, etc.
High resistance to corrosion and mechanical damage.
Resistant to the influence of UV rays and ozone.
Insensitive to welding sparks etc.
Temperature resistant from -30 ° C to + 80 ° C.
Self-extinguishing and non-flammable in accordance with EN 60695-11-5.
TOP installation of all switchgear components: sockets, protections are mounted on the top of the housing, easy to attach to the wall.
Protective insulation thanks to the concealed fixing holes on the outside of the installation space.
All external parts are made of stainless steel.
Security features are
