Biological treatment plant with activated sludge, SBR MS TWINBLOC, sewage capacity 0.6M3/24h,zbiornikI 1X5000L, number of users (PE): 1-4 1135006969

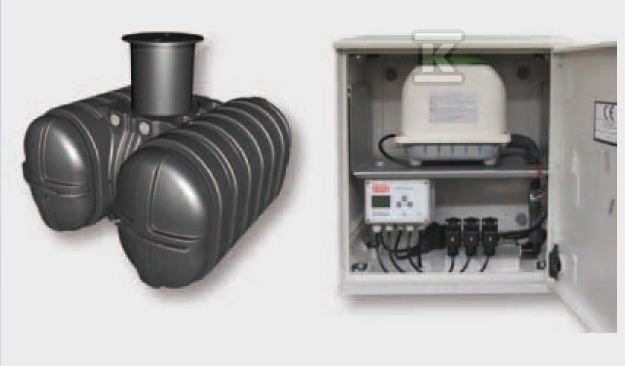

Micro-Step Twinbloc is a fully biological hybrid wastewater treatment plant, tested according to EN 12566-3. The treatment technology is based on the activated sludge and fixed bed method. The technological process is carried out in the SBR reactor.
The device consists of 3 treatment chambers:
- pre-treatment zones with a sludge tank and a cyclically controlled transport system to further treatment chambers,
- biological zone with a pipe aerator and biomass generator and a sludge recirculation system to the pre-treatment zone
- secondary treatment zone with a separator pipe as an additional treatment system.
