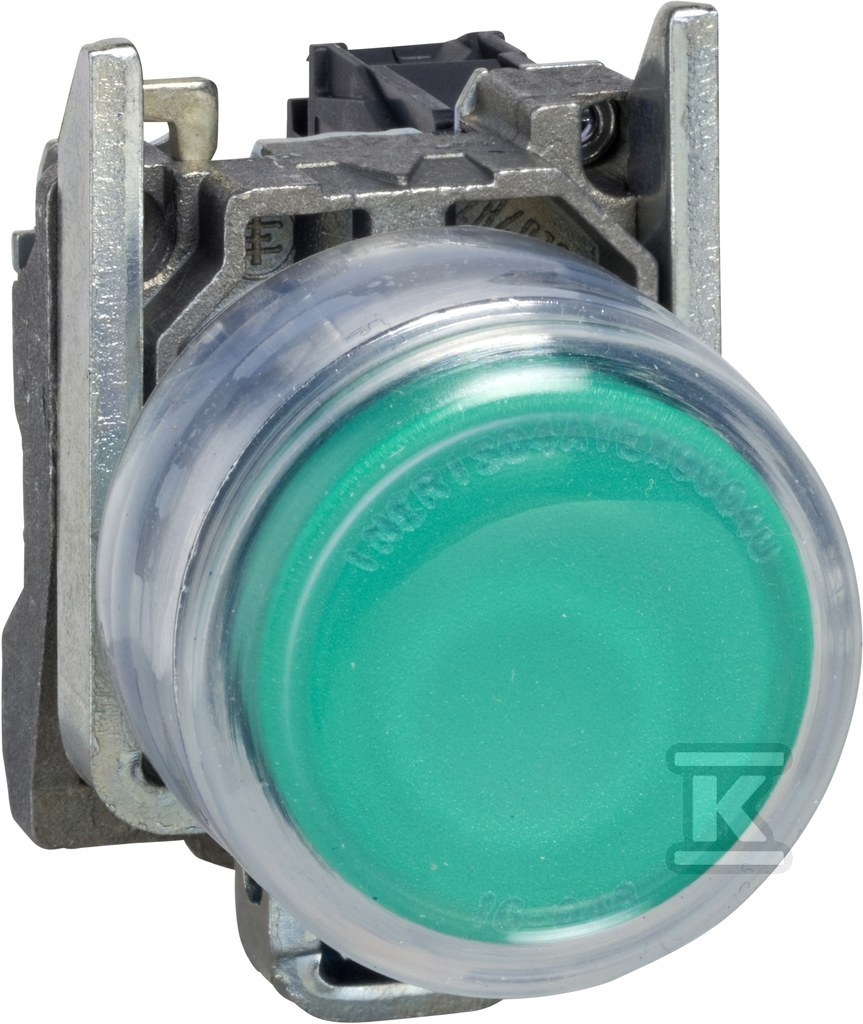

Green illuminated push button Ø 22 240 V ATEX Harmony XB4 XB4BP383M5EX

Control button for harsh environments

This green, illuminated Harmony XB4 control button with a diameter of 22 mm is designed for mounting in control panels and machines. The ATEX characteristic makes it ideal for operation in potentially explosive atmospheres. The construction with a metal front ring and an IP65 degree of protection guarantees durability and reliability even in demanding industrial conditions.

Construction and functionality

The button is designed for easy installation and use. The flat design of the button and the chrome front ring provide an aesthetic appearance and comfortable operation. LED illumination at 230 V increases visibility in low light conditions, which is particularly important in industrial environments. Screw connection facilitates quick and secure connection to the electrical installation.

The button has one normally open contact (1NO), which means that the circuit is normally closed and opens when the button is pressed. The self-resetting mechanism ensures automatic return to the initial position after the button is released. The round shape of the lens and the green color make it easier to identify the function of the button. The mounting hole diameter is 22.5 mm, ensuring compatibility with most standard control panels.
