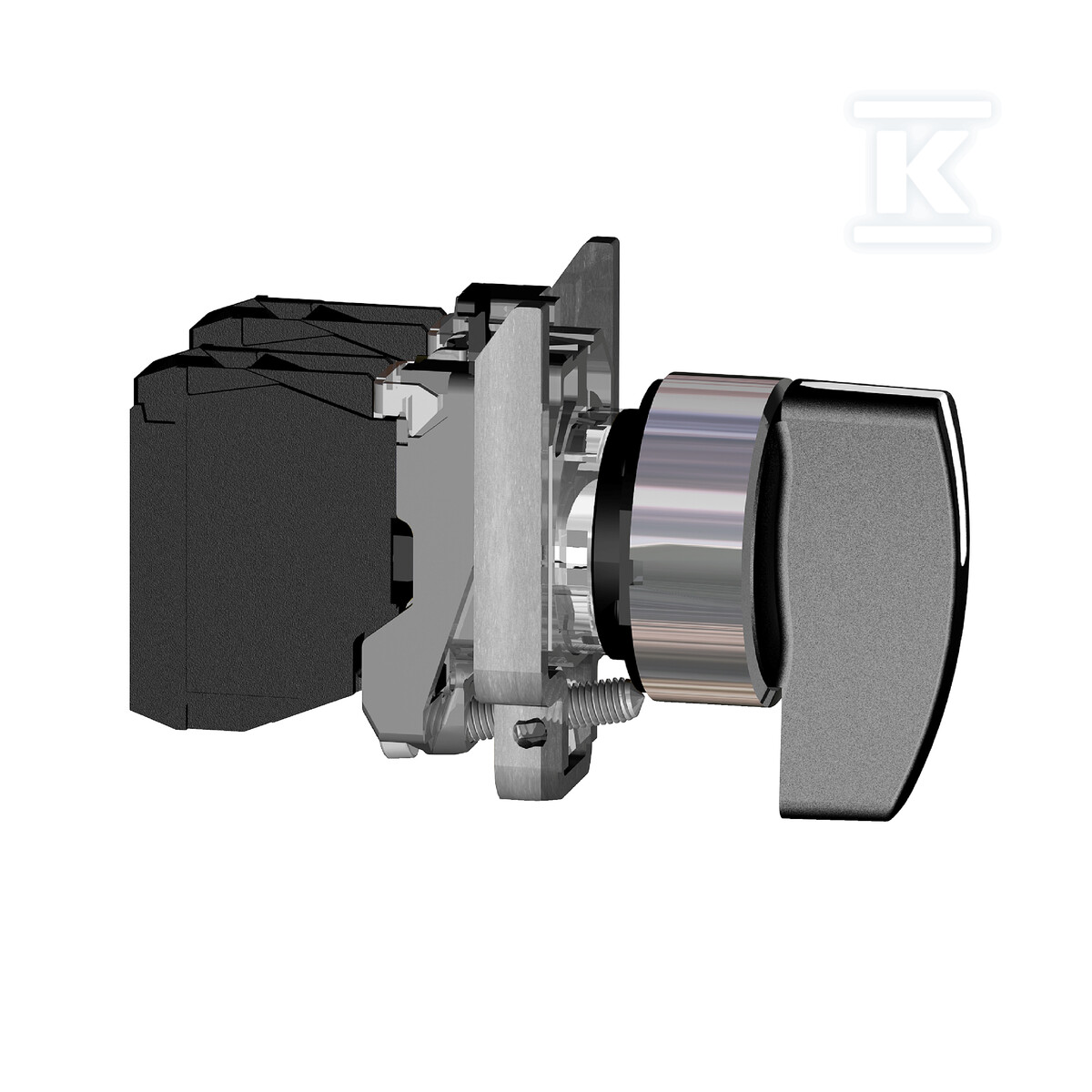

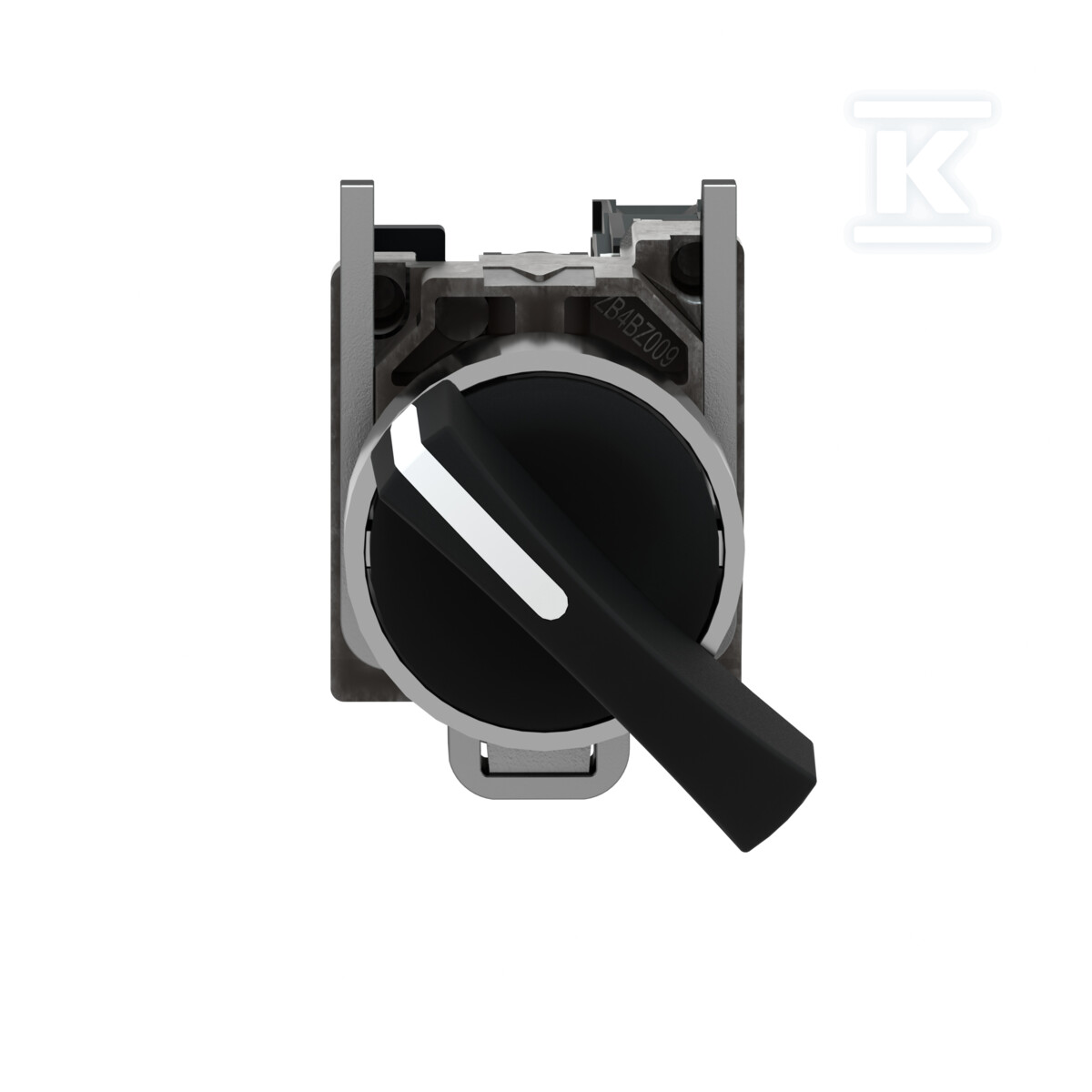

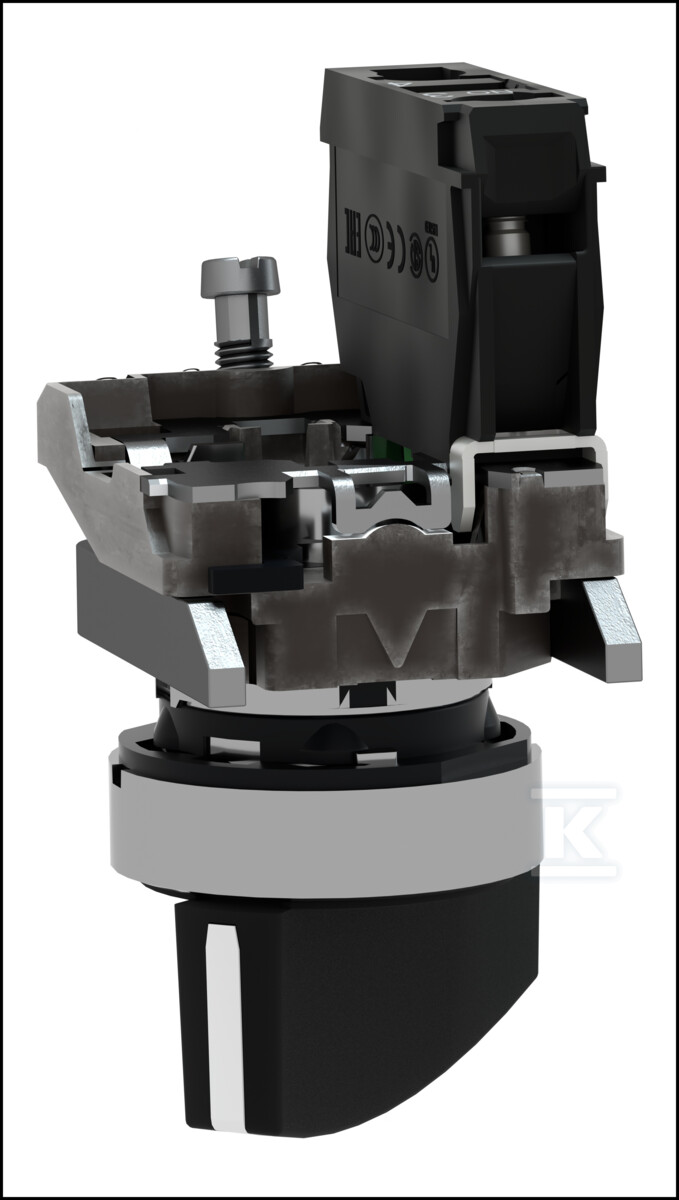

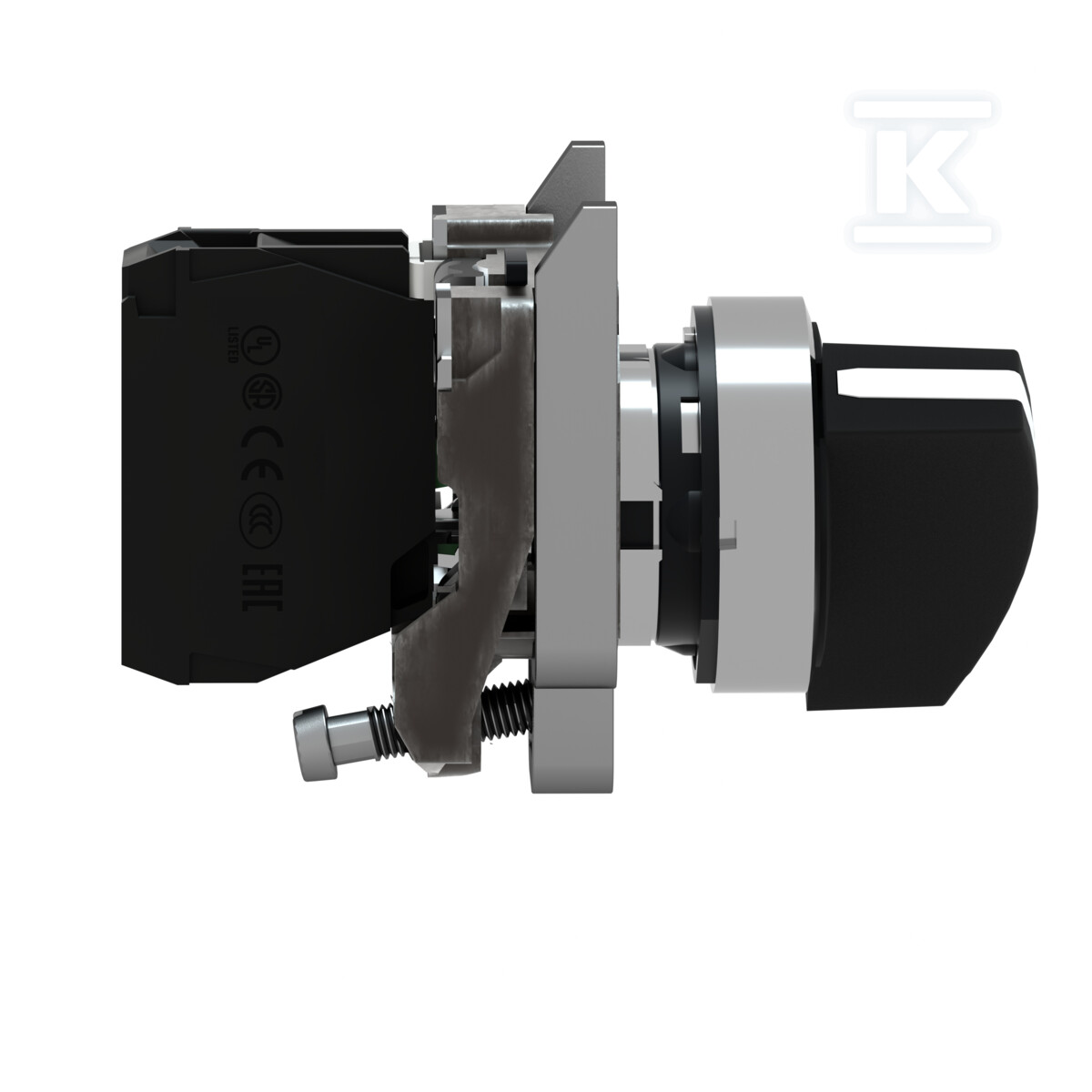

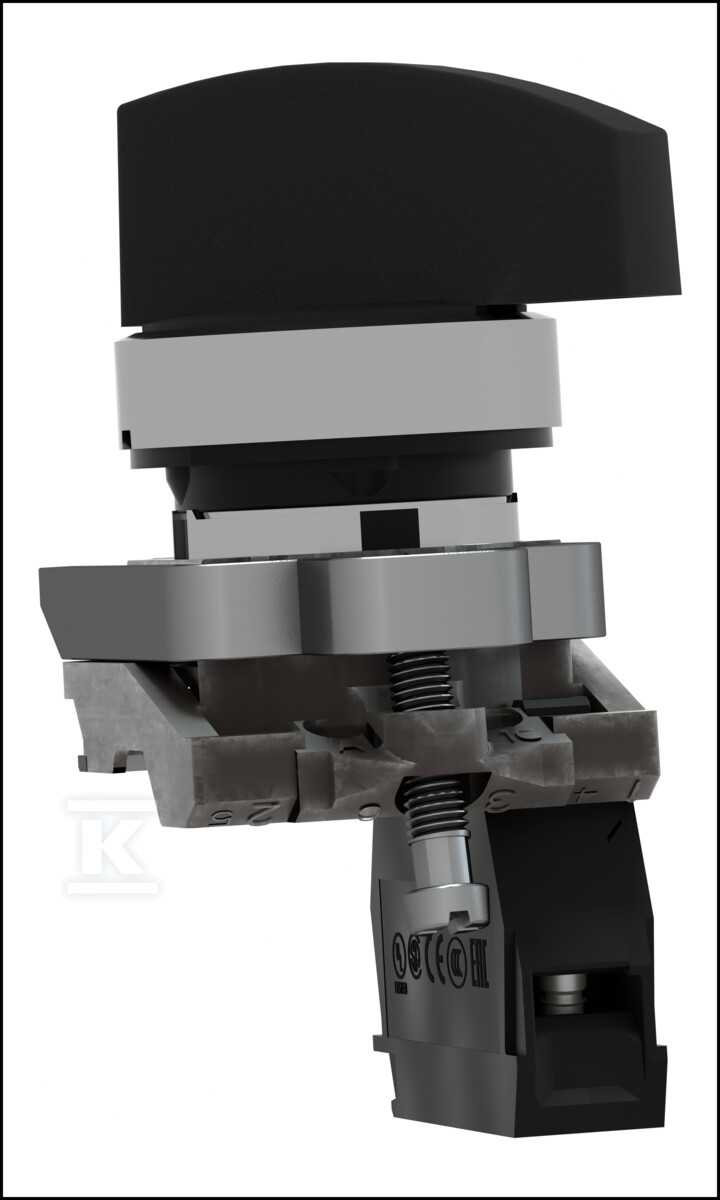

2-position switch black long feather metal stable XB4BJ21EX

Robust rotary switch for industrial applications

This durable rotary switch, with a diameter of 22.5 mm, is a reliable solution for controlling devices in demanding conditions. Equipped with a black, long handle and a chrome-plated metal frame, it provides convenient and secure operation. The switch is designed for mounting in control panels and is characterized by a high degree of protection against dust and water (IP65/IP67), making it an ideal choice for industrial environments, including potentially explosive atmospheres (ATEX D).

Design and application

The switch has two stable working positions, locked after setting, which prevents accidental adjustment. Its construction based on screw connections guarantees a solid and safe electrical connection. It is ideal for applications requiring precise control, such as production machines, automation systems or equipment in the oil and food industries. Thanks to the INERIS 04ATEX9004U certificate, it can be used in dust explosion hazard zones (21-22).

Key features and benefits

• Durable construction: Metal housing and chrome frame provide resistance to mechanical damage and corrosion.
• High degree of protection: IP65/IP67 class guarantees protection against dust and water jet - safe operation even in difficult conditions.
• Safety in hazardous areas: ATEX D certificate allows use in explosive atmospheres.
• Stable position: Locking mechanism ensures a secure hold of the switch set position.
• Easy installation: Standard 22 mm hole diameter facilitates integration with existing control panels.
• Reliable connection: Screw connections provide a solid and durable connection of wires.
• Wide range of applications: Excellent choice for production machines, automation systems and equipment in the oil, food and many other industries.

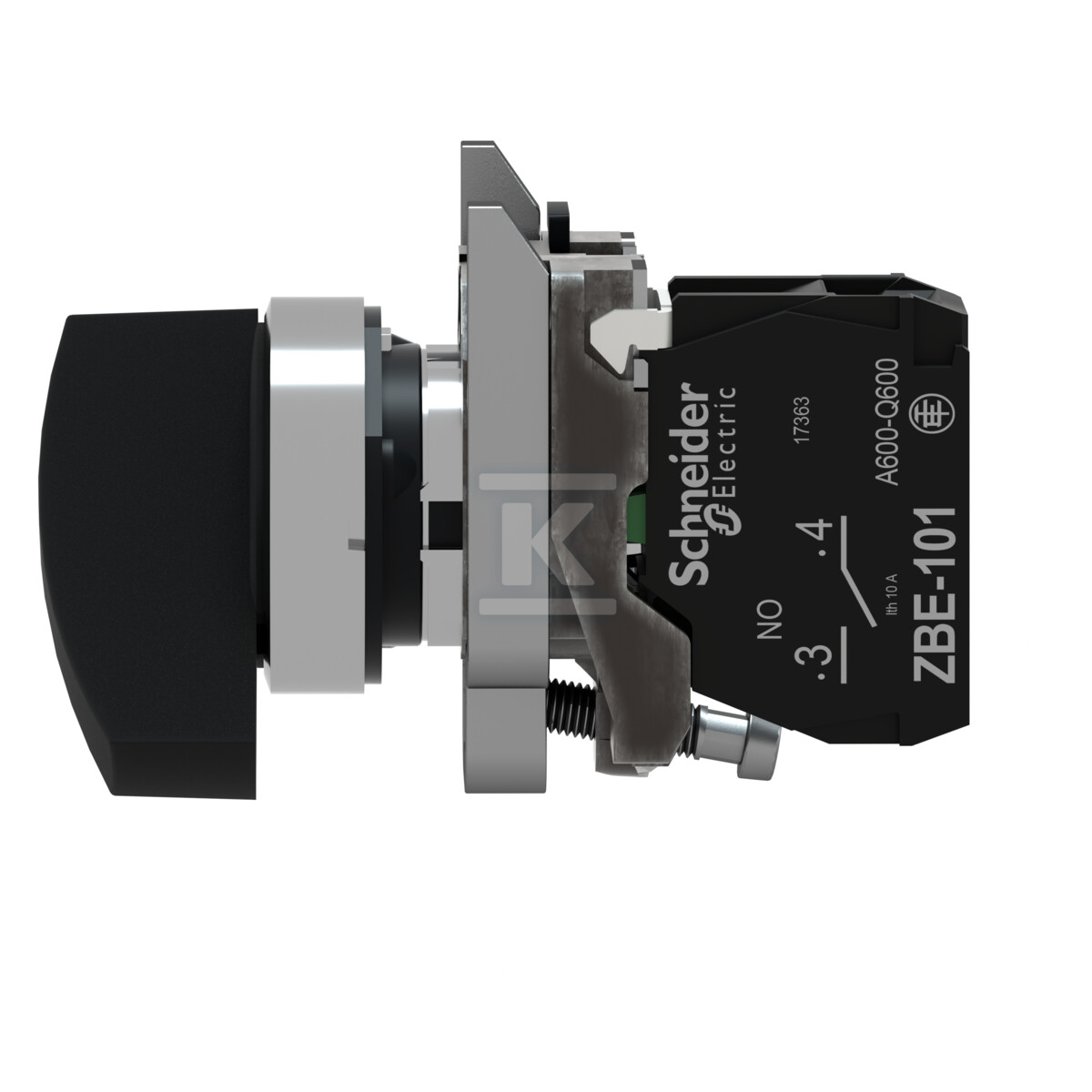

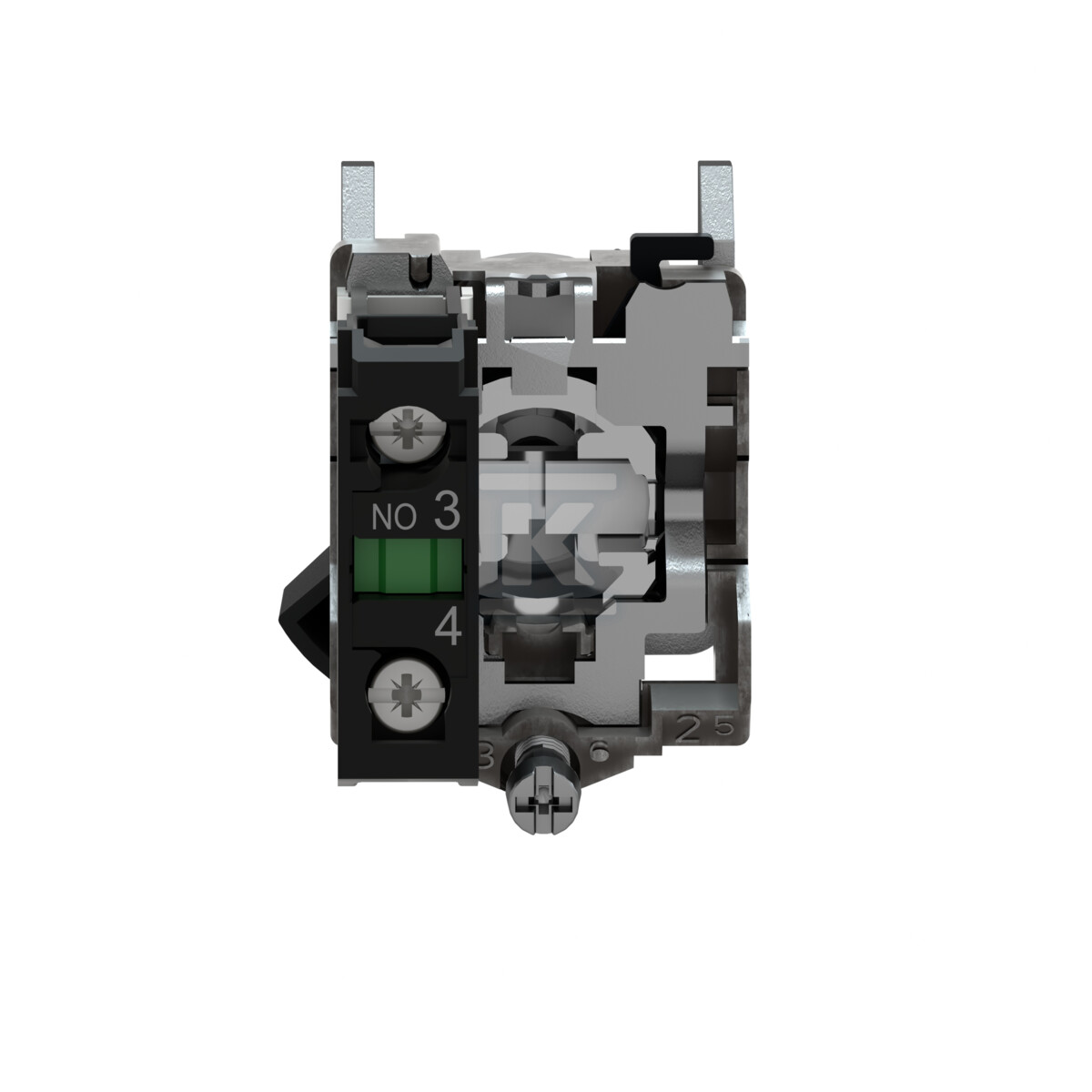

Additionally, the switch is equipped with a single normally open (1NO) contact with a slow-break action, which ensures reliable switching on and off of electrical circuits. Its compact dimensions (30 mm wide and 68 mm deep) allow for easy integration with various machine and device designs.
