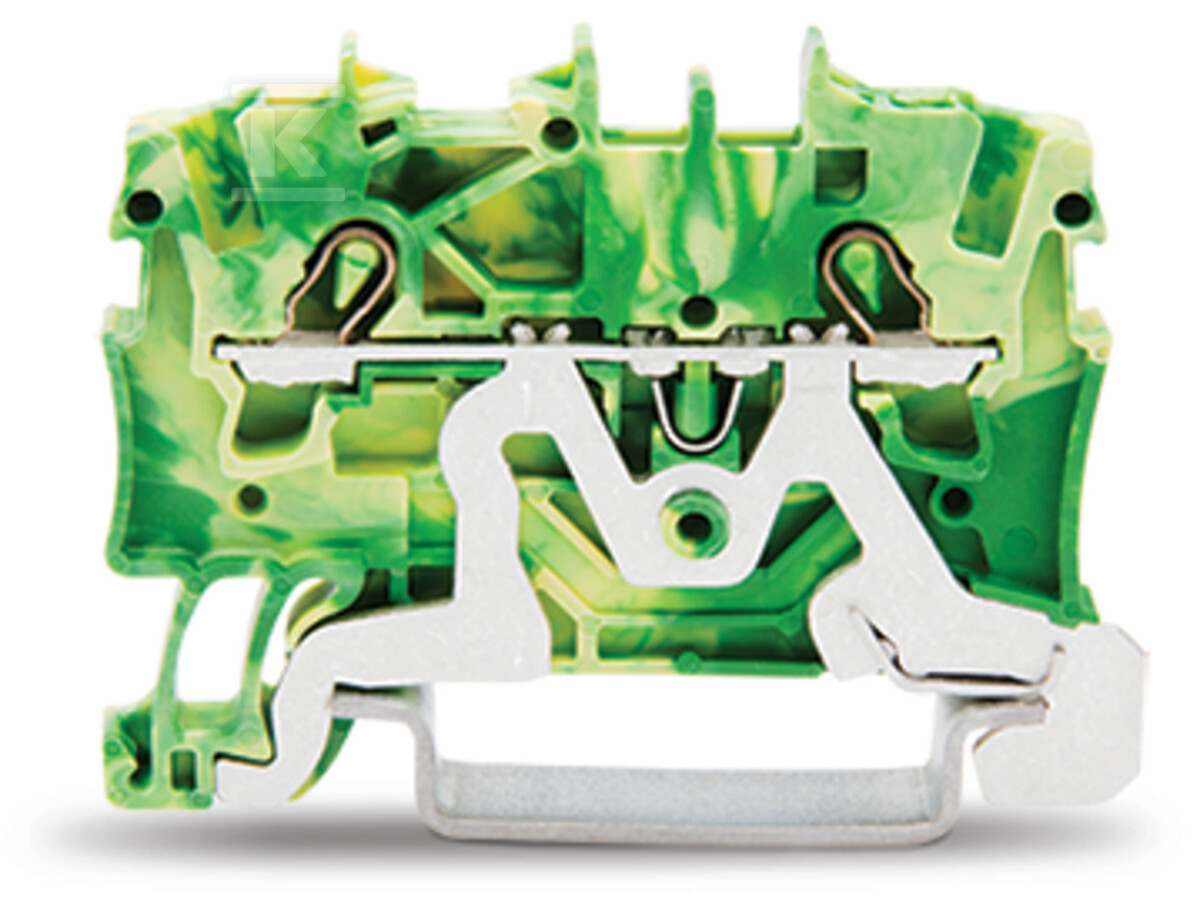

2-conductor PE 1.5 mm connector for Ex e II applications, description on the side and in the middle for TS 35 x 15 and 35 x 7.5 rail, Push-in CAGE CLAMP 1.50 mm, yellow-green 2001-1207

DIN Rail Connector – Secure Protective Conductor Connection

This PE connector, designed for TS 35 x 15 and 35 x 7.5 rails, is a reliable solution for connecting protective conductors in electrical installations. Made from high-quality materials, it provides a durable and safe connection, meeting the requirements of Ex e II applications. The use of Push-in CAGE CLAMP® technology simplifies and speeds up the connection of wires with a cross-section from 0.25 mm² to 2.5 mm², both solid and stranded.

Design and Application

The connector is designed for ease of use and versatility. Its compact dimensions (4.2 mm wide, 50.8 mm high, and 32.9 mm deep) allow for installation in limited spaces. The yellow-green color clearly identifies it as an element intended for connecting PE protective conductors. The ability to mount on standard DIN TH-35 mm rails ensures compatibility with most electrical distribution boards. Thanks to the PEN function, the connector can be used in circuits where protective-neutral connection is required.

Advantages and Product Features

• Push-in CAGE CLAMP® Technology: Enables toolless wire connection, significantly reducing installation time and minimizing the risk of errors.
• Wide Range of Wire Cross-Sections: Supports wires with a cross-section from 0.25 mm² to 2.5 mm², providing flexibility in choosing the appropriate wire for the application.
• Safety: Flame retardancy class V0 of the insulating material guarantees a high level of fire safety.
• Durability: Made of high-quality thermoplastic, resistant to mechanical damage and environmental conditions.
• Applications in Hazardous Areas: Designed for Ex e II applications, making it an ideal solution for installations in potentially explosive environments.
• Color Coding: Yellow-green color facilitates identification as an element intended for PE protective conductors.
• Closing Plate Required: Provides additional protection against accidental contact with conductive elements.
• Operating Temperature Range: Resistant to temperatures in the range of 105°C to -40°C, allowing its use in various working conditions.
