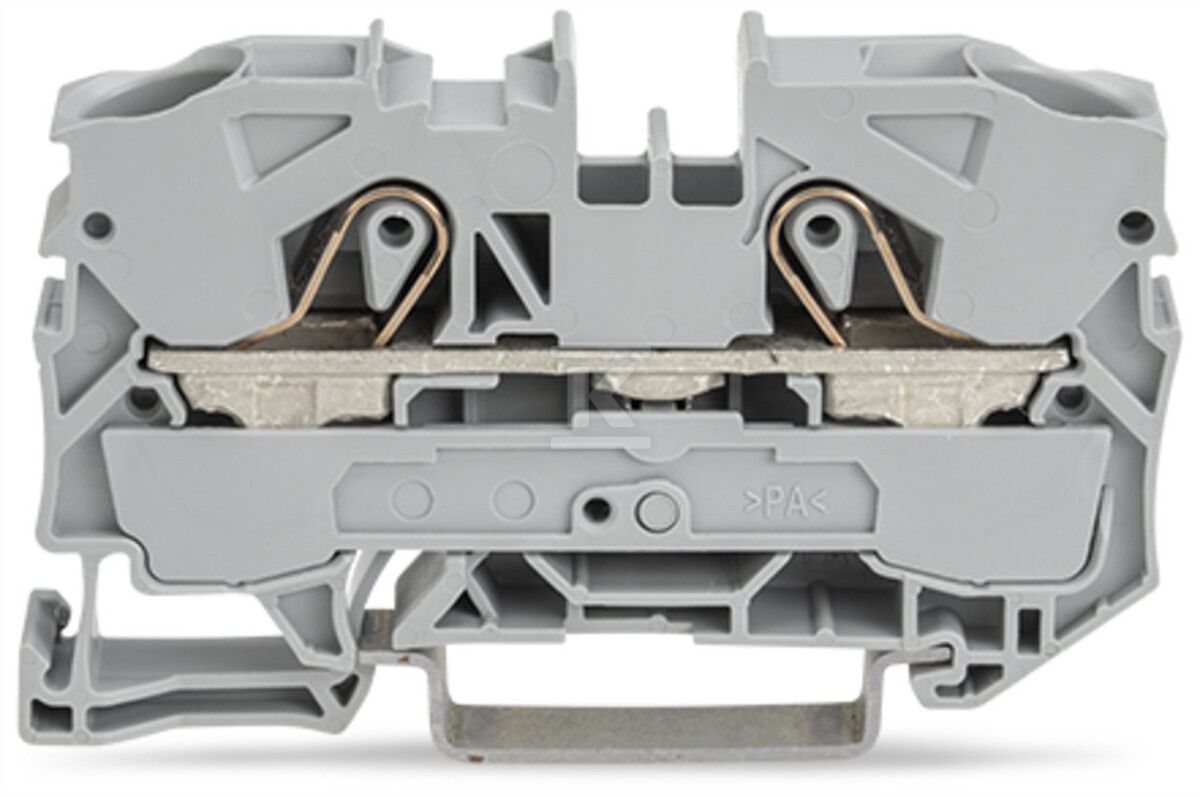

2-conductor through-terminal 10 mm for Ex e II applications, description on the side and in the middle for TS 35 x 15 and 35 x 7.5 rails, Push-in CAGE CLAMP 10.00 mm grey 2010-1201

Universal through-connection terminal for electrical installations

This two-wire through-connection terminal, designed for TH35 rails, is a reliable solution for both professional installers and end-users. It provides quick and safe cable installation in electrical systems, and its design allows for easy connection of cables with different cross-sections. Made of high-quality thermoplastic, it guarantees durability and resistance to damage.

Design and application

The terminal is designed for mounting on standard DIN TH-35 rails (both 35x15 and 35x7.5 mm). It utilizes Push-in CAGE CLAMP technology, which enables toolless cable connection. This significantly speeds up the installation process and minimizes the risk of errors. It is intended for connecting stranded (with and without ferrule) and solid core wires with a cross-section from 0.5 mm² to 16 mm². This makes it versatile and can be used in various applications. Additionally, it has Ex-e explosion-proof certification, making it suitable for use in potentially explosive atmospheres. A required closing plate ensures additional safety and connection stability.

Key features and benefits

• Wide range of wire cross-sections: Support for wires with a cross-section from 0.5 mm² to 16 mm² provides flexibility in selecting the appropriate cables for a specific application.
• Push-in CAGE CLAMP technology: Toolless cable connection significantly speeds up installation and reduces labor costs.
• Universal mounting: Compatibility with TH-35 rails (35x15 and 35x7.5 mm) simplifies integration with existing installations.
• Safety: Flame retardancy class V0 of the insulating material ensures fire resistance and minimizes the risk of flame propagation.
• Durability: Made of thermoplastic, it guarantees long-term operation even in harsh environmental conditions.
• Ex-e application: Possibility of use in hazardous areas increases the range of potential applications.
• High quality workmanship: Ensures reliable and stable electrical connections for a long time.
• Rated voltage 800V and rated current 57A: Allows use in demanding electrical applications.
