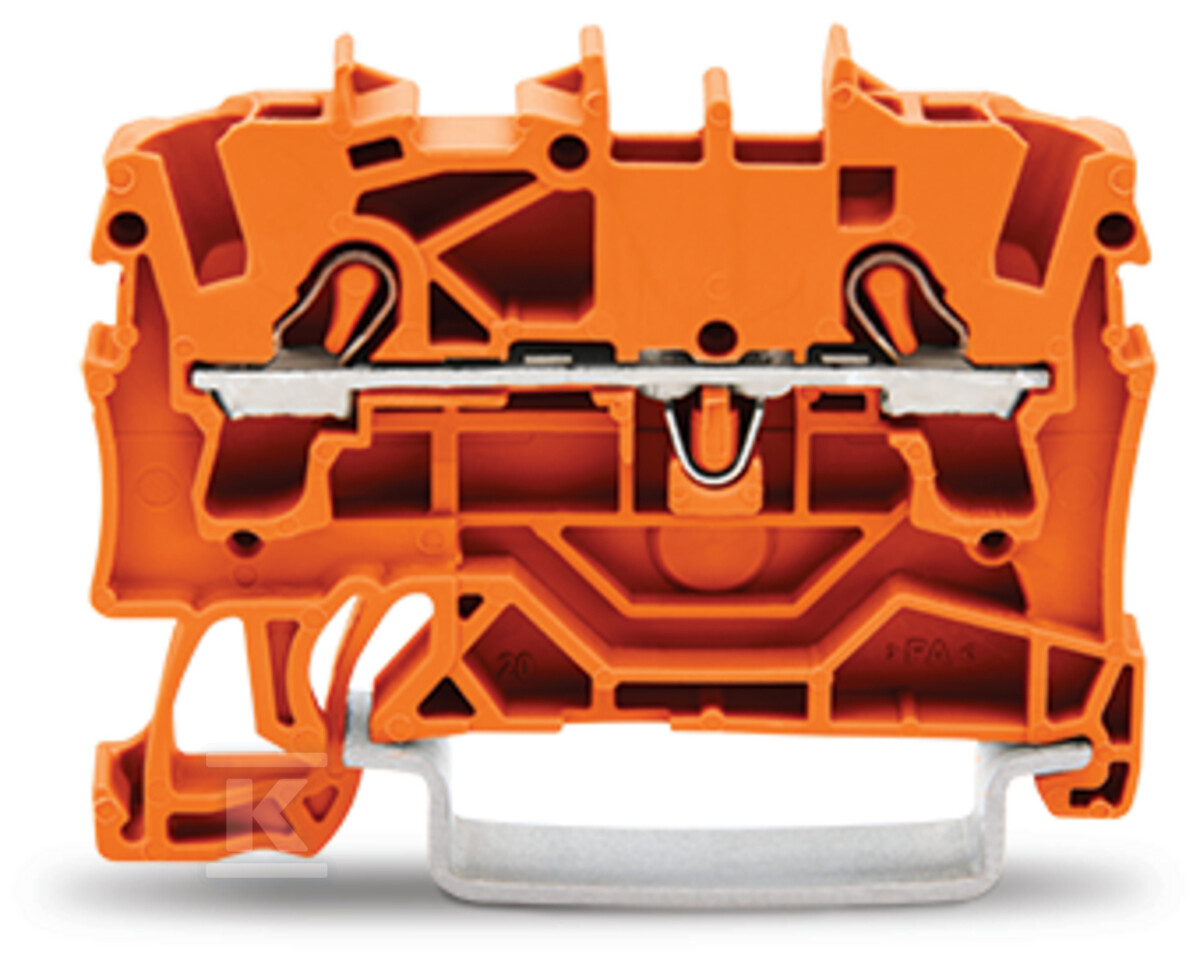

2-conductor through terminal 2.5 mm² for Ex e II applications, marking on the side and in the middle for TS 35 x 15 and 35 x 7.5 rails, Push-in CAGE CLAMP 2.50 mm² orange 2002-1202

Universal through-terminal for electrical installations

This two-conductor through-terminal with a cross-section of 2.5 mm² is a reliable solution for connecting wires in electrical installations. Designed for mounting on standard TS 35 x 15 and 35 x 7.5 rails, it ensures quick and safe installation thanks to Push-in CAGE CLAMP technology. Its orange color facilitates identification in the installation.

Safety and functionality in one

The terminal is designed for demanding applications, including environments with explosion hazard. It has Ex-e explosion-proof certification, making it an ideal choice for industrial and special installations. Made of high-quality thermoplastic material with flammability class V0, it guarantees safety and resistance to external factors. Rated voltage up to 800V and rated current 24A allow for use in a wide range of applications.

Easy installation and wide application

Push-in CAGE CLAMP spring clamp technology enables tool-free connection of wires with a cross-section from 0.25 mm² to 4 mm² (solid and stranded with or without ferrules). The terminal is compatible with various types of wires - solid, stranded with or without a ferrule. A required end plate provides additional connection security. Thanks to its compact dimensions (5.2 mm width, 48.5 mm height and 32.9 mm depth) it finds application even in limited space. It can be used in switchboards, connection boxes and other elements of electrical infrastructure.
