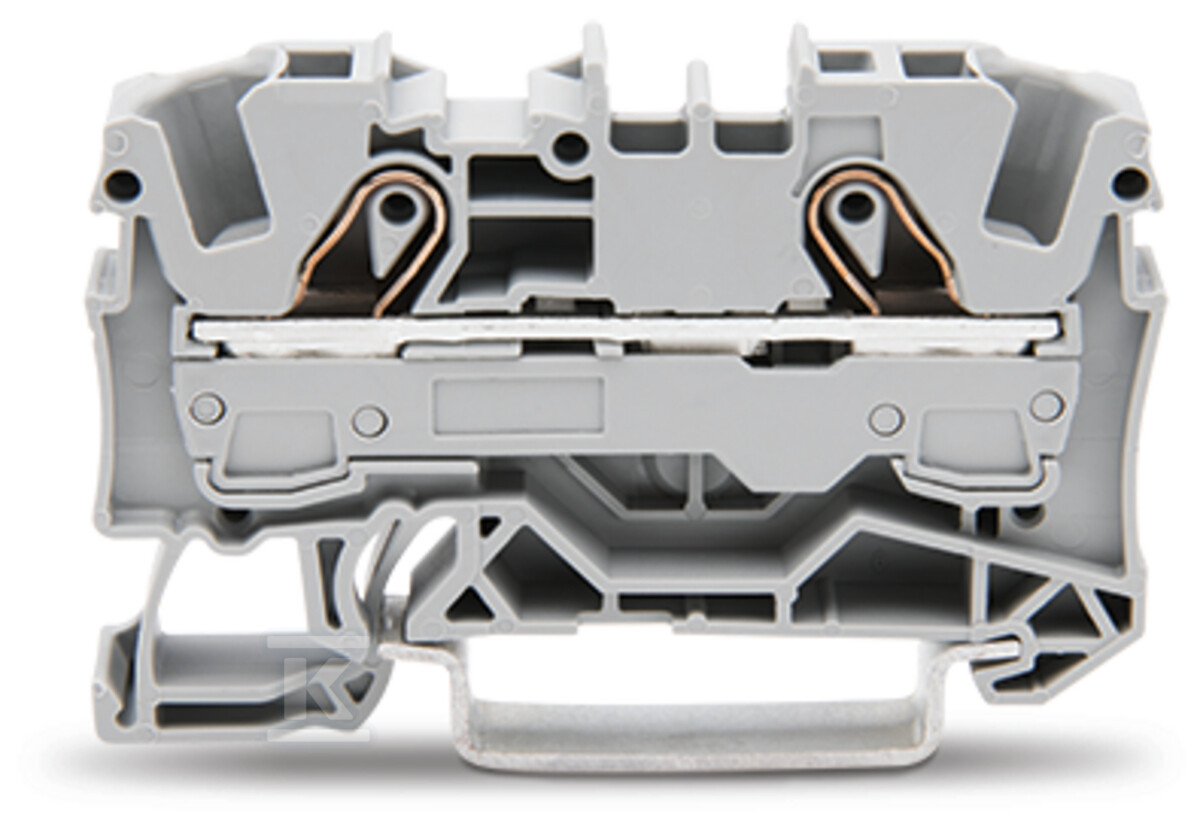

2-conductor through terminal 6 mm for Ex e II applications, marking on side and center for TS 35 x 15 and 35 x 7.5 rail, Push-in CAGE CLAMP 6.00 mm grey 2006-1201

Universal through terminal block for DIN rails

This two-conductor through terminal block, designed for mounting on TS 35 x 15 and 35 x 7.5 rails, offers reliable and quick connections in electrical installations. Made with Push-in CAGE CLAMP® technology, it provides convenience and safety during work, for both installers and end-users. The use of thermoplastic material in the insulation guarantees durability and resistance to damage.

Construction and application

The terminal block is designed to work with wires with a cross-section of 0.5 mm² to 6 mm² (stranded) and 1 mm² to 10 mm² (solid). Thanks to the spring clamps, the connection is secure and stable, eliminating the risk of wires loosening. The Ex e II application confirms its safety in potentially explosive environments. The description placed both on the side and in the middle facilitates identification and organization of the wiring. A closing plate is required for additional connection security.

Key features and benefits

• Versatility: The ability to mount on two standard DIN rails (TS 35 x 15 and TS 35 x 7.5) increases installation flexibility.
• Quick installation: Push-in CAGE CLAMP® technology allows for quick connection of wires without tools.
• Safety: Flame retardancy class V0 of the insulating material provides a high level of fire protection.
• Durability: The insulating material made of thermoplastic guarantees long-term operation even in difficult conditions.
• Rated current: Rated current of 41A allows the use of the terminal block in circuits with medium load.
• Explosion-proof applications: Ex e II certificate enables use in explosion-prone areas.
• Wide range of wires: Support for wires of different cross-sections (0.5 - 10 mm²) provides great freedom in choosing the right cabling.
• High quality workmanship: Compliance with WAGO standards guarantees the reliability and durability of the product.
