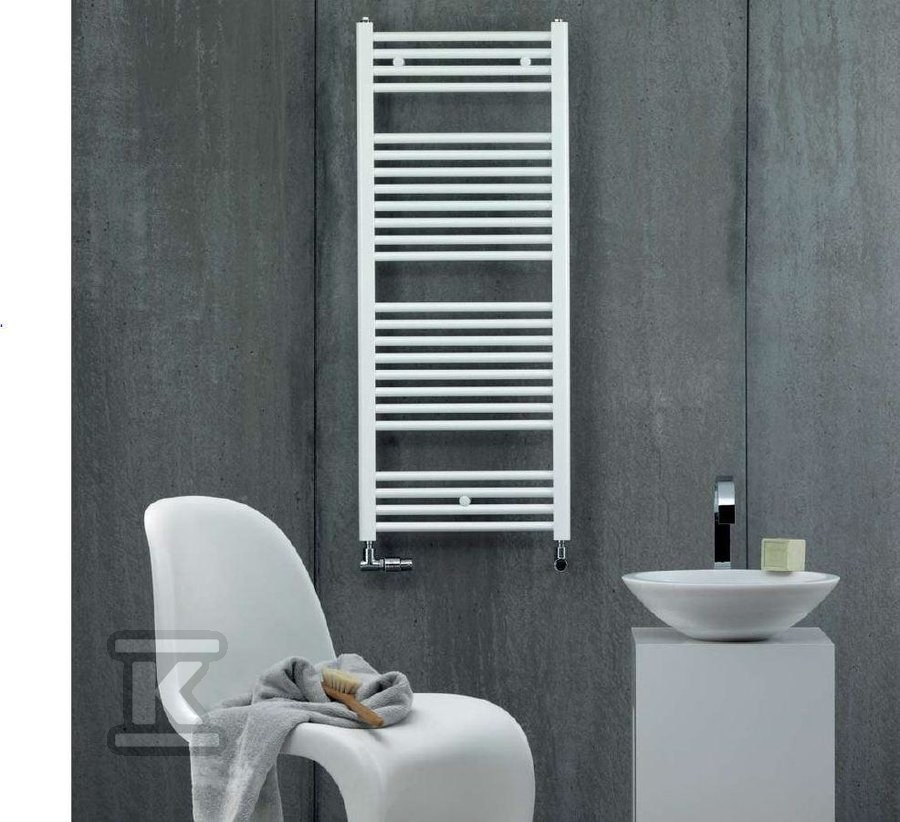

Ladder radiator ZEHNDER ABT-080-050/RAL9016 WHITE ABT-080-050/9016

The Zehnder ABT ladder radiator combines functionality and aesthetics, making it ideal for bathrooms and beyond. Its distinctive, gently curved design not only ensures efficient towel drying but also serves as a subtle decorative element within any interior. Constructed from high-quality steel, it guarantees durability and excellent corrosion resistance.

This model, measuring 786 mm in height and 493 mm in length, delivers a heating output of 398 W (according to EN 442 standard at 20°C ambient temperature with supply/return parameters of 75/65°C). This ensures effective room heating, while its densely arranged horizontal collectors provide optimal heat distribution. The white finish (RAL 9016) allows the radiator to seamlessly integrate into various interior designs.

Construction and Installation:

The Zehnder ABT radiator features a robust construction and an elegant connection between pipes and collectors. Bottom connection with G 1/2" female thread simplifies installation, while a maximum operating pressure of 10 bar ensures safe operation. The package includes all necessary mounting accessories: hangers, plug, and air vent. The center-to-center connection spacing is 449 mm.

Applications and Benefits:

• High heating performance: Delivers comfortable heating for bathrooms or other rooms.
• Functionality: Perfect for drying towels and robes thanks to its large heating surface and optimal pipe spacing.
• Aesthetic design: The gently curved form and elegant finish enhance any interior.
• Durability: Made from high-quality steel, resistant to corrosion and mechanical damage.
• Versatility: Compatible with electric heating elements, expanding its application range.
• Installation flexibility: Optional central connection with 50 mm spacing (available in other models) facilitates adaptation to existing installations.

The Zehnder ABT radiator is an investment in comfort and functionality for your bathroom. Its timeless design and superior build quality ensure reliable service for many years. Maximum supply temperature: 120°C; horizontal pipe diameter: 23 mm.
