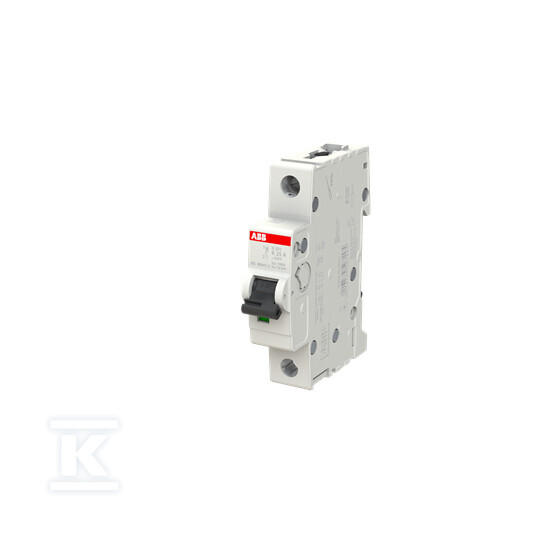

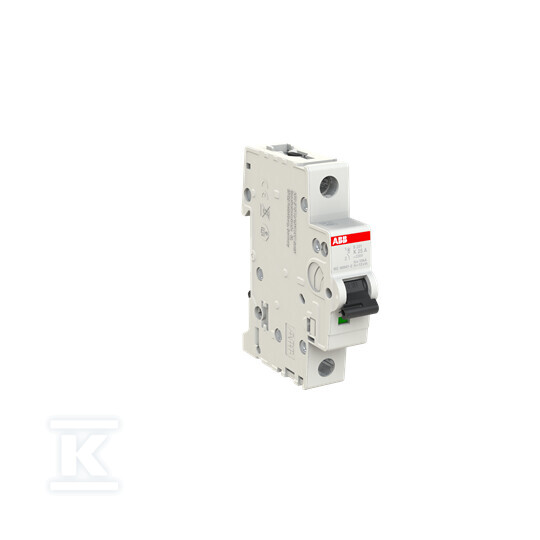

Overcurrent circuit breaker, 1P, K characteristic, 25A, 6kA, AC | S201-K25 2CDS251001R0517

Reliable protection of electrical installations – S200 series circuit breaker

This single-pole circuit breaker with K characteristic is a key element of every safe electrical installation. It provides effective protection against overloads and short circuits, minimizing the risk of damage and fires. It is indispensable both in newly built and modernized facilities.

The S201-K25 circuit breaker, with a rated current of 25A and a short-circuit breaking capacity of up to 6kA, is perfect for protecting circuits with higher power demand. Its compact size – only 1 module wide – allows for efficient use of space in the distribution board.

Solid construction and high performance

The circuit breaker is characterized by high quality and durability. The construction based on proven ABB technology guarantees reliable operation for a long time. The K characteristic means that the circuit breaker reacts more slowly to short-term current surges, which is particularly important when protecting devices with motors or other elements generating inrush currents during start-up. The breaking capacity at a level of 6kA at 230V and 400V and 10kA according to IEC 60947-2 ensures effective disconnection of the circuit in the event of a serious failure.

• Wide range of applications: ideal for protecting lighting, socket outlets and other electrical devices.
• DIN rail mounting: quick and easy mounting in standard distribution boards.
• Resistance to environmental conditions: designed to operate at temperatures from -25°C to +55°C, ensuring reliability even in difficult conditions.
• Expandability: compatible with additional equipment, allowing it to be adapted to individual installation needs.
• Safety confirmed by standards: meets the requirements of EN 60898 and IEC 60947-2 standards, guaranteeing safety of use.
• Wire cross-sections: allows connection of solid wires with a cross-section from 0.75 mm² to 35 mm² and stranded wires from 0.75 mm² to 25 mm².

The S201-K25 circuit breaker is an investment in safety and peace of mind – reliable protection of electrical installations for professionals and end users.
