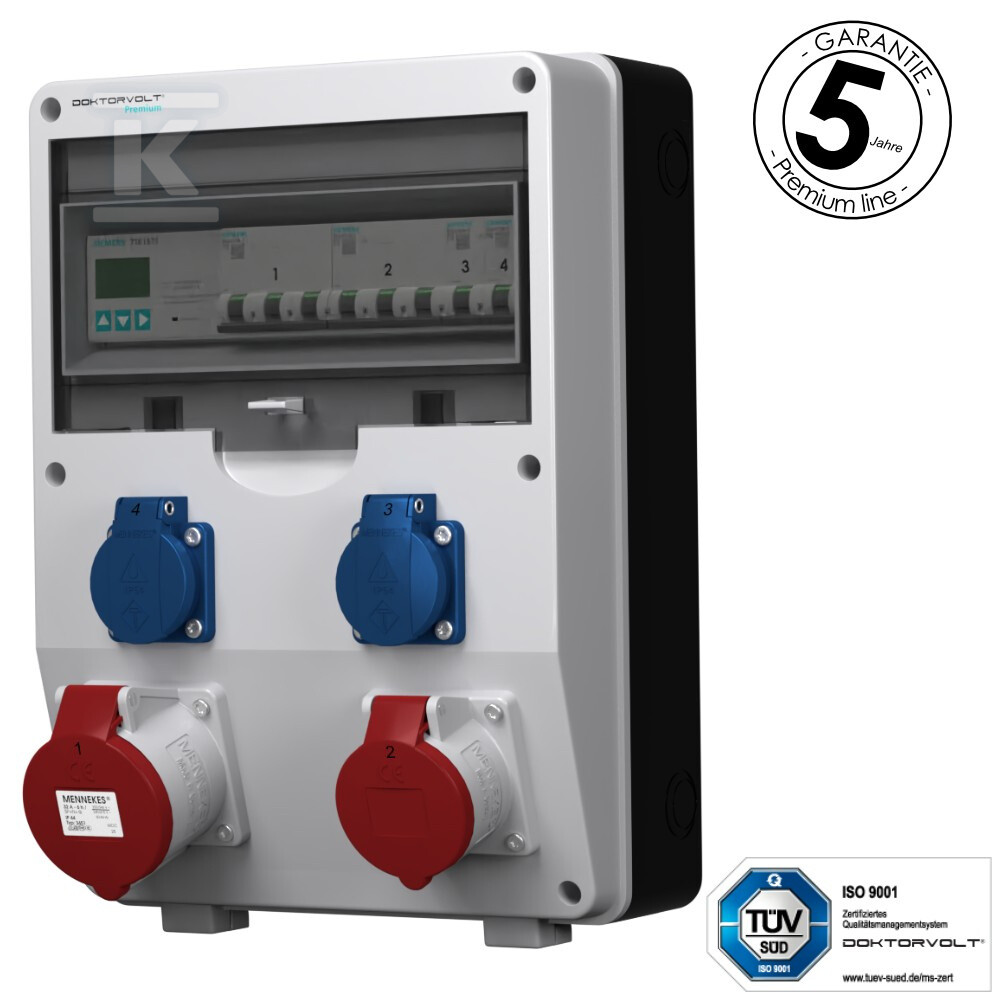

Construction distribution board with meter 3F Siemens pTD-S 32A 16A 2x230V Mennekes Schuko sockets Doktorvolt 4838 DV-4838-D

Comprehensive power solution for demanding applications

The presented construction distribution board is a complete power system that will perform well in the most difficult working conditions. Equipped with a SIEMENS SENTRON PAC1600 three-phase energy meter, it enables precise monitoring of power consumption up to 80A in 230/400V installations. This is particularly important for construction companies that must settle energy costs with investors or control consumption at various stages of project implementation.

Safe energy distribution with multiple power points

The distribution board offers four independent power points: two 230V 16A sockets with IP54 protection class and two 400V power sockets (16A and 32A) with IP44 protection class. German Mennekes sockets ensure a reliable connection even under heavy loads, and the Schuko system guarantees compatibility with a wide range of devices. Each socket has an individual SIEMENS overcurrent protection - C characteristic ensures optimal protection against overload and short circuits.

Durable construction resistant to external conditions

The enclosure made of technopolymer with dimensions 360×260×125 mm provides an IP65 protection degree, making it resistant to dust, moisture, and direct contact with water. The polycarbonate door material maintains transparency, allowing for monitoring of the equipment status without the need to open it, while EPDM rubber seals maintain tightness for many years of operation. The construction contains 12 modules in one row, allowing for future installation expansion.

Complete equipment and certified quality

The system includes all necessary elements: a 3-phase 8-module comb busbar, wiring made of H07V-K flexible cables in various cross-sections (2,5; 4; 6 mm²), and a set of mounting screws. The distribution board meets the requirements of European standards (CE, IEC) and holds quality certificates from independent institutes (TÜV SÜD, ISO 9001:2015). The manufacturer Doktorvolt® has implemented a quality management system ensuring transparent information flow and the highest standards of operational safety.
