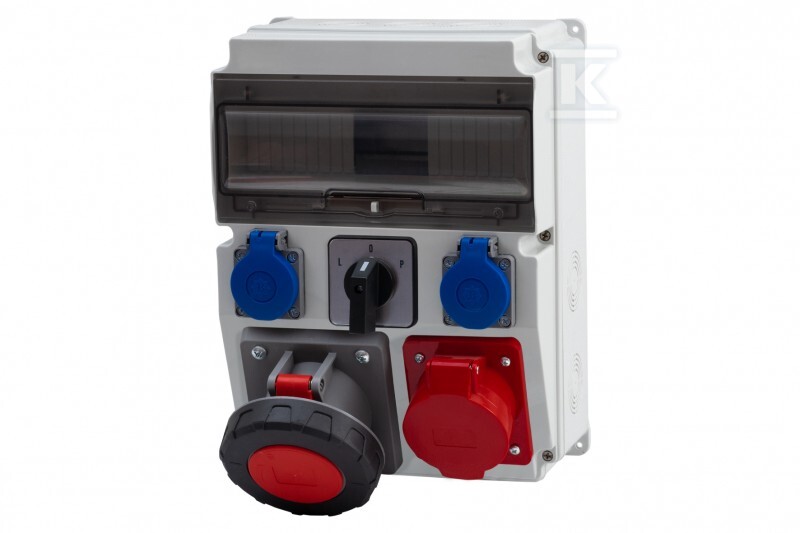

Distribution box CAJA 12M - sockets 16/5, 63A 5p, 2x230V, L/P (63A) F3.0840

Electrical distribution box for demanding applications

The CAJA 12M distribution box is a solid and functional solution for safe distribution of electrical energy. Designed for both professional installations and home use, it provides reliable circuit protection and ease of use. The housing made of durable ABS (IP66) guarantees resistance to external conditions, and the well-thought-out arrangement of sockets facilitates organization and access to power points.

Construction and application

The CAJA 12M distribution box offers 12 modules for mounting circuit breakers and other protective devices. It is equipped with 16A and 63A (5-pole) sockets, as well as two 230V sockets, making it a versatile solution for various needs. The L-0-P switch (63A) allows for easy disconnection of power if necessary. The housing with dimensions of 330mm x 240mm x 140mm provides sufficient space for wiring and components. The PG21 cable gland allows for a tight and aesthetic introduction of cables.

Key features and benefits

• Durable housing: Made of ABS with IP66 protection, resistant to mechanical damage and weather conditions - ideal for both indoor and outdoor use.
• Versatility: The ability to configure with various circuit breakers and protections allows you to adapt the distribution box to the specific requirements of the installation.
• Safety: IP44 sockets provide protection against moisture and dirt, minimizing the risk of short circuits.
• Easy installation: Solid mounting of the cover with a stainless steel screw guarantees stability and safety of use.
• Optimal wiring: Selected cable cross-sections (63A/5p - N and PE H07V-K /LgY/450/750V; 16A/5p - 2.5mm2 H07V-K /LgY/450/750V; 230V - 1.5 mm2 H07V-K /LgY/450/750V) ensure safe energy transmission.
• Universal application: It will work in residential, office, industrial buildings and public utility facilities.
