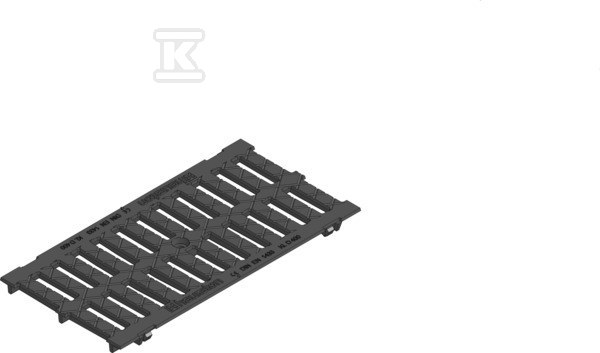

Cast iron grating FASERFIX KS 200, load class D400, SW 2x85/18 (2 slots across the grating width with dimensions: length 58 mm, width 18 mm) 12463

Linear drainage – solidity and functionality in one

FASERFIX KS 200 slatted cast iron grating is an element of a linear drainage system, designed for effective drainage of hardened surfaces. It is used in parking lots, driveways, internal roads and other places exposed to large amounts of rainwater. Made of durable cast iron, resistant to loads and corrosion, it is a reliable solution for both professional installers and end users.

Construction and parameters

This grating is characterized by a load class of D400, which means it can withstand a load of up to 40 tons. It has two slots with dimensions of 58 mm length and 18 mm width on the width of the grating (2x85/18). This design provides a high water flow rate while maintaining user safety. The FASERFIX KS system is distinguished by its modularity and ease of installation thanks to the SIDE-LOCK system, which allows for quick and secure connection of the grating to the drainage channel. Additionally, transverse locks can be used to increase the stability of the grating. The drainage channels in this system are frost and salt resistant, guaranteeing their long-term operation in harsh weather conditions.

Advantages and benefits

• Durability: Load class D400 provides resistance to heavy loads, ideal for areas with high traffic.
• Efficiency: Two slots with appropriate dimensions guarantee rapid water drainage from surfaces.
• Easy installation: The SIDE-LOCK system significantly speeds up the installation process, saving time and labor costs.
• Durability: Made of cast iron and resistant to corrosion, ensuring long-term operation even in harsh environmental conditions.
• Versatility: The possibility of using additional security in the form of transverse locks increases the stability of the grating.
• Compatibility: Grating designed for use with FASERFIX KS 200 channels.
• Chemical resistance: The material is resistant to road salt and other chemicals, extending the life of the system.

The FASERFIX KS system is not only effective drainage, but also an aesthetic finish of the space. A wide selection of gratings allows you to match the appearance of the drainage to the character of the surroundings.
