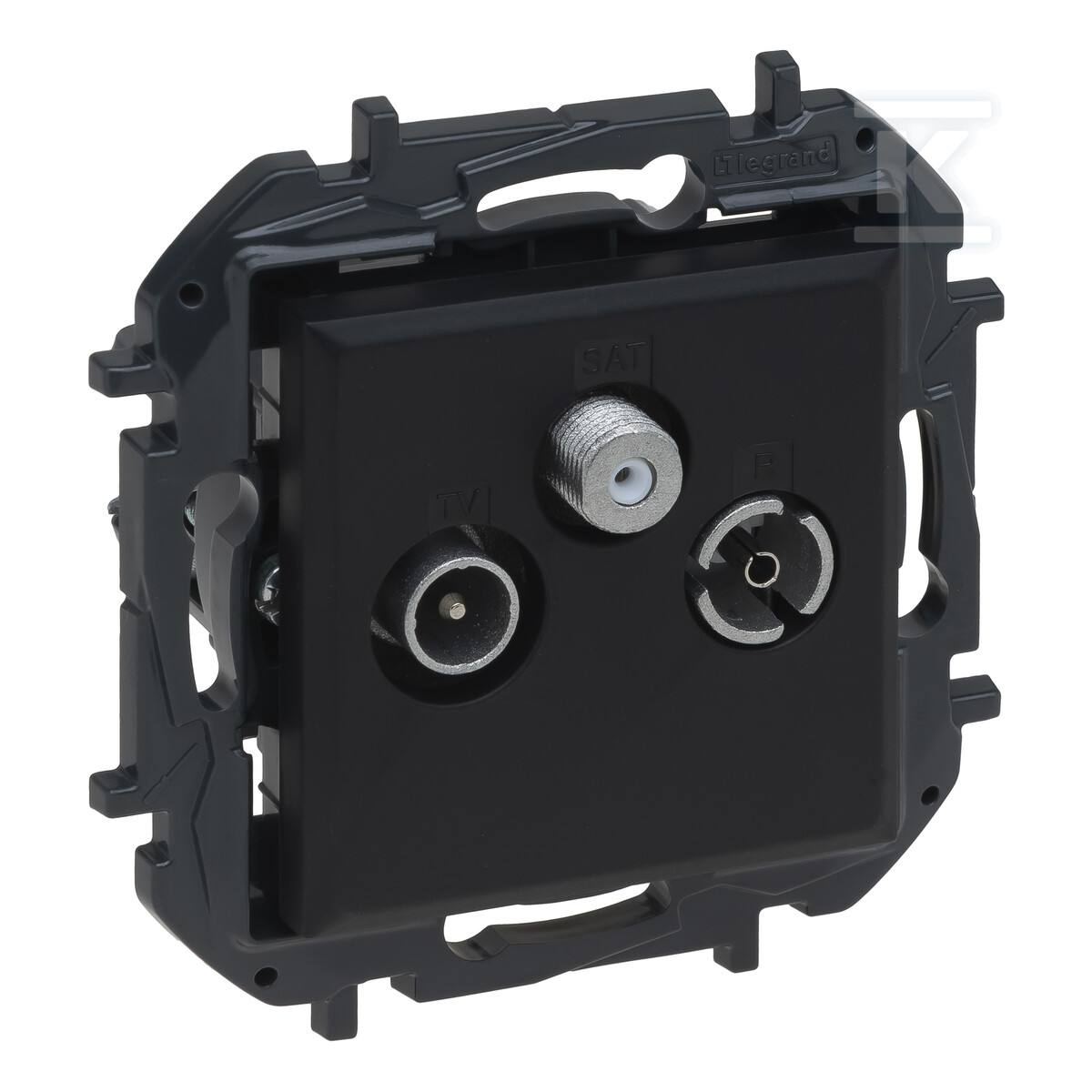

TV-R-SAT end socket for star-type installation 1.5 dB - black color, NILOE STEP 863580B

Modern TV-R-SAT outlet for star topology

This is a final TV-R-SAT outlet from the Niloe Step series by Legrand, designed for star topology installations. It provides high signal quality with an attenuation level of 1.5 dB for both 860 MHz and 2150 MHz frequencies. It is ideal for both new installations and the modernization of existing systems. Made of durable thermoplastic, it is characterized by solidity and resistance to damage.

The outlet is halogen-free, which increases safety and minimizes the emission of toxic substances in the event of a fire. The use of a central plate ensures an aesthetic appearance and easy integration with other elements of the Niloe Step series. Thanks to the possibility of flush mounting, the outlet fits perfectly into modern interior designs. It is compatible with UHD TV and prepared for receiving DAB+ signal.

Comfortable installation and versatility of application

The installation of the outlet is simple and convenient thanks to the possibility of using both claw and screw mounting. The minimum depth of the mounting box is 32 mm. The outlet has three connections – TV/RD/SAT – allowing you to connect various receiving devices. The matte black (RAL 9017) surface finish gives it an elegant look and makes it suitable for most interiors. Additionally, the housing has a protection degree of IP20 and an impact resistance of IK04, which ensures safe use in various conditions.

The Niloe Step series is distinguished by attention to detail – self-leveling frames adapt to wall irregularities, and a small mechanism facilitates installation. A durable bracket made of plastic guarantees stability and safety during mounting. The outlet is compatible with frames from the Niloe series, allowing for easy replacement of elements and refreshing the look of the installation.
