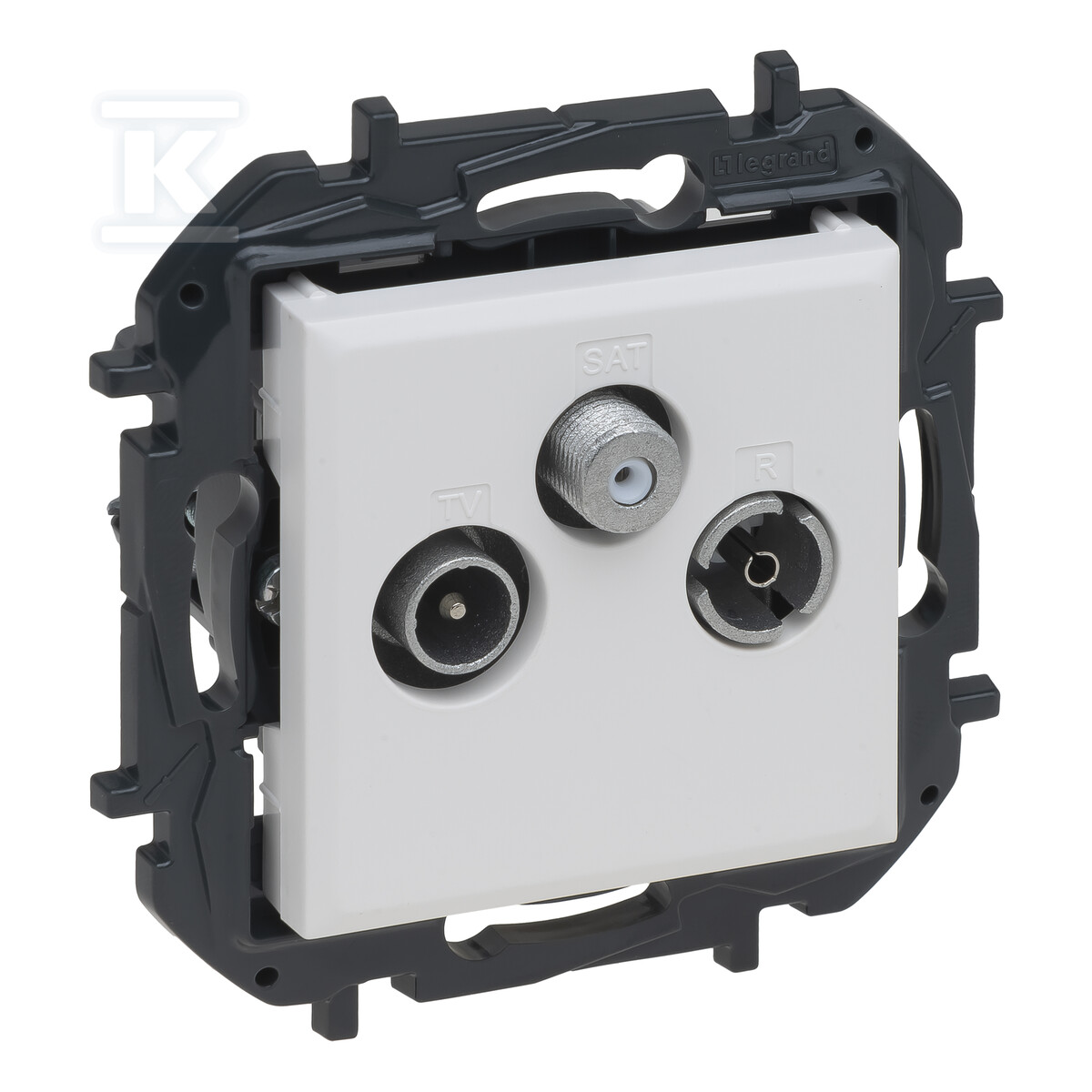

TV-R-SAT end socket for star-type installation 1.5 dB - white color, NILOE STEP 863180B

TV-R-SAT socket for star topology installations – comfort and reliability

This TV-R-SAT socket, designed for star topology installations, is part of the Niloe Step series by Legrand, valued for its functionality and ease of installation. Designed for both professional installers and end-users, it provides a stable reception of television, radio and satellite signals. Its compact dimensions (75.8 x 44.5 x 75.8 mm) allow for discreet integration into the interior design.

The socket is equipped with connections for TV signal (5-68 MHz/120-862 MHz), radio (87.5-108 MHz) and satellite (950-2400 MHz). The attenuation level of 1.5 dB for both bands (860 MHz and 2150 MHz) minimizes signal loss, guaranteeing high image and sound quality. This makes it perfect for modern installations, including those supporting UHD TV and DVBT.

The socket design has been carefully considered for easy installation – it offers the possibility of mounting both with claws and with screws. The minimum depth of the mounting box is 32 mm. Matte white finish (RAL 9003) provides an aesthetic look and easy matching to various interior arrangements. Made of thermoplastic and additionally halogen-free, it meets high standards of safety and environmental protection.

• Versatility: Supports TV, radio and satellite signals in one socket.
• Low attenuation: Ensures stable and clear signal reception – 1.5 dB for both frequency bands.
• Easy installation: Possibility of mounting with claws or screws, minimum box depth 32 mm
• Safety: Made of halogen-free thermoplastic and has an impact resistance class of IK04 and a protection degree of IP20
• Aesthetics: Matte white finish blends perfectly with various interiors.
• Compatibility: Adapted for DVBT, terrestrial and satellite television installations and compatible with UHD TV
• Screening class A: Provides resistance to LTE interference ready(4G).
• Conductivity: Conductive elements protected against direct contact during installation

The Niloe Step socket is a solid solution for demanding users who appreciate quality, reliability and ease of installation. It is an ideal choice for both new installations and modernization of existing television and satellite signal distribution systems.
