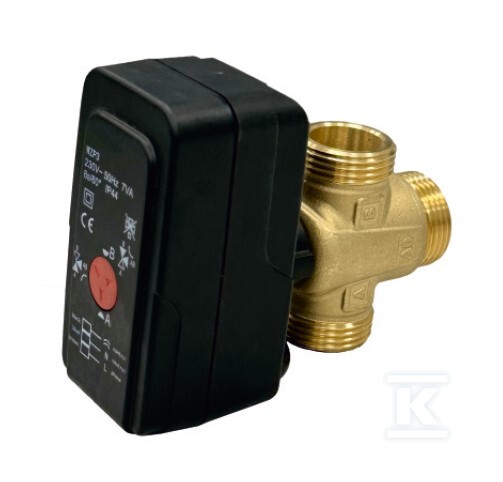

3-way switching valve WZP3-25M ONNLINE 601072ONN

5/5

reviews: 1

Variants
WZP3-25MWZP3-32M
from 1 pcs324,09 zł
gross / pcs
z 44 pcs
z 44 pcs
Brand ONNLINE
Series:WZP
Onninen Index:DLT360
Manufacturer's code:601072ONN
EAN:5902052126958
Bulk packaging:1 pcs
Variants
WZP3-25M
WZP3-32M

Suggested products

TECHNICAL DATA

Sales unit dimensions and weight: 1 pcs

length/width/height/weight/volume:0,13 m / 0,115 m / 0,085 m / 0,73 kg / 0,001 m3
Customs code:84818099

3-way switching valve WZP3-25M ONNLINE 601072ONN

APPLICATION
Used in heating, cooling, and domestic hot water (DHW) installations to switch the flow between two parts of the installation; in combination with a 2-point controller, it automates the operation of the installation.

DESCRIPTION:
WZP3-25M - GZ 1 “
Kvs: 8
Voltage/power: 230V AC, 50 Hz, 7VA
Control signal: 2-point SPST
Protection class: II, IP44
Position indicator: on the cover
Torque: 5 Nm
Cable: 3 x 0,75 mm, 1m
Rotation time and angle: 8s/60°
Ambient temperature: 0°C ..+55°C
Certificate: CE, Rohs
Nominal pressure: PN10
Medium: water, glycol <50%,
Medium temperature: min. +5°C, Max. +80°C
Leakage(Δp = 1 bar): 0,1% kvs
Max. differential pressure: 1 bar
Materials: brass, PPS, PTFE
Sealing ring:
The actuator is mounted on the valve using a clip, which facilitates installation and does not require the use of any additional tools. The actuator is equipped with a function that prevents it from getting stuck. In the event of the motor getting blocked, it changes its direction of operation, which protects it from damage and significantly increases its lifespan. The valve scale shows the current position of the valve, and its compact dimensions allow it to be used even in small rooms.
