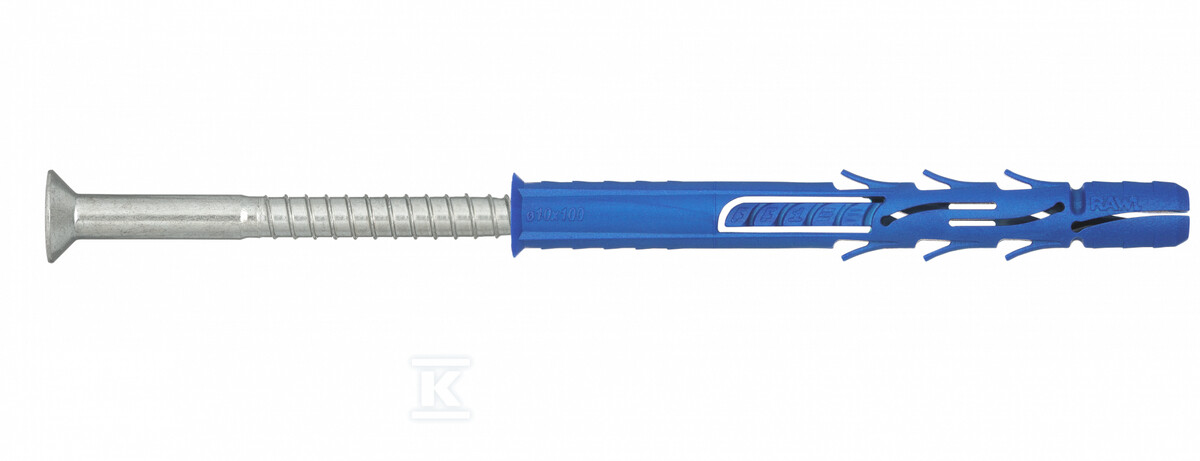

Polyamide frame plug 8x120 mm with dust cap, electro-galvanized screw, FF1 /50pkg/ R-FF1-N-08L120

Universal Frame Fixing Solution

The frame anchor R-FF1-N-08L120 is a fixing designed for a wide range of construction and renovation applications. Its special design featuring a funnel allows for aesthetically flush installation with the surface of the mounted element - particularly useful when working with soft materials such as wood.

High-Quality Construction and Materials

The anchor sleeve is made from a special polyamide (nylon) formula, ensuring the highest strength parameters across all substrate categories according to ETAG 020 (A, B, C, D) standards. The internal geometry of the sleeve has been precisely engineered to perfectly match the countersunk head of the screw, guaranteeing optimal expansion within the material.

The screw is manufactured from galvanized carbon steel.

The anchor design provides multi-directional expansion, meaning forces acting on the fixing are evenly distributed in various directions. This translates to higher load-bearing capacity and enhanced mounting safety.

Wide Range of Applications

This universal frame anchor is ideal for mounting:

• Door and window frames - ensures stable fixing of door and window frames
• Garage doors and industrial gates
• Facades with metal and wooden elements - enables aesthetically pleasing surface finishing
• Wall cabinets, shelves, and handrails - guarantees secure fixing even under heavy loads
• Satellite antennas and cable trays - resistance to external conditions

Compatibility with Various Substrates

The anchor R-FF1-N-08L120 is certified for use in the following substrate categories:

• Category A: normal concrete ≥ C12/15 (cracked and uncracked)
• Category B: solid ceramic brick and solid silicate brick
• Category C: hollow ceramic brick and hollow silicate brick
• Category D: hollow lightweight concrete blocks and aerated concrete

The effective anchorage depth is 50 mm, ensuring optimal load-bearing capacity characteristic of pull-out loads.

Technical Advantages and Certifications

The product comes with full technical documentation confirming its parameters:

• Certificates ETA-12/0398 and UKTA-22/6344
• Characteristic load capacity for pull-out loads: various values depending on concrete class
• Partial safety factor γMc = 1.8

Installation Parameters

Installation is simple and intuitive:

1. Drill a Ø8 mm hole to the appropriate depth
2. Insert the sleeve through the mounted element into the hole
3. Hammer it in to the required embedding depth
4. Drive the screw using a wrench or TORX T30 screwdriver

The minimum distance from the substrate edge is 60 mm, and the minimum spacing between fixing points is also 60 mm.

The product is available in a practical cardboard packaging containing 50 pieces.
