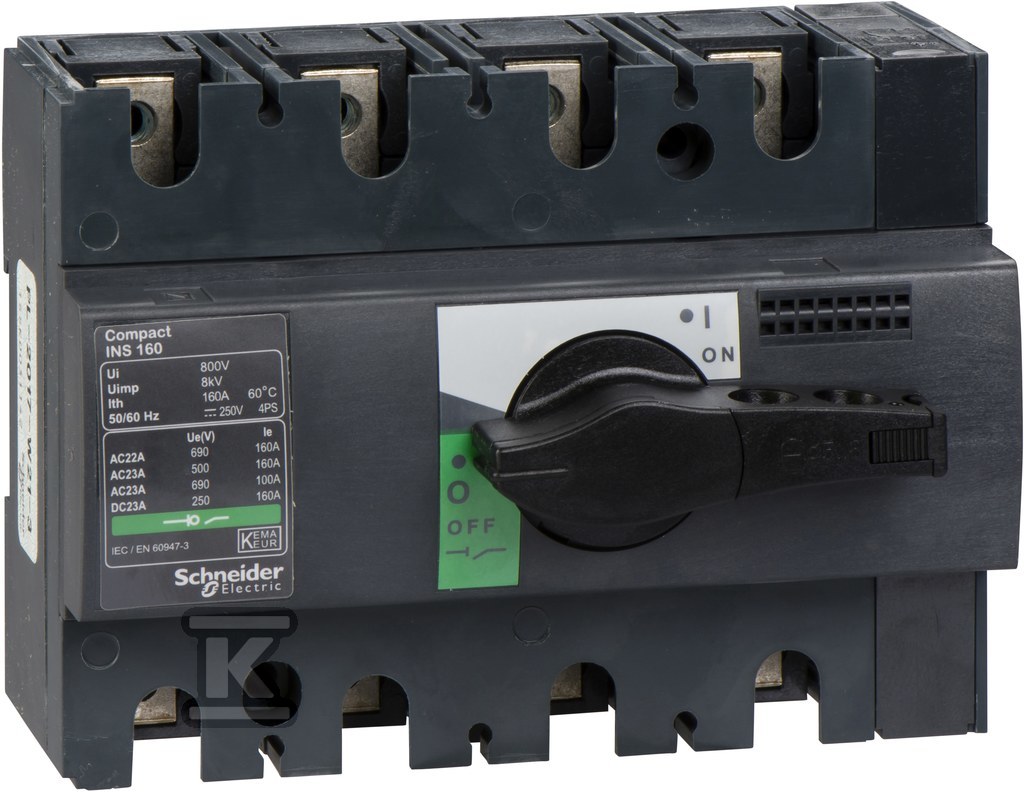

Disconnect switch INS160 160A 4P 28913

Compact Disconnector INS160 – reliable power disconnection

The Compact INS160 disconnector is a robust and efficient device designed for the safe disconnection of electrical circuits. A rated continuous current of 160A makes it ideal for use in industrial installations, commercial buildings and in power distribution boards. The device's design, with a longer rotating handle, ensures convenience and confident operation, and the locking mechanism increases safety.

The device is designed for front mounting centrally and in 4-hole distribution boards. A high degree of protection IP40 guarantees resistance to dust and ensures safe operation in various environmental conditions. Compact dimensions (85 mm high, 90 mm wide and 62.5 mm deep) make installation easy even in limited space.

Functionality and safety in one

The INS160 disconnector not only effectively disconnects the power supply, but also offers a range of additional functions and advantages:

• Versatility: Can be used in AC and DC circuits, with a rated voltage of up to 690 V.
• High short-circuit resistance: Rated conditional short-circuit current Iq is as high as 65 kA, providing effective protection of the installation in the event of a failure.
• Safety: The locking mechanism prevents accidental switching on of the disconnector after it has been switched off.
• Durability: Made of high-quality materials guarantees long life and reliability of the device.
• Expandability: Availability of two switchable auxiliary contacts allows integration with control and signaling systems.
• Use as a maintenance disconnector: Allows safe disconnection of a section of the installation during maintenance or modernization work.
• Contact position indicator: Allows easy visual control of the disconnector status (on/off).

The Compact INS160 disconnector is an investment in the safety and reliability of the electrical installation – both for professionals and end users. Its solid construction and advanced features make it the ideal choice for demanding applications.
